Overview

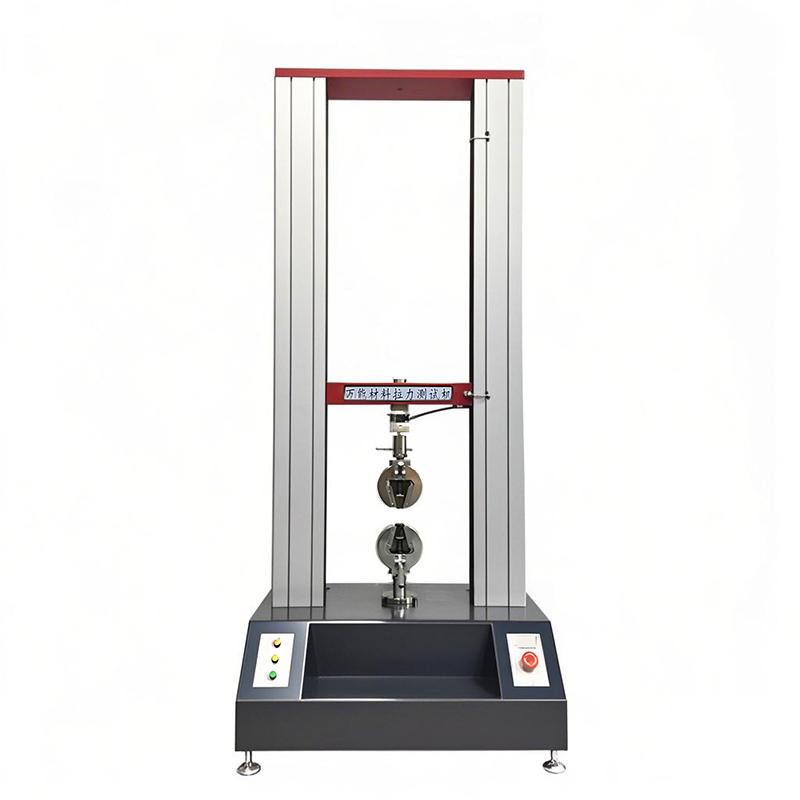

Lugong STS100K Double Arm Universal Testing Machine is suitable for measuring the mechanical properties and related physical parameters of various materials under stretching, compression, bending, shearing, tearing, disbonding, puncture and other states. It can perform stretching, compression, three-point bending, four-point bending, shearing, tearing, disbonding, finished shoe puncture, carton holding pressure, foam cyclic compression, spring tension and compression and various dynamic and static cyclic tests, and can test and provide data according to GB, ISO, DIN, ASTM, JIS and other domestic and international relevant standards.
Features
1. Mechanical process structure: The main frame adopts a base, two columns and two precision ball screws to form a gate-type floor-to-ceiling frame structure, and the transmission loading system adopts a servo motor and a synchronous toothed belt deceleration device to drive the high-precision ball screw to rotate and drive the moving beam to achieve loading. It has the characteristics of beautiful appearance, good Stability, large rigidity, high control accuracy, high work efficiency, low noise, energy saving and environmental protection.
2. Control and measurement system: user rights hierarchical management mode, powerful test management function, powerful data and Linear dispersion analysis function, convenient report editing, test unit can be arbitrarily set according to needs, multiple protection mechanisms, test data reminder storage to avoid data loss, multi-language one-click switching, using USB or serial communication, stable and reliable data transmission, strong anti-interference ability.
Principle
The testing machine drives the high-precision ball screw to rotate through the servo motor and the synchronous toothed belt reducer, and then drives the moving beam to apply tensile and compression loads to the sample, so as to measure the mechanical properties of the material. Control system collects real-time force value, deformation and displacement data, and processes and analyzes them.
Applications
Material mechanical performance test, tensile test, compression test, bending test, shear test, tear test, disbonding test, finished shoe puncture test, carton holding pressure test, foam cycle compression test, spring tension and compression test, dynamic and static cycle test
Standards
GB、ISO、DIN、ASTM、JIS
Steps
1. Set test parameters and units according to test requirements.
2. Install the specimen between the moving beam and the fixture.
3. Start the servo motor and drive the moving beam through the Control system to apply the load.
4. Real-time monitoring of force values, deformation, and displacement data.
5. After completing the test, the system automatically stores the data and generates a report.
6. Analyze data and Linear dispersion to evaluate material performance.
Notice
• Make sure the power supply is 220 +/- 10% VAC, Frequency 50Hz to avoid equipment damage.
• Check whether the main frame and transmission system are stable before operation to prevent accidents.
• Adjust the effective stretch travel or compression travel according to the sample size to ensure that the test range is appropriate.
• Regularly calibrate the force value and deformation measurement system to ensure the accuracy class of 0.5.
• Use multiple protection mechanisms to avoid overload or data loss.
• During data transmission, USB or serial communication is preferred to ensure stability and reliability.
• Pay attention to safety during operation and avoid touching moving parts when moving at high speed.
• When storing test data, use the reminder function to prevent accidental loss.
