Overview

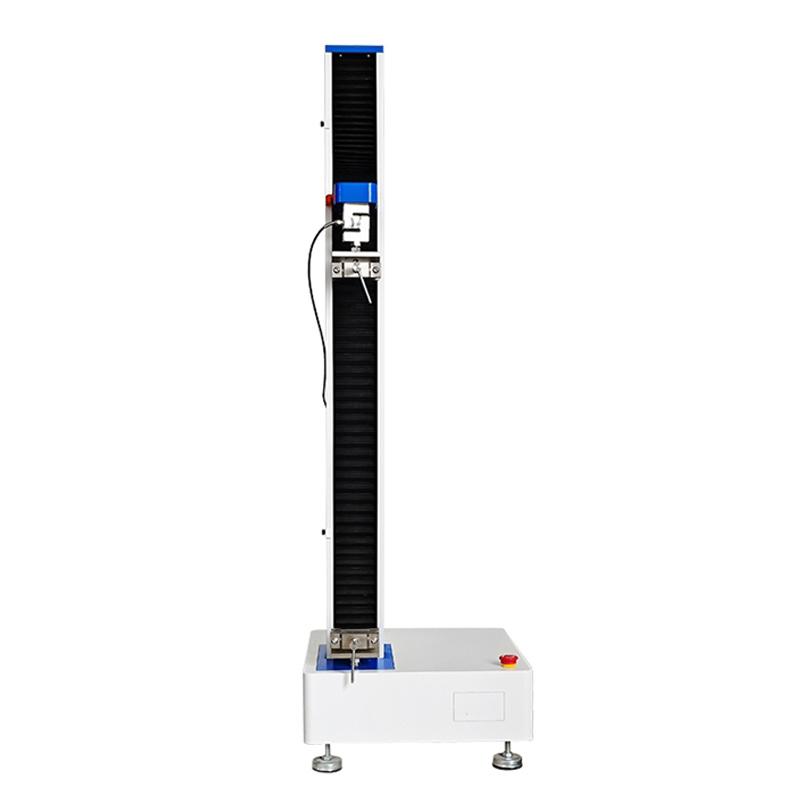

Lugong STD5000H Single Arm Universal Testing Machine is suitable for measuring the mechanical properties and related physical parameters of various materials under stretching, compression, bending, shearing, tearing, disbonding, puncture and other states. It can perform stretching, compression, three-point bending, four-point bending, shearing, tearing, disbonding, finished shoe puncture, carton holding pressure, foam cycle compression, spring tension and compression and various dynamic and static cycle tests, and can test and provide data according to GB, ISO, DIN, ASTM, JIS and other domestic and international relevant standards.
Features
1. Mechanical process structure: The main frame consists of a base, a column and a precision ball screw to form a Floor-Standing structure; the transmission loading system adopts a servo motor, a planetary gear reducer and a synchronous toothed belt reducer to drive the high-precision ball screw to rotate and drive the moving beam to achieve loading. Beautiful shape, Stability, rigidity, high control accuracy, high work efficiency, low noise, energy saving and environmental protection.
2. Control and measurement system: user rights hierarchical management mode, powerful test management function, powerful data and Linear dispersion analysis function, convenient report editing, test unit can be arbitrarily set according to needs, multiple protection mechanisms, test data reminder storage to avoid accidental loss, multi-language one-click switching, using USB or serial communication, stable and reliable data transmission, strong anti-interference ability.
Principle
The main frame mainly consists of a base, a column and a precision ball screw to form a Floor-Standing structure; the drive loading system adopts a servo motor, a planetary gear reducer and a synchronous toothed belt reducer to drive the high-precision ball screw to rotate and then drive the moving beam to achieve loading. The control and measurement system ensures the accuracy and Reliability of the test through functions such as user rights classification management, test Data storage and analysis.
Applications
Material tensile test, material compression test, bending test, shear test, tear test, disbonding test, puncture test, finished shoe puncture test, carton holding pressure test, foam cycle compression test, spring tension and compression test, dynamic and static cycle test
Standards
GB、ISO、DIN、ASTM、JIS
Steps
1. Set up the test unit according to the test requirements.
2. Select the communication method (USB or serial port) to connect the device.
3. Start the servo motor and drive loading system to drive the moving beam for loading.
4. Carry out tensile, compression, bending, shearing, tearing, disbonding, puncture and other tests.
5. Use control and measurement systems to manage test data and analyze Linear dispersion.
6. Store test data to avoid accidental loss.
Notice
• Ensure that the power supply is single phase 220 +/- 10% VAC, Frequency 50Hz, Power 1.5kW.
• Check the Main Frame and Driveline Stability before use.
• Avoid operating under conditions exceeding the maximum test force of 5000N.
• Periodic calibrated force value Indication Error and Deformation Indication Error.
• Stability and anti-interference of data transmission.
• When customizing effective stretching or compression Travel according to user request, it needs to be confirmed in advance.
