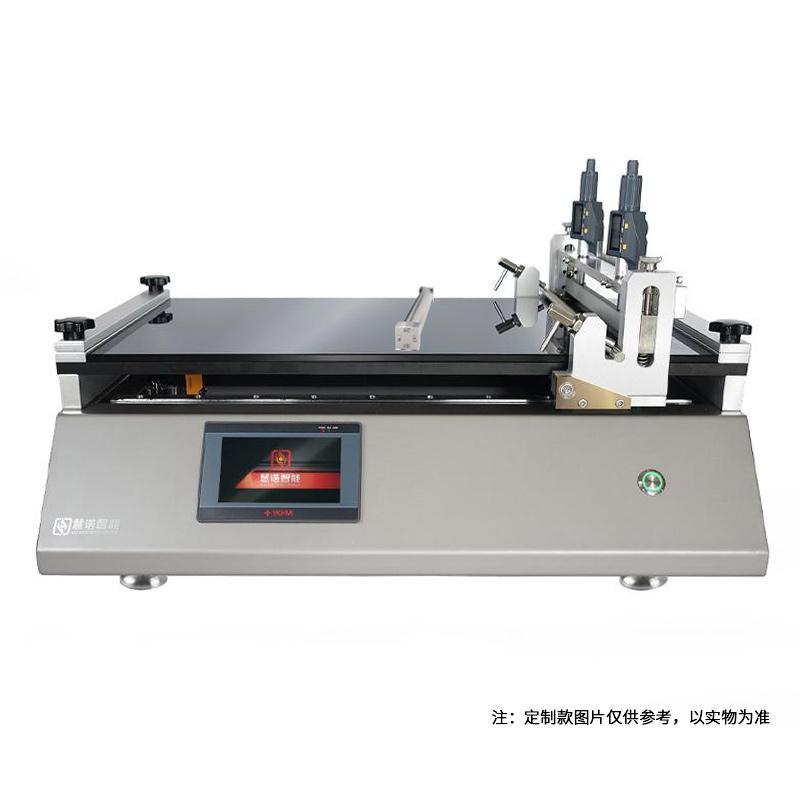

HuiNuo TM 2000/02 Automatic Film Applicator Flap Blade Coating Head High Accuracy film

Name: HuiNuo TM 2000/02 Automatic Film Applicator Flap Blade Coating Head High Accuracy film
Brand: HuiNuo
SKU: NB049243
Price: 2941.0 USD
Availability: PreOrder

$ 2941.00Ex works

Adopt clamshell type Blade Coating head design, easy to clean; coating speed 1~ 300mm/s stepless speed regulation, Spreader accuracy up to +/- 0.003mm, to meet the laboratory High Accuracy film needs.

Model

TM2000/02

Get Quote

Category : Automatic Film Applicator

Brand : HuiNuo

SKU : NB049243

Service :The delivery and service By NBCLab.Com

Overview

Automatic Film Applicator is a device for intermediate coating film in laboratories. It replaces manual film and automatically films to improve the accuracy and efficiency of film. This Film Applicator is a Drawdown blade type Automatic film applicator with adjustable Blade Coating. The innovative clamshell Drawdown blade head design greatly improves the cleaning efficiency and is easy to clean. It has speed control and application length adjustment functions. It is suitable for laboratory High Accuracy automatic film. Moulding proofing is carried out in laboratories such as university research institutes, New material, lithium battery, glue, Resin, etc.

Features

1. Glass countertop is 3c certified national standard genuine all tempered Glass plate, gold crystal original sheet, heat resistance 600 ℃, scratch resistance 2. Big brand differential regulator, high film thickness control accuracy 3. Clamped Blade Coating Head for Easy Cleaning 4. Touchscreen control panel, easy to operate 5. Free adjustment of application length and Spreader speed

Principle

The Working Principle of Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and the Spreader parameters.

Applications

Coatings, inks, paints, Stocks, Lithium batteries, Pressure sensitive adhesives, Resins, glues, polymer materials, pharmaceuticals and other film samples

Steps

1. Prepare the substrate (e.g. Glass, cardboard, fabric) and fix it to the fixture 2. Set application length and Spreader speed via Touchscreen 3. Drawdown blade thickness to desired film thickness 4. Start the device for automatic filming 5. Drawdown blade for cleaning after Spreader is finished

Notice

• Make sure that the power supply of the equipment meets the requirements of 100V~ 220V/50~ 60HZ before use • Drawdown blades and Glass countertops before Spreader • When adjusting the film thickness, pay attention to the accuracy control within the range of +/- 0.003mm • Drawdown blade cleaning with clamshell design to improve efficiency • Optional functions such as heating, Vacuum chuck need to be configured on demand

coating method
Blade Coating
Spreader head
Adjustable thickness drawdown blade + 4-sided Applicator
coating speed
1~ 300mm/s stepless speed regulation (can be customized)
Substrate clamping method
fixture
Coating table material
Glass plate
Coating table Size
640*430mm
Coating Size
400*300mm
Blade Coating Thickness Range
0~ 10Mm (clamshell design is easy to clean)
4-Sided Applicator Specifications
The thickness is customized according to customer requirements, and the effective width is customized according to customer substrate Size
Drawdown blade material
Die steel
Blade Coating Width
300mm
Blade Coating accuracy
±0.003mm
Power
400w
display screen
Color LCD Touchscreen
Operating language
Chinese (can be customized in English)
Host power supply
100V~220V/50~60HZ
Dimension
Subject to the actual product
optional feature
Heating, Vacuum chuck

[Q] For high-precision automatic coating of lithium battery slurry in the lab, what do you recommend?

We recommend the blade-type automatic coater because it uses a differential regulator to control film thickness, achieving an accuracy of up to ±0.003mm, making it suitable for materials like lithium battery slurries that require precise coating thickness. The coating speed is continuously adjustable from 1-300mm/s, allowing flexible adaptation to the rheological properties of different slurries.

[Q] In a new materials laboratory, we often need to apply glue on glass substrates for sample preparation. What should we do if cleaning the equipment is too troublesome?

It is recommended to choose a coating machine with a flip-type blade head for easy cleaning. Its blade head can be quickly opened, allowing direct rinsing of residual glue or resin, saving time and effort. The glass tabletop is heat-resistant and scratch-resistant, making it also suitable for cleaning after glue coating.

[Q] I'm looking to purchase a film applicator that allows for both speed adjustment and coating length control. What other practical features should I consider?

Recommend models with touch screens that are easy to operate and allow free adjustment of coating speed and length. If required for experiments, optional heating or vacuum adsorption functions are available—heating accelerates coating curing, while vacuum adsorption securely holds paper or film substrates for a smoother coating process.
