Overview

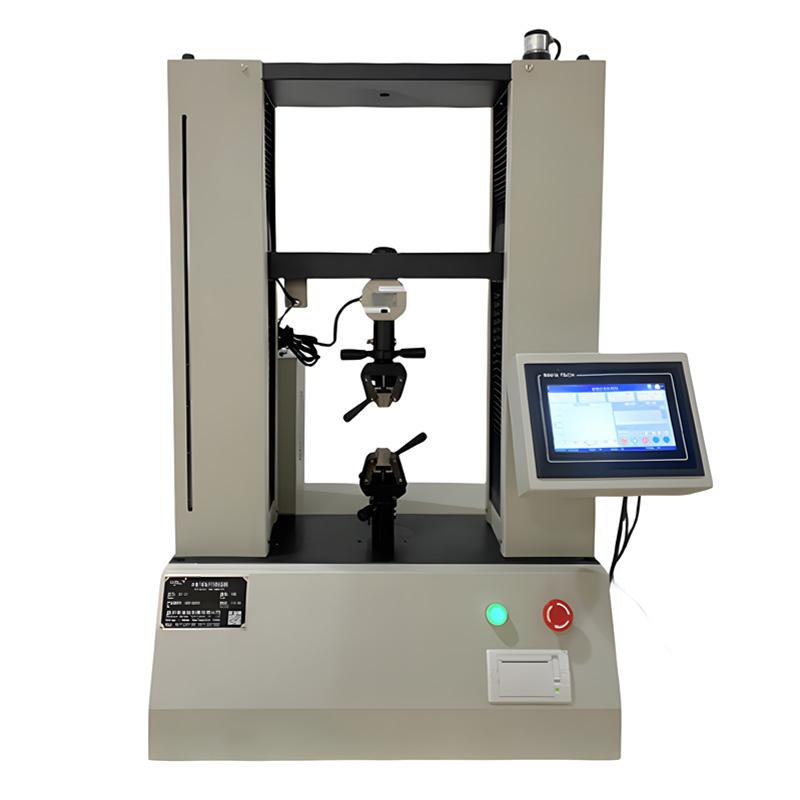

The HBO XY-2T electronic universal testing machine is an economical and practical model. It uses high-strength light bars to fix the upper beam and countertop to form a high-rigidity portal frame structure, and is driven by a stepper motor to realize the test loading process. The equipment is mainly used for metal, Non-metallic and composite mechanical properties testing. It has a precise automatic control and data collection system, which can automatically calculate and display the maximum bearing tensile pressure, tensile and compressive strength, elongation compression deformation, elongation and other parameters, and supports result query and printing.
Features
1.7-Inch touch display screen, friendly human-machine interaction interface, simple and easy to use operation, one-click start test
2. Support 6 force value units (N, kgf, lbf, gf, kN, tf) and 3 displacement units (mm, cm, in)
3. Graduation can be set freely, force value and displacement can be set up to 5 decimal places
4. The running speed can be set, and the starting speed, Test speed and reset speed can be set separately to improve the test efficiency and accuracy
5. The sample deformation and loading force can be set to support delayed holding, automatic return or stop after reaching the preset force
6. Real-time display of displacement, deformation, running speed, real-time force value, peak force value and test time
7. Provide a variety of test modes, including universal tensile test, universal compression test, general force holding test, three/four point bending test, disbonding performance test, tear performance test, waterproof coil test and electrical casing test
8. Force holding type test and pressure type test with PID speed force value double loop control
9. Can test 10 samples, automatically calculate the average, MAX Maximum, MIN Minimum and other results
10. The test results have a variety of coordinates Linear dispersion display: force value - time, force value - deformation, deformation - time
11. After the test is completed, the data bar can be automatically saved, up to 10,000 pieces of data can be saved
12. The machine comes with a micro printer that can print test results
13. Comes with overload protection, limit protection, emergency shutdown device and leakage protection device
Principle
The equipment uses high-intensity light bars to fix the upper beam and work surface, forming a high-rigidity portal frame structure. Stepping motor drives the beam up and down through the transmission mechanism to realize the test loading process. The precision automatic control and data collection system realizes the full digitalization adjustment. Material technical indicators are detected in the tensile compression test. After the test, the microcomputer controller automatically calculates and displays the results and Linear dispersion.
Applications
Metal, Adhesive, Pipe, Profile, Aerospace, Petrochemicals, Waterproofing Membrane, Wire and cable, Spinning & weaving, Fiber, Rubber, Ceramics, Food, Pharmaceutical Encasement, Geotextile, Film, Wood, paper and other manufacturing industries, product mass supervision departments at all levels, teaching demonstrations in colleges and universities
Standards
GB/T16491-1996、GBT232-2010、GBT6569-2006、GB/T 12833-2006、GBT 16491-2008、JJG139-1999、JJG 157-1995、GB/T 2611-2007
Steps
1. Set test parameters, including force value unit, displacement unit, Graduation, running speed, sample deformation and loading force
2. Select test mode, such as universal tensile test or compression test
3. Start testing with one click, the device automatically loads and displays data in real time
4. After the test, the microcomputer controller automatically calculates and displays the results with Linear dispersion
5. Query and print the test results, and the data is automatically saved
Notice
• Make sure the power supply is AC 220V 50HZ before use to avoid voltage instability affecting the operation of the equipment
• Pay attention to overload protection and limit protection functions during operation to prevent overload damage to the equipment
• Use emergency shutdown devices in emergencies to ensure safety
• Regularly check the leakage protection device to ensure the safety of electricity use
• Graduation and speed are within the allowable range when setting parameters to ensure Test accuracy
• Save and print data in time after the test is completed to avoid data loss
