Overview

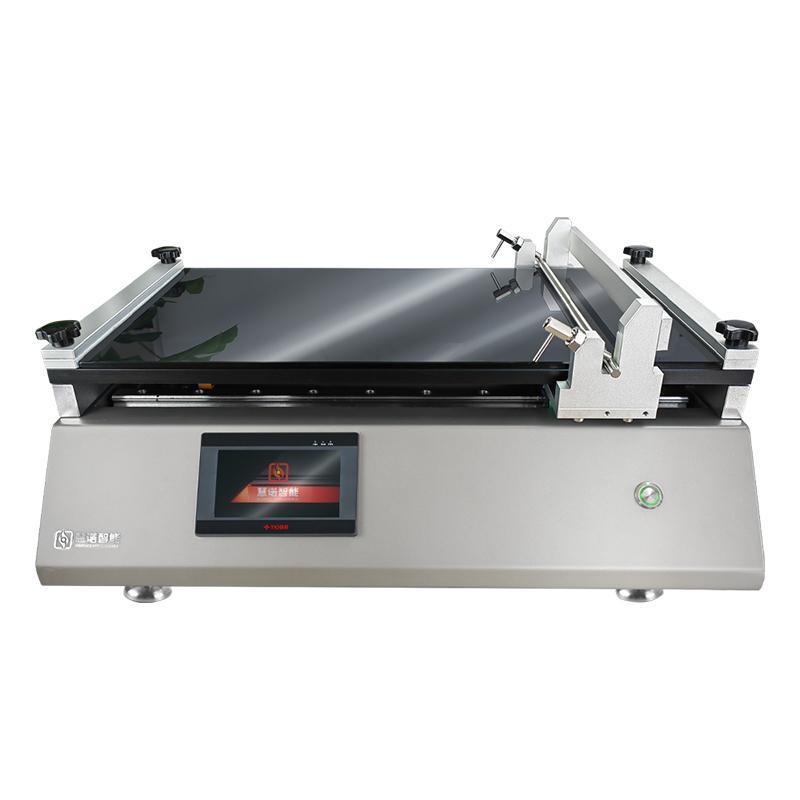

Automatic Film Applicator is a device used for intermediate coating film in laboratory. It replaces manual film and automatically films to improve the accuracy and efficiency of film. The Working Principle of Experimental Automatic Film Applicator is to uniformly Spreader the sample on the substrate by controlling the Spreader head and Spreader parameters to form the desired film. This Film Applicator is a basic bar Coater, using a new bar Installation method, with speed control and application length adjustment function, suitable for high Accuracy automatic film in the laboratory, Moulding proofing in the research institutes of universities, New materials, lithium batteries and other laboratories.
Features
1. Glass countertop is 3C certified national standard genuine full tempered Glass plate, high Smoothness, gold crystal original sheet, heat resistance 600 ℃, scratch resistance
2. High Accuracy film applicator, original imported bar film uniform accuracy
3. Touchscreen control panel, easy to operate
4. Free adjustment of application length and Spreader speed
Principle
Automatic Film Applicator uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and Spreader parameters. High Accuracy automatic film is realized by adjusting the coating speed and application length using the bar coating method.
Applications
Coatings, inks, paints, Stocks, Lithium batteries, Pressure sensitive adhesives, Polymer materials, pharmaceuticals and other film samples
Steps
1. Fix the substrate on the Spreader table
2. Set application length and Spreader speed parameters through Touchscreen
3. Start the device for automatic filming
4. Remove the sample after the film is completed
Notice
• Glass countertop heat resistance 600 ℃, avoid overtemperature use
• The coating speed can be stepless in the range of 1~ 300mm/s
• The substrate is fixed with a fixture to ensure firmness
• The coating table material can be selected from aluminum alloy or Glass table, which needs to be confirmed with customer service
• The effective coating area is 1000 * 500mm, which can be customized
• film thickness controlled by bar with accuracy of +/- 0.003mm
• Host power supply is 100V~ 220V/50~ 60HZ
• Optional features include drawdown blade, heating, Vacuum chuck
