Overview

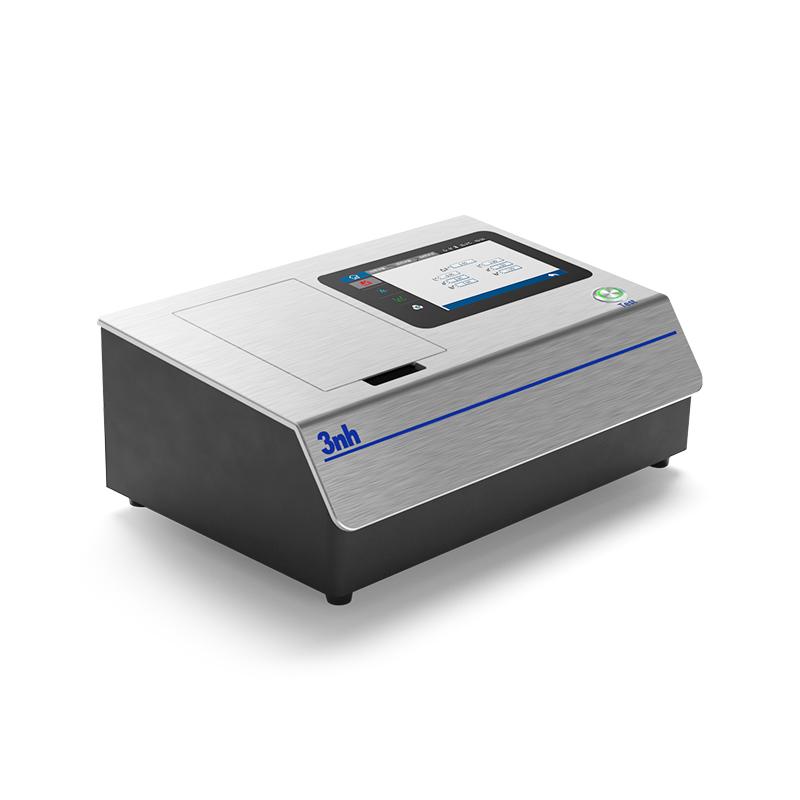

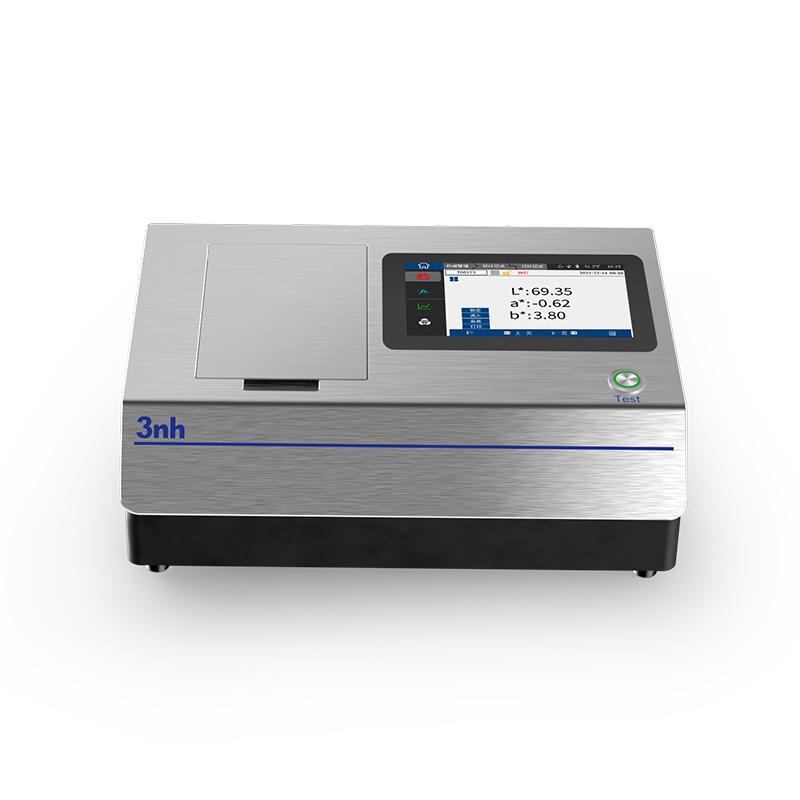

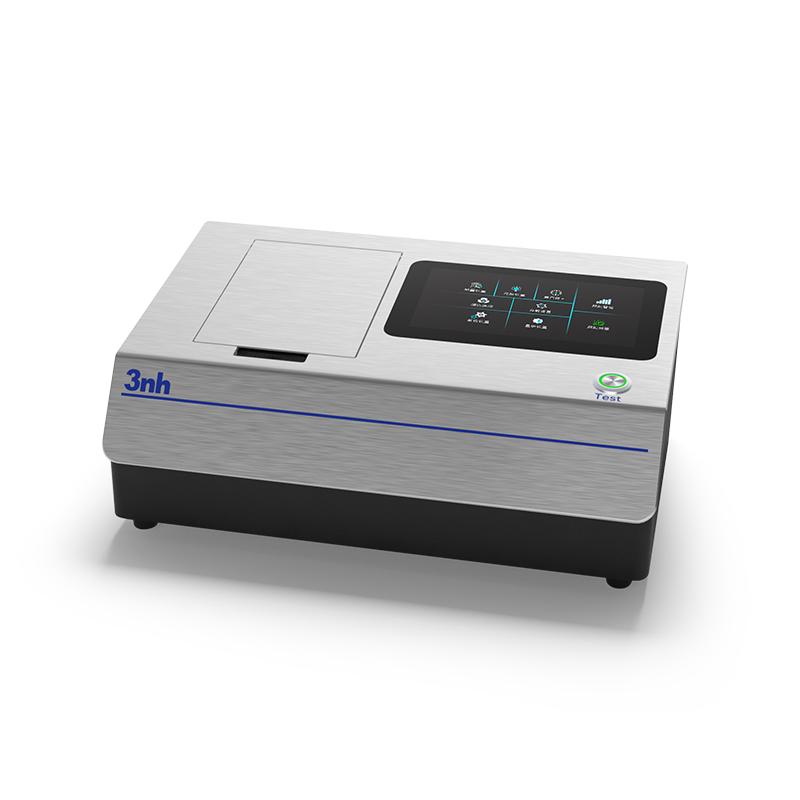

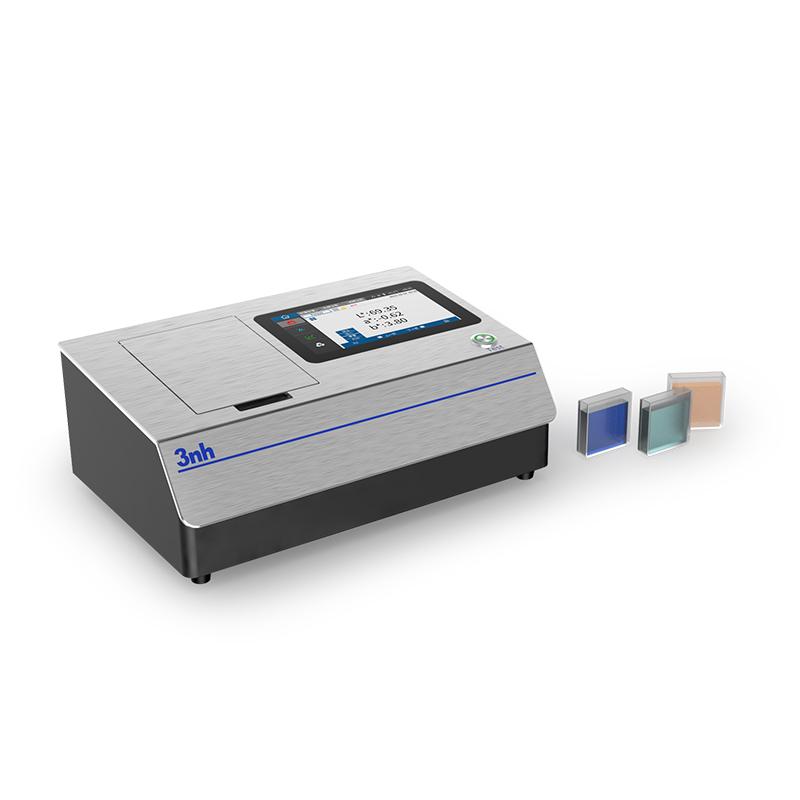

The Liquid Colorimeter TS4010 is a High Accuracy Color Analyzer designed for liquid chroma measurement. With a D/0 Optical inspection architecture, full-band LED Illuminant and high-performance test system, it can quickly and accurately capture the transmitted color of the sample and deeply analyze the subtle chroma properties.
Features
1. D/0 geometrical optics provide comprehensive chroma analysis
2. Combined Full Light spectrum LED Illuminant covering 360~ 780nm Wavelength range
3. High Performance Dual Array Sensors Ensure Measurement speed and accuracy
4. Repeatability Spectroscopic transmittance within 0.05%, chromatic value within 0.015
5. Inter-instrument Agreement within 0.25 to ensure measurement conformity of multiple devices
6. Intelligent zero-point calibrated technology reduces external interference
7. Multivariate Illuminant Analog Built-in Standard light source
8. Rich chroma indicators include transmittance, oil color scale, platinum and cobalt index, etc
9.7-Inch True Color Capacitive Touchscreen Display Light spectrum, color difference value and other indicators
10. PC-side quality management software generates test reports
Principle
The instrument adopts D/0 geometrical optics structure, illuminates the sample by combining full-light spectrum LED Illuminant, receives the transmitted light signal by plane grating spectroscopy and silicon photodiode array Sensor, and performs spectroscopic measurement in the 360-780nm Wavelength range to analyze the chroma properties of the sample.
Applications
Solvent, Petroleum, Industrial Oil, Cosmetics, Food and Beverage, Glass Processing, Plastic Processing, Film, Display Processing, Encasement Industry, Liquid Liquid Liquid Analysis
Standards
GB/T 3978、GB/T 18833、GB 2893、ASTM D1003/1044、CIE No.15、ASTM E308、DIN5033 Teil7
Steps
1. Equipment preheating correction
2. Smart zero point calibrating
3. Select Measurement mode and Illuminant condition

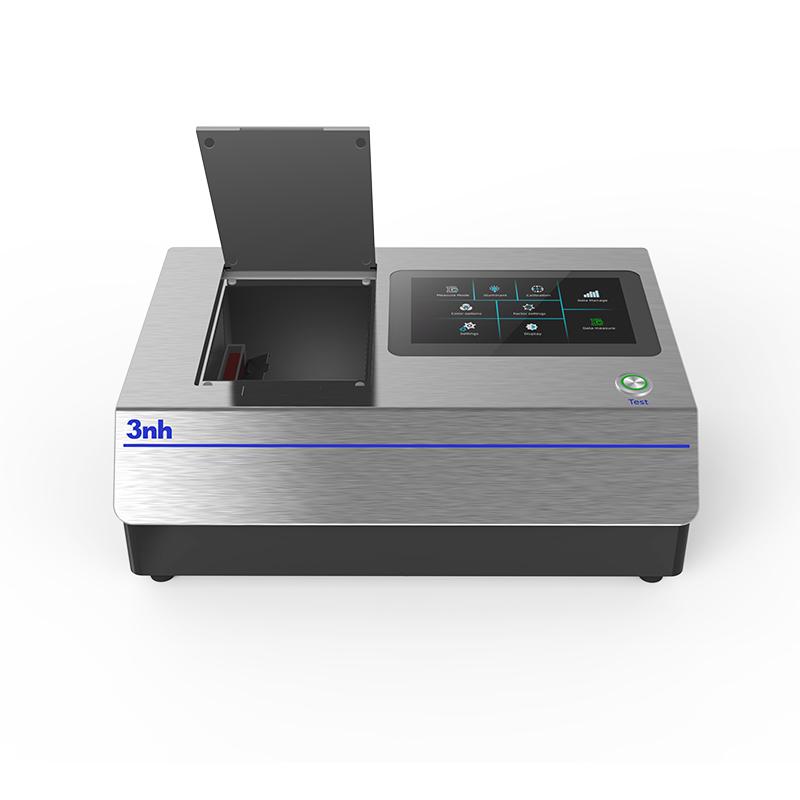

4. Place the sample to start the measurement
5. View Light spectrum, color difference and other measurement results
6. Generate test reports through PC-side software
Notice
• Temperature range 0~ 40 ℃
• Storage Temperature range -20~ 50 ℃
• Power supply with DC 24V, 3A Power Adapter
• Make sure the equipment is fully preheated before measurement
Periodically calibrated to ensure measurement accuracy
Avoid use and storage in extreme temperature environments
