Overview

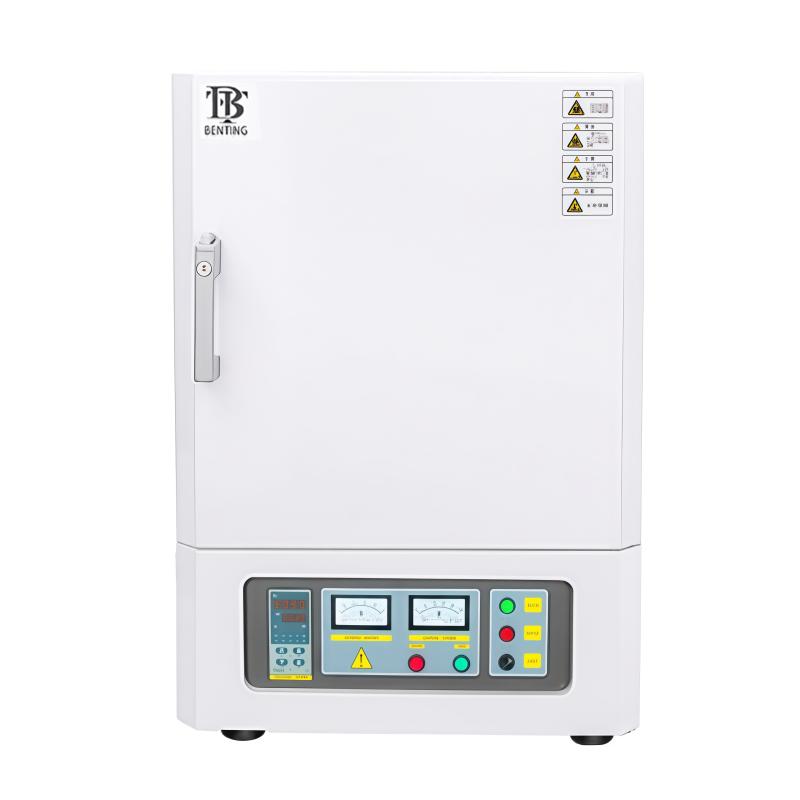

CSX2-9-17T high temperature box type resistance furnace is a 12L, Rated power 9kW heater, using high quality silicon molybdenum rod heating element, the fastest heating speed of 10 ℃/min, commonly used temperature 1550 ℃, the highest temperature 1700 ℃. Temperature control mode is 30 intelligent program control, with B-type Thermocouple, thermostatic accuracy +/- 1 ℃, equipped with high purity aluminum oxide polycrystalline fiber Curing Oven, good thermal insulation performance and energy saving, furnace size 300 * 200 * 200mm, with rapid temperature rise and fall, temperature field Balance, temperature control stability, easy operation, low energy consumption.
Features
1. Integrated design, light and compact structure; 2. Three-sided heating to ensure uniform temperature in the furnace; 3. The furnace adopts lightweight ceramic fiber forming and heat preservation, and the energy saving effect is remarkable; 4. The furnace body is beautiful in shape, double-decked Air-Cooled structure inside and outside, and the surface of the furnace shell is kept at a low temperature; 5. Parallel side open furnace door, hot end away from operation; 6. Open the door and power off, delay the restart to ensure safety; 7. With over-current protection, broken couple prompt, over-temperature alarm function; 8. Optional furnace rack and control software to realize remote monitoring and program Linear dispersion modification.
Principle
The resistance furnace generates heat through a silicon molybdenum rod heating element, uses a 30-stage intelligent program to control the temperature, and uses a B-type Thermocouple to accurately measure the temperature to ensure thermostatic accuracy of +/- 1 ° C. The high-purity aluminum oxide polycrystalline fiber Curing Oven chamber provides excellent thermal insulation performance, and the side-opening furnace door design is easy to operate. At the same time, the inner and outer double-decked Air-Cooled structures keep the furnace shell low temperature to ensure safe operation.
Applications
High temperature experiments, materials research, heat treatment, laboratory applications
