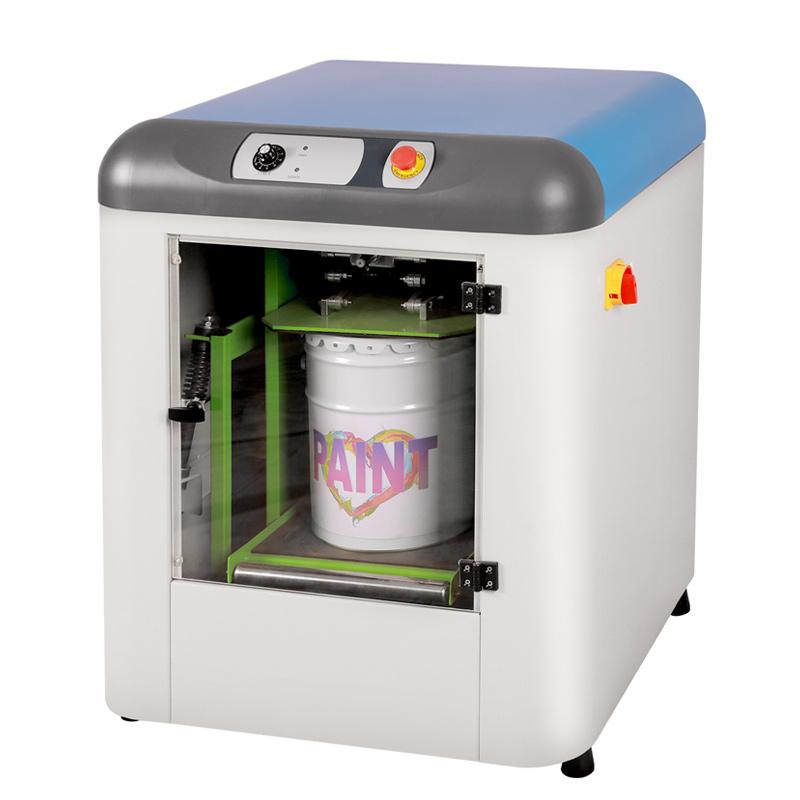

Overview
JY-40A manual clamping oscillator is an efficient and practical paint mixing equipment, focusing on solving the problem of barrel paint mixing. With strong and stable oscillation technology, it can fully mix 0.5 to 20 liters of different specifications of barrel paint to ensure uniform dispersion of paint ingredients and effectively improve paint quality. It is suitable for paint production enterprises, laboratories and other scenarios. Whether it is daily production and processing or coating preparation in scientific research experiments, it can provide users with stable and reliable mixing solutions.
Features
1. High-speed and thorough mixing, the fastest can mix the paint in 30 seconds
2. Can mix 0.5 to 20 liters of barrel paint
3. Low noise during operation and with a certain safety bar

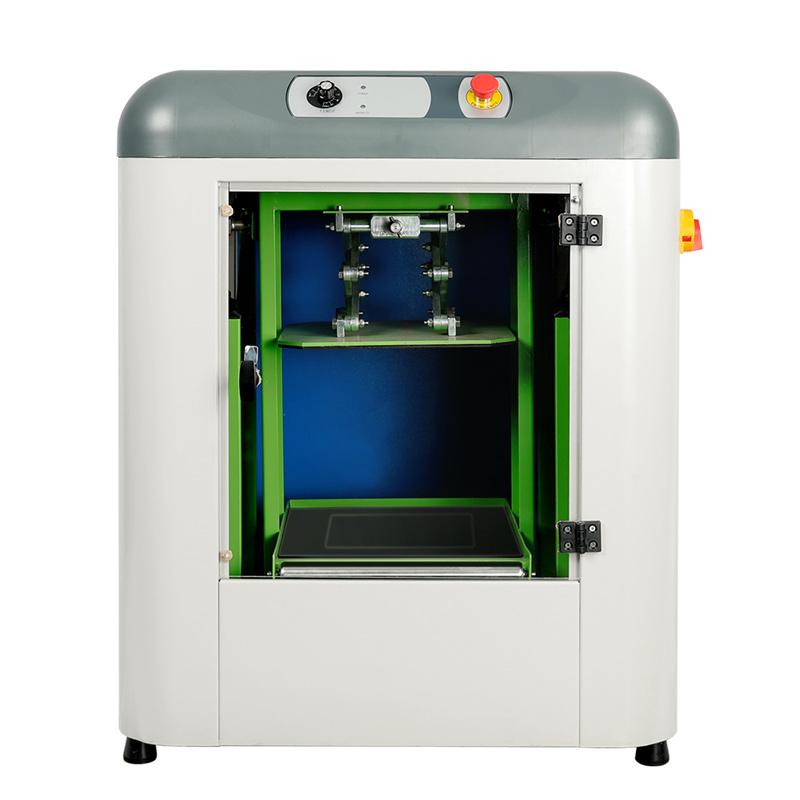

4. With a large door and a forward-projecting drum, it is conducive to the loading of the barrel
5. Security interlock to prevent the door from being opened while the machine is running

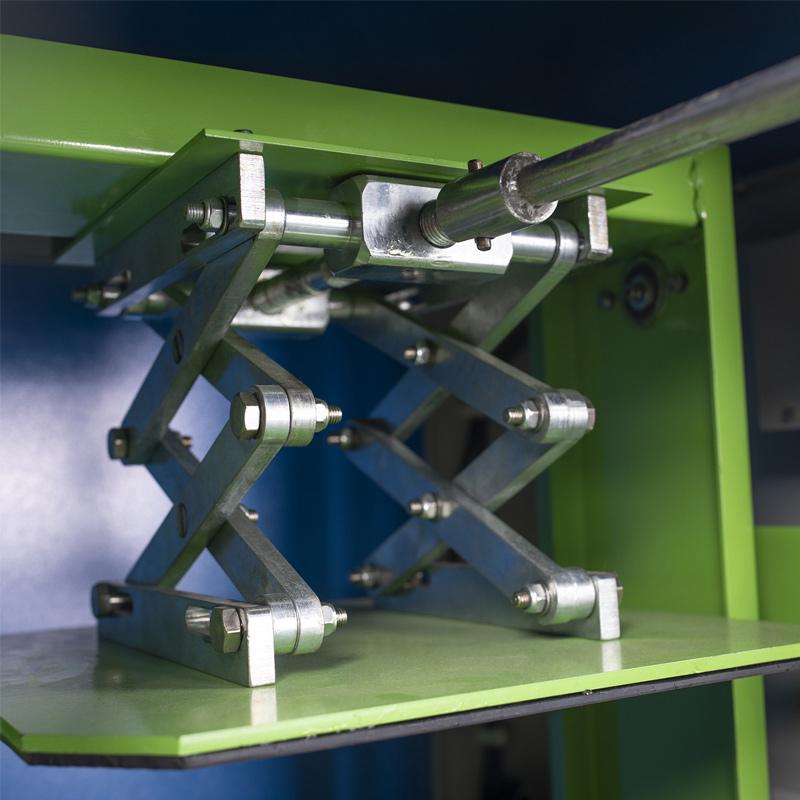

6. The height of the whole barrel can be adjusted according to the Appearance and size of the barrel
7. Timing function: 0-15 minutes (can be done for 2 hours according to customer needs)
Principle
Through the strong and stable oscillation technology implementation of coating mixing, the vibration Frequency is 710 times/min, which can fully oscillate the barrel coating to ensure that the coating composition is evenly dispersed.
Applications
Paint manufacturers and laboratories
Steps
1. Adjust the height of the barrel to adapt to different specifications of paint barrels
2. Load the paint barrel onto the roll barrel that juts forward
3. Close the machine door and the safety interlock device starts automatically
4. Set the timing time (0-15 minutes or extend to 2 hours as needed)
5. Start the machine for mixing operation
Notice
• The door is safely interlocked when the machine is running, do not force it to open
• Pay attention to the height adjustment of the barrel when loading the paint barrel to ensure that it matches the machine
• Pay attention to the protective function of the safety bar when operating
• Timing settings need to be reasonably selected according to actual mixing requirements
• Operating voltage is 220V 50Hz before use
