Overview

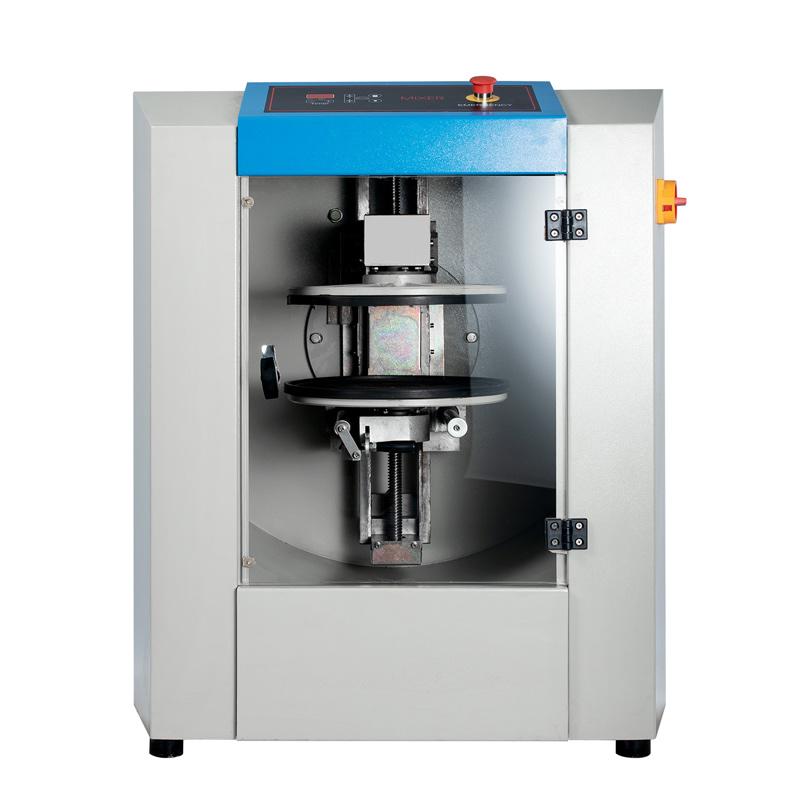

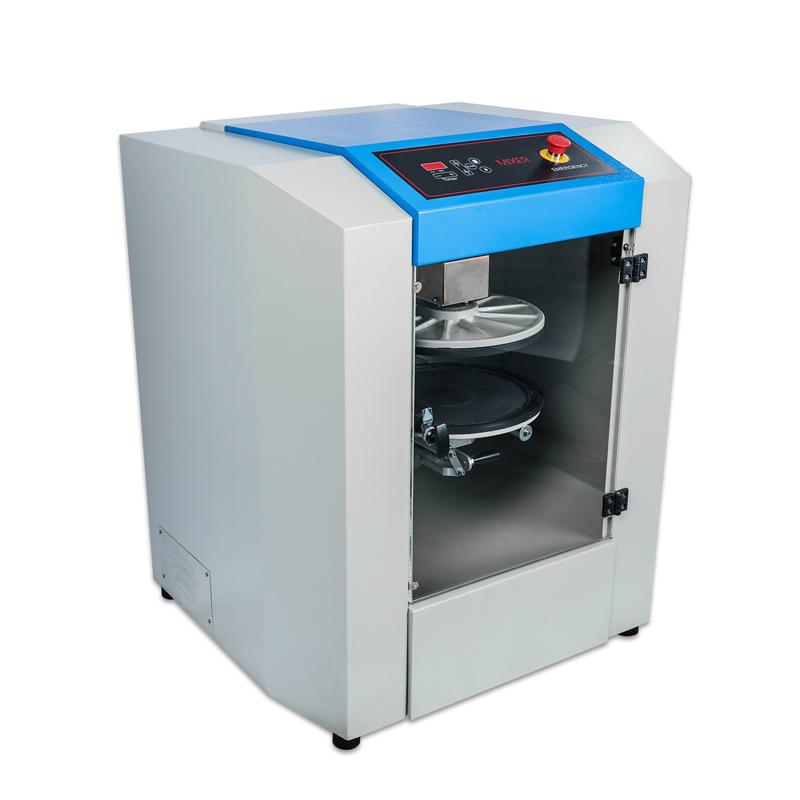

JY-30A3 automatic forward and reverse swirl/spin oil mixer is an intelligent device specially designed for efficient oil mixing. It supports 110V/220V power supply, 750W Power drive, and is suitable for 1-20L, 1-35kg capacity. The maximum barrel diameter is 320mm, and the barrel height is 50-390mm. It realizes fast and uniform mixing with 720 ° forward and reverse two-way swirl/spin design. The automatic intelligent clamping system ensures stable clamping and does not hurt the barrel body. Advanced frequency conversion speed regulation technology automatically recognizes the barrel specification and matches the appropriate Rotation speed. It is equipped with Chinese (English) digital tube display. The operation is clear and easy to understand. It has both door opening automatic shutdown protection and easy removal of the upper cover. Safety and maintenance are guaranteed.
Features
1.720 ° positive and negative two-way swirl/spin function, solves the drawbacks of incomplete and time-consuming one-way swirl/spin mixing, and realizes fast and uniform mixing

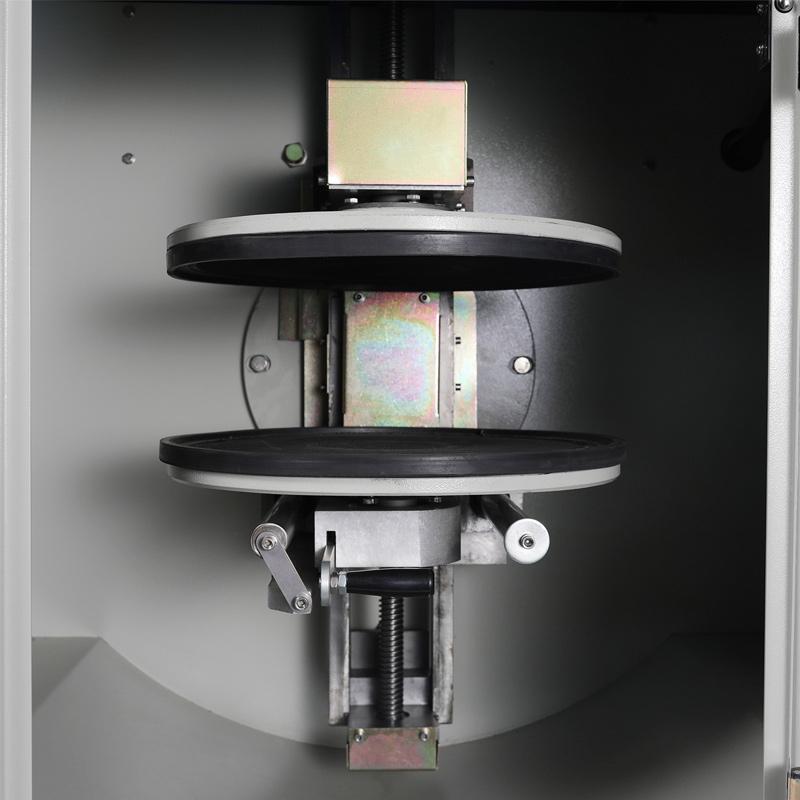

2. Fully automatic clamping and loosening of the Encasement bucket, intelligently control the clamping force according to the size of the Encasement bucket to ensure that the clamped Encasement bucket is stable and intact
3. Advanced frequency conversion speed regulation technology, intelligently identify the size of the Encasement barrel and automatically control the corresponding Rotation speed to ensure excellent mixing effect
4. Clear digital tube Chinese (English) text display, making the operation process clear at a glance
5. Movable lower chuck makes loading and unloading Encasement bucket easy and convenient
6. Equipped with rollers, easy to move indoors, saving time and effort
7. Automatic shutdown protection device for door opening, safe and reliable
8. The upper cover can be removed, which is convenient for maintenance and replacement of accessories
Principle
The equipment realizes full mixing of materials through 720 ° positive and negative two-way swirl/spin design, the automatic intelligent clamping system precisely applies force according to the size of the barrel to ensure stable clamping, and the advanced frequency conversion speed regulation technology automatically recognizes the specifications of the Encasement barrel and matches the appropriate Rotation speed to achieve the best mixing effect.
Standards
Power standard: 110V, 220V, +/- 10%, 50/60HZ
Steps
1. Place the Encasement bucket on a removable lower chuck
2. The equipment automatically recognizes the size of the Encasement bucket and intelligently controls the clamping force
3. Set the mixing time (2-30 minutes) through the Chinese (English) text display of the digital tube.
4. Rotation speed of 720 ° positive and negative two-way swirl/spin mixing
5. Automatically release Encasement bucket after mixing
6. Automatic equipment shutdown protection when opening the door
Notice
• Ensure that the power supply meets 110V or 220V, +/- 10%, 50/60HZ requirements
• Encasement barrel specifications should be within the maximum barrel diameter of 320mm and barrel height of 50-390mm
• Mixed weight does not exceed 35kg, capacity does not exceed 20L
• Pay attention to the automatic shutdown protection function when opening the door during operation
• Regularly remove the upper cover for maintenance and replacement of accessories
• Use the roller design when moving the device to avoid direct dragging
