$ 19196.00Ex works
Adopt bar and drawdown blade composite coating method, bar accuracy +/- 0.005mm, drawdown blade thickness range 0.1-10 mm, Vacuum Area 1280 * 960mm, coating speed 1~ 300mm/s stepless speed regulation, suitable for wide voltage input.
Category : Automatic Film Applicator
Brand : BoLaiDe
SKU : NB049355
Service :The delivery and service By NBCLab.Com

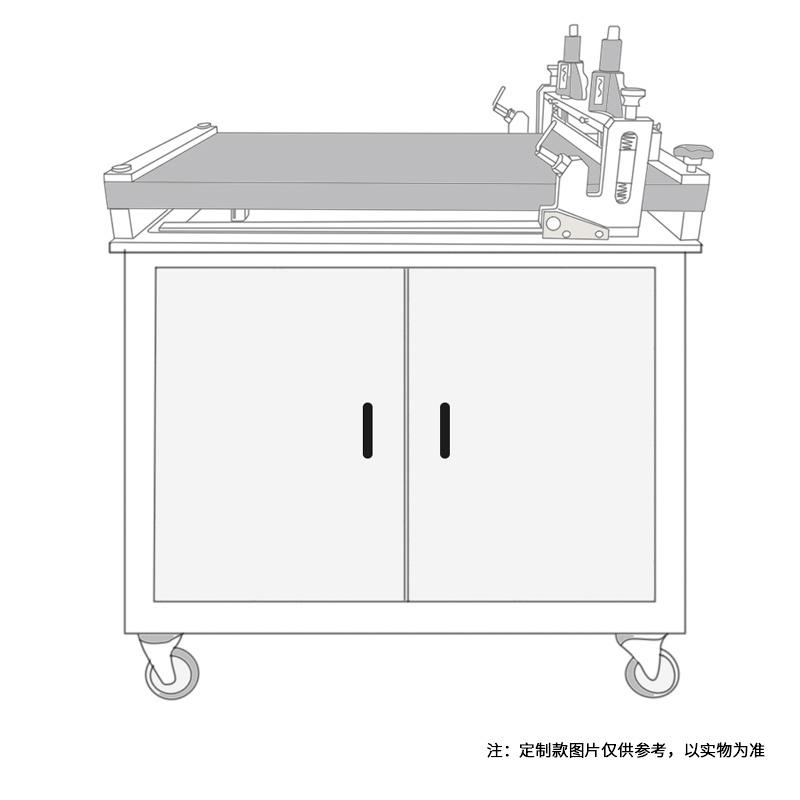

RVC-1000/D drawdown Bar & blade Vacuum chuck Coater (Floor-Standing) is a factory direct supply equipment, specially designed for efficient and accurate Spreader operations. The equipment has an effective coating area of 1200 * 1000mm, adopts the composite coating method of bar + Drawdown blade, combined with the substrate fixing mode of Vacuum chuck + fixture, and is suitable for Spreader production of various materials. It has a stepless speed regulation function of 1~ 300mm/s, which can flexibly adjust the coating speed according to different process requirements, and is widely used in scientific research experiments and industrial production scenarios.
1. Fusion bar and Drawdown blade dual coating method, meyer rod coating accuracy up to +/- 0.005mm, can achieve micron-level fine coating; Blade Coating thickness range 0.1-10 mm, accuracy is also maintained +/- 0.005mm, flip design is easy to clean quickly, taking into account High Accuracy and High Efficiency. 2. Using Vacuum chuck and fixture combination of substrate fixing mode, Vacuum Area 1280 * 960mm, with carefully designed Vacuum aperture diameter and hole spacing, firmly fixed substrate, prevent displacement during Spreader process, ensure Spreader mass stability. 3. Key parameters such as coating speed, effective coating area, and Vacuum Area can be customized. 100V-220V/50-60HZ wide voltage input adapts to different power environments. Operating language supports Chinese and English switching to fully meet diverse production needs. 4. The coating table is made of SUS630 and abrasive steel, the frame table is chrome-plated with 45 #steel, and the outer shield is made of SUS304 stainless steel, which is resistant to corrosion and abrasion and prolongs the service life of the equipment. 5. Equipped with color LCD Touchscreen, Operating interface is simple and intuitive, lowering the threshold of operation, novice can also get started quickly, improve the convenience of production operation.
The equipment adopts the composite coating method of bar and Drawdown blade, combined with Vacuum chuck and fixture to fix the substrate. The vacuum pump absorbs the substrate through the vacuum hole to prevent displacement during the Spreader process; the bar and Drawdown blade perform precise Spreader according to the set parameters, and the coating speed is controlled by the stepless speed control system to achieve efficient and accurate coating operation.
Scientific research experiments, industrial production
1. Power on the device and select Operating language. 2. Place the substrate on the Spreader table and start the Vacuum chuck system to fix the substrate. 3. Select the bar or Blade Coating method as required, and set the Spreader thickness and rate parameters. 4. Start the Spreader program, and the device will automatically perform the Spreader operation. 5. After the Spreader is completed, turn off the Vacuum chuck, remove the substrate and perform cleaning maintenance.
• Power supply voltage meets equipment requirements (100V-220V/50-60HZ) before operation. • Regularly check the vacuum pump and coating table to keep it clean to prevent clogging. • Spreader process to avoid substrate displacement, ensure effective Vacuum chuck. • Clean the bar and Drawdown blade in time after use, and the clamshell design is easy to clean quickly. • The outer shield of the equipment is SUS304 stainless steel, which needs to be avoided from hard objects to maintain the Appearance.
Recommend the RVC-1000/D Wire Rod and Blade Vacuum Adsorption Coater. This equipment adopts a composite coating method combining wire rod and blade techniques, with wire rod coating precision reaching up to ±0.005 microns, making it suitable for experiments requiring high precision and uniform coatings, such as lithium battery separators. Its vacuum adsorption function securely fixes flexible substrates, preventing displacement during coating and ensuring the stability and repeatability of experimental results.
It can meet the requirements. The advantage of this machine lies in its high flexibility. For slurries of different viscosities and thickness requirements: thin coatings can be controlled at the micron level using high-precision wire rods; thick coatings (0.1-10mm) can be achieved with its blade function, and the flip cover design also facilitates cleaning. The coating speed can be adjusted continuously between 1-300 mm/s. You can freely adjust it according to the characteristics of the slurry to find the optimal process parameters, making it suitable for multi-process experimentation during the research and development phase.
