Overview

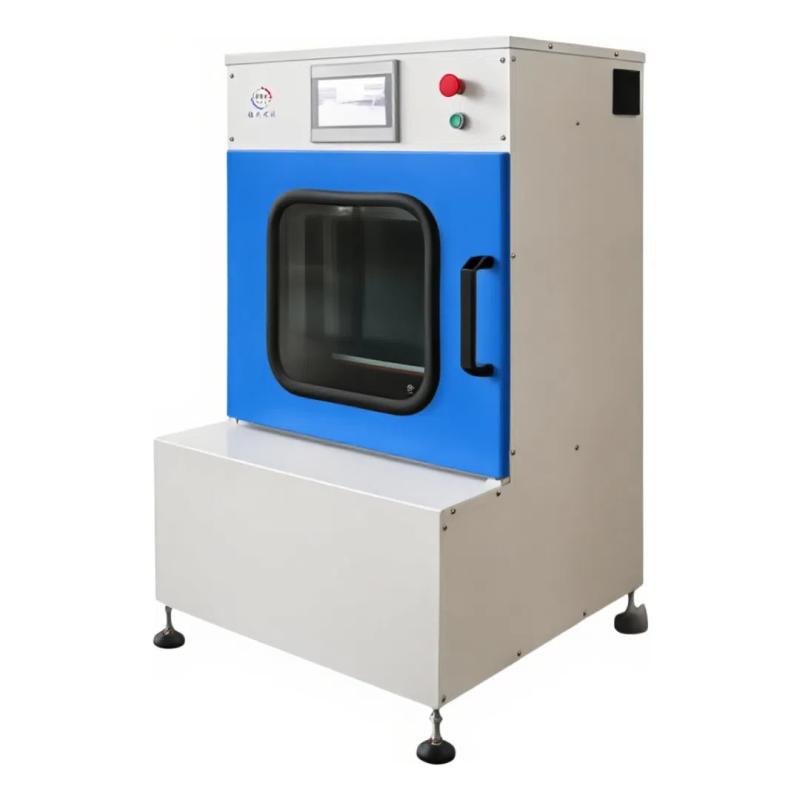

Xinlinte YJ200 high-efficiency oscillator is a device for dispersing and mixing liquid and solid powdery materials. It produces strong collision and shearing effects through high-speed dispersion discs to achieve rapid analysis and uniform mixing of materials, especially for accelerated dissolving of insoluble materials.
Features
1. A large number of samples can be dispersed under the same conditions, improving Test speed and ensuring reproducibility and repeatability.
2. The equipment moves along the elliptical trajectory according to geometry, the vibration range is 45mm without load, 32mm with full load, the vibration Frequency is adjustable about 660 + 40 times/minute, and the centrifugal force is 20 times the load.
3. Equipped with a chilling down device, composed of two low-pressure fans to ensure that the temperature of the sample container is 10 ° C higher than room temperature, and the system automatically adjusts the fan Power.
4. Completely enclosed container space, reduce noise and block Glass container burst or chemical leakage, avoid laboratory contamination, supplemented by transparent observation window.
5. Using the German SIEMENS PLC operation display system, the dispersion time can be preset, and the remaining time, total Working time, clamping time and vibration Frequency can be displayed.
6. Display the fault code during the operation of the equipment, making it easy to quickly determine the problem.
7. Easy to operate, automatic clamping after the sample container is placed, the chill down fan starts after 20 seconds, and automatically stops when the time arrives.
Principle
The dispersion disc turns two or more liquid and solid powdery materials up and down violently in the container at high speed, resulting in strong collision and shearing, destroying the aggregate, achieving the purpose of rapid analysis and uniform mixing, and accelerating the dissolution of insoluble materials.
Applications
Paints, inks
Steps
1. Place the sample container (glass bottle or plastic bottle) in the hole where the sample holder fits.
2. Close the sealing door.
3. Set the scatter time and chill down.
4. The equipment is automatically clamped and begins to disperse.
After 5.20 seconds, chill down the fan and start working.
6. After the time reaches the preset dispersion time, the device automatically stops.
Notice
• The number of samples depends on the size of the sample tank, with a maximum load of 30KG.
• Vibration Frequency adjustable range is 40-60Hz.
• The chill down system automatically adjusts the fan Power to maintain the temperature.
Equipment is equipped with an emergency brake button to ensure safety.
• Pay attention to the fault code during operation and deal with the problem in time.
