Overview

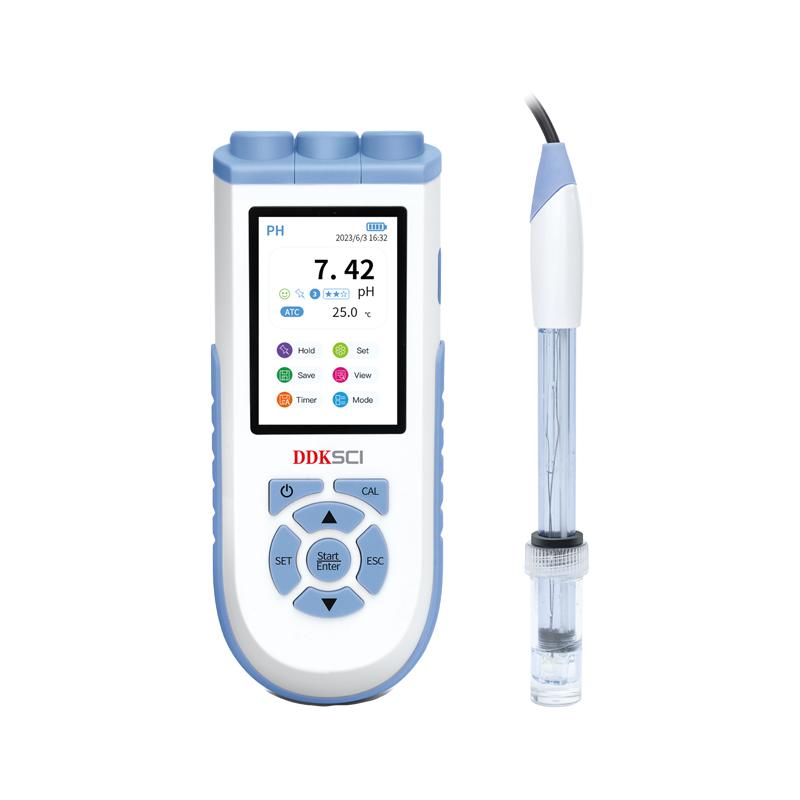

DDKSIC PH10 Portable pH Meter (color screen) is a powerful measuring instrument that can accurately measure pH, mV (ORP Electrode optional), ℃ and other parameters. Equipped with a 3.5-inch TFT LCD color screen and a new UI interface design, it provides a beautiful, clear and easy-to-operate navigation operation experience. It has an intelligent Operating system, super data management function and IP57 dust and waterproof rating, providing users with comprehensive and professional measurement solutions.
Features
1. Measurement parameters: pH, mV (ORP Electrode optional), ℃

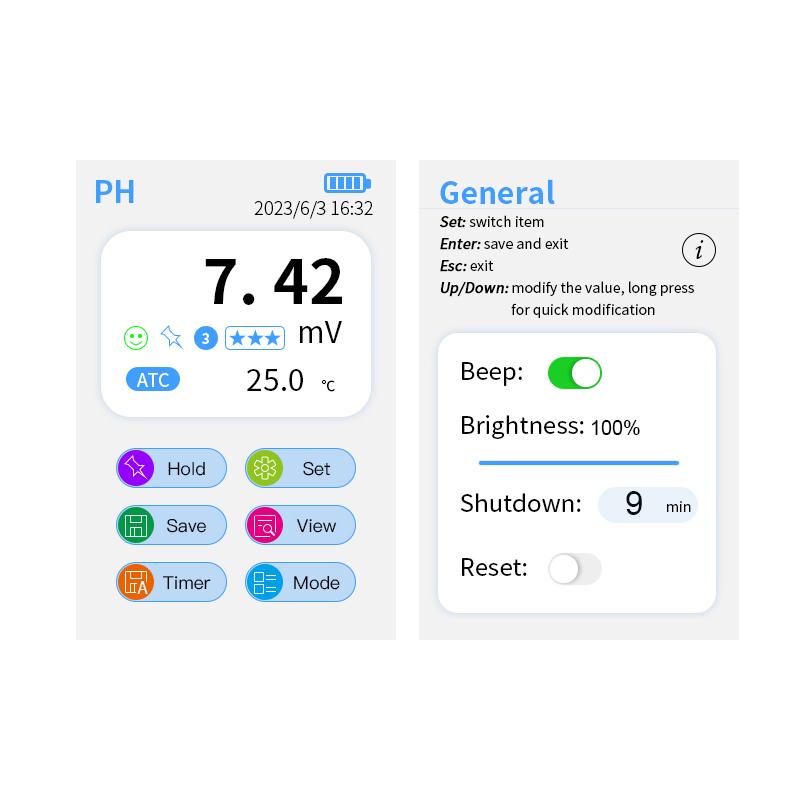

2.3.5-Inch TFT LCD color screen, beautiful, clear and easy to operate
3. New UI interface design, navigational operation experience
4. Intelligent Operating system with Electrode Management, Data Management, Parameter Setting and other functions
5. Super data management function, Maximum Data storage: 3000 groups
6. Measurement mode of interval timing can be set
7. Data locking function

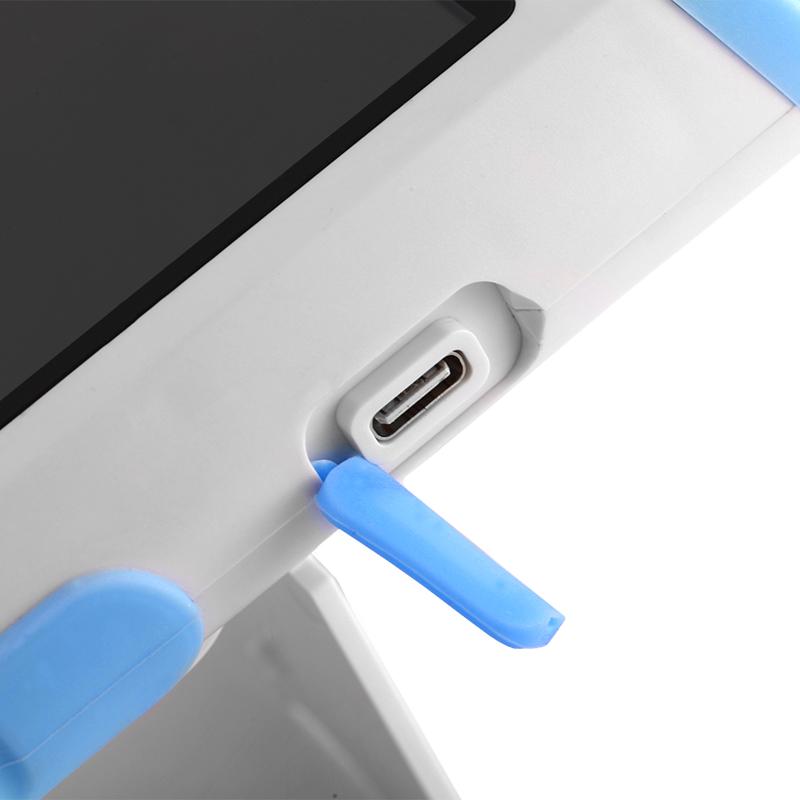

8. Charging interface: Type C, easy to use, in line with European Union standards
9. Rechargeable lithium batteries support low power management and power failure protection
10. Dustproof and waterproof grade: IP57
11. The PC-side software supporting the instrument can realize functions: operation behavior record, sample ID information, user classification management, equipment use management, Data analysis, etc
Principle
The Portable pH Meter detects the hydrogen ion concentration in the sample by Electrode, converts the chemical signal into an electrical signal, and displays the pH value, mV value (when ORP Electrode is optional) and temperature value after analysis by the internal processor. The intelligent system manages the measurement process, and the color screen displays the results in real time. The data can be stored and further analyzed by PC software.
Applications
Water quality testing, environment monitoring, laboratory analysis, industrial process control, food and beverage production, agricultural soil testing, education and research
Standards
European Union standards
Steps
1. Turn it on and check the battery level.
2. Select the appropriate Measurement mode (pH, mV or temperature)
3. Electrode calibrated (if required)
4. Electrode immersion in the sample to be tested
5. Wait for the reading to stabilize and record the data
6. Use data lock to save important measurement results

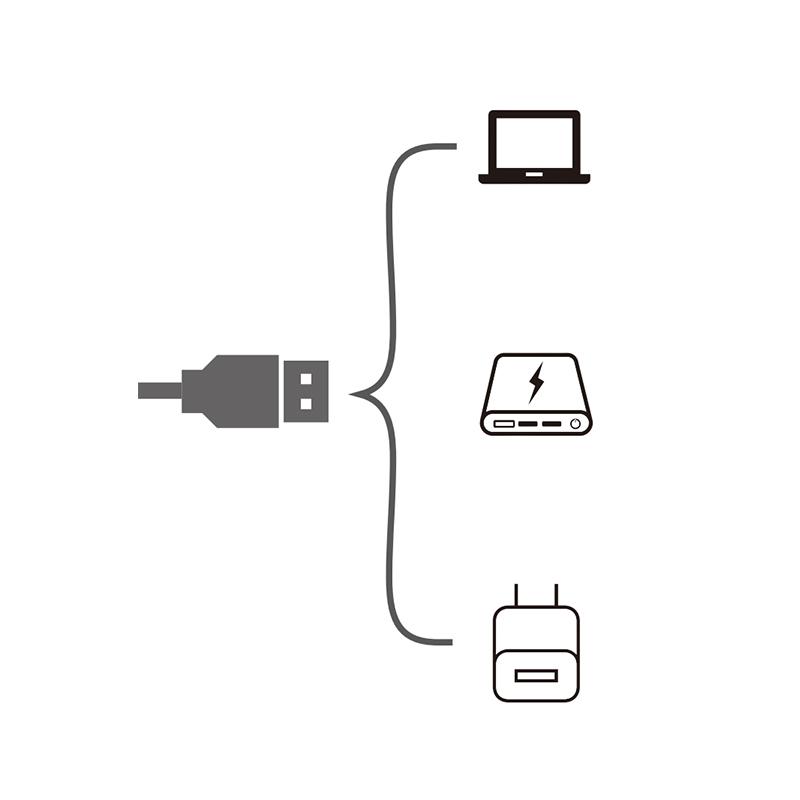

7. Charge via Type C interface
8. Connect PC-side software for data management and analysis
Notice
• Make sure Electrode is clean before use
Avoid prolonged use in extreme temperature environments
• Regularly calibrate instruments to ensure Measurement accuracy
• Please use a standard Type C charger when charging
• Note that the dustproof and waterproof rating is IP57, but avoid complete immersion in water
• Turn off the power when not in use for a long time to save power
• Please operate through the supporting PC software during data processing
