Overview

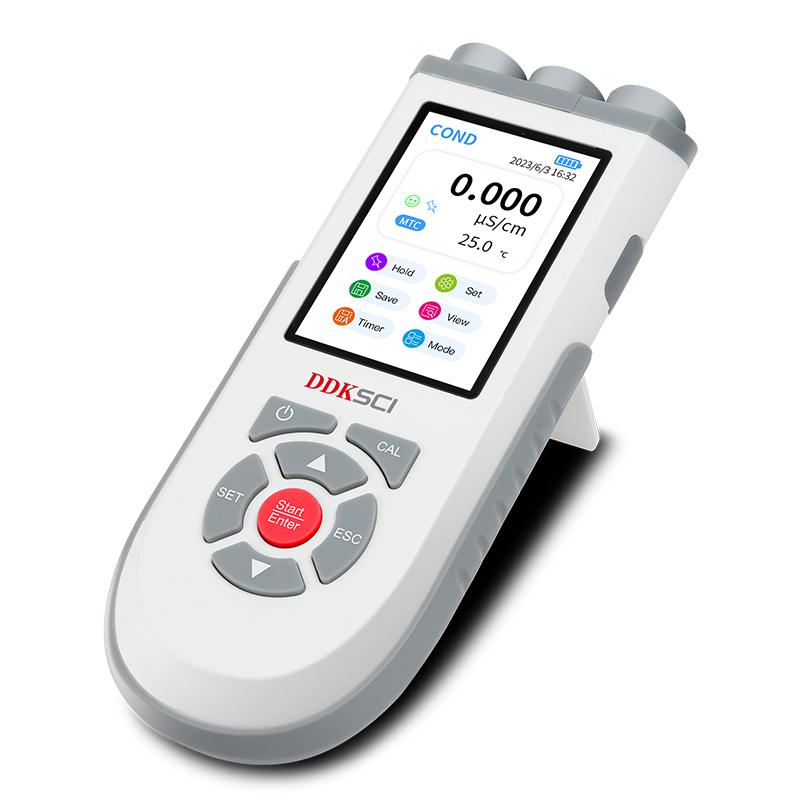

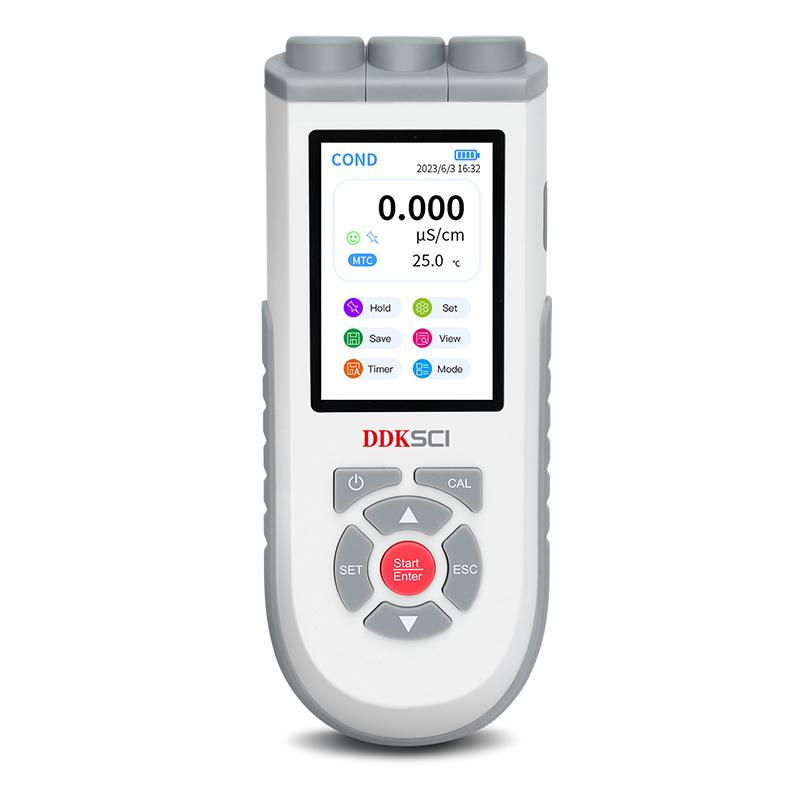

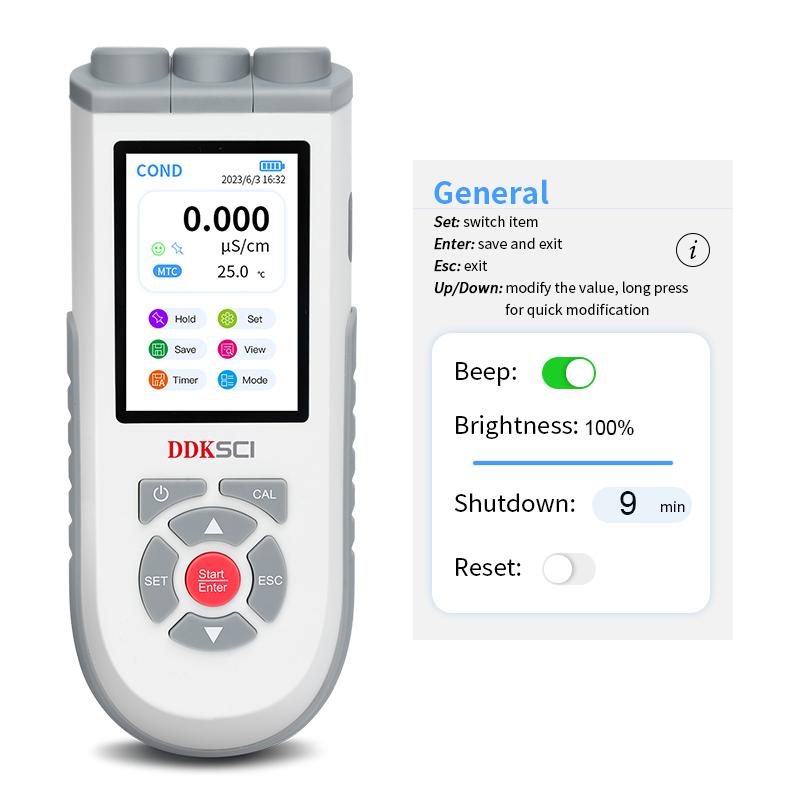

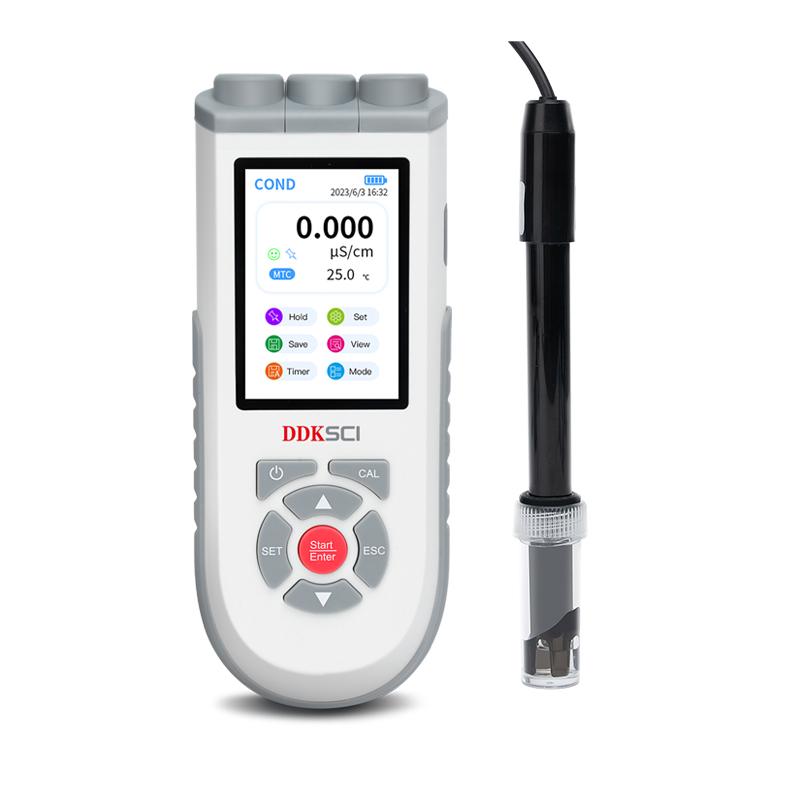

The EC10 Portable Conductivity Meter is a 0.5-level accuracy multi-function measuring instrument for the measurement of conductivity, resistivity, TDS, salinity and temperature parameters. Equipped with a 3.5-inch TFT color screen and a new UI interface, it supports navigation operation, integrates Electrode management, 3000 data storage, interval timing measurement and other functions, adopts Type C charging interface, dustproof and waterproof grade IP57, suitable for water quality monitoring and other scenarios.
Features
1. Can measure conductivity, resistivity, TDS, salinity, temperature parameters
2.3.5-Inch TFT LCD color screen, beautiful, clear and easy to operate
3. New UI interface design, navigational operation experience
4. Intelligent Operating system with Electrode Management, Data Management, Parameter Setting and other functions
5. Super data management function, maximum storage of 3000 sets of data
6. Data locking function
7. Electrode constant calibration, solution calibration
8. Electrode constant K optional
9. Manual/automatic temperature compensation, compensation temperature can be customized
10. Measurement mode of interval timing can be set
11. Type C charging interface, easy to use
12. Rechargeable lithium batteries support low power management and power outage protection
13. Dustproof and waterproof grade IP57

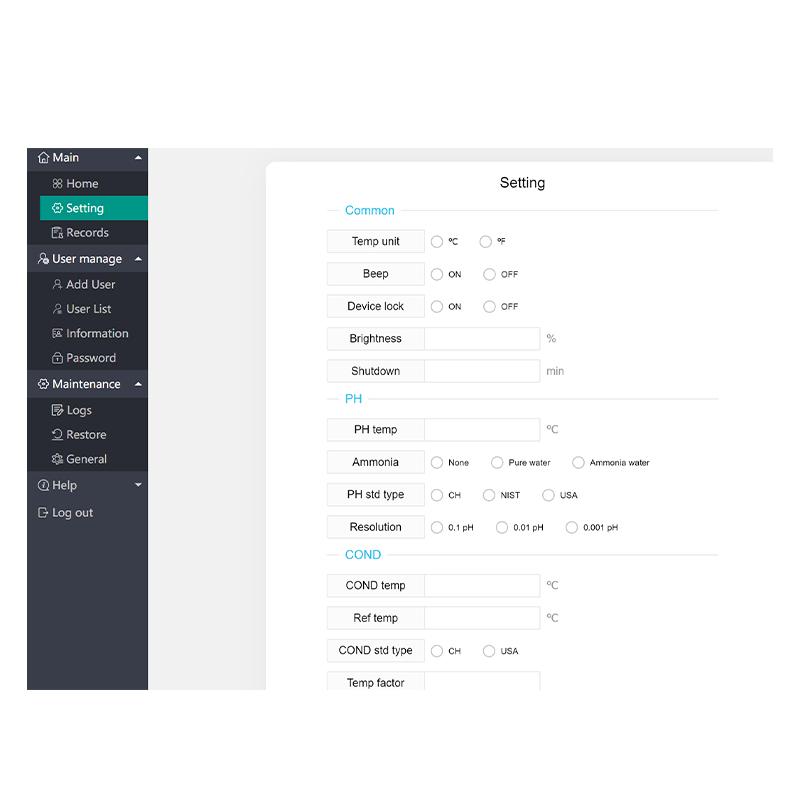

14. Supporting PC-side Software supports operation records, sample management and other functions
Principle
Conductivity detector of Electrode measurement solution converts conductivity into readable value, and automatically calculates resistivity, TDS, salinity and other related parameters. The system adopts intelligent processing algorithm to support Electrode constant calibration and temperature compensation to ensure Measurement accuracy.
Applications
water quality monitoring
Standards
European Union standards
Steps
1. Power on and select Measurement mode
2. Electrode constant and temperature compensation as required
3. Electrode immersion in the solution to be tested
4. Read the measurement data on the display
5. Optional data lock or store measurement results
6. Charge with Type C interface
Notice
• Please read the instructions carefully before use
• Electrode drying
• Avoid soaking the instrument in water for a long time
• Regularly calibrate instruments to ensure Measurement accuracy
• Please use the original charger when charging.
• Pay attention to dust and moisture when storing
