HuiNuo KTQ-600S Adjustable Preparation, Digital Adjustable Film Applicator Magnetic Blade Coating Width 600mm

Name: HuiNuo KTQ-600S Adjustable Preparation, Digital Adjustable Film Applicator Magnetic Blade Coating Width 600mm
Brand: HuiNuo
SKU: NB049414
Price: 1092.0 USD
Availability: PreOrder

$ 1092.00Ex works

Drawdown blade structure is easy to clean, Drawdown blade accuracy +/- 5μm, film thickness range of 0~ 5000μm adjustable, provide a variety of application width selection, lightweight wear and corrosion resistance.

Model

KTQ-600S

Get Quote

Category : Film Applicator

Brand : HuiNuo

SKU : NB049414

Service :The delivery and service By NBCLab.Com

Overview

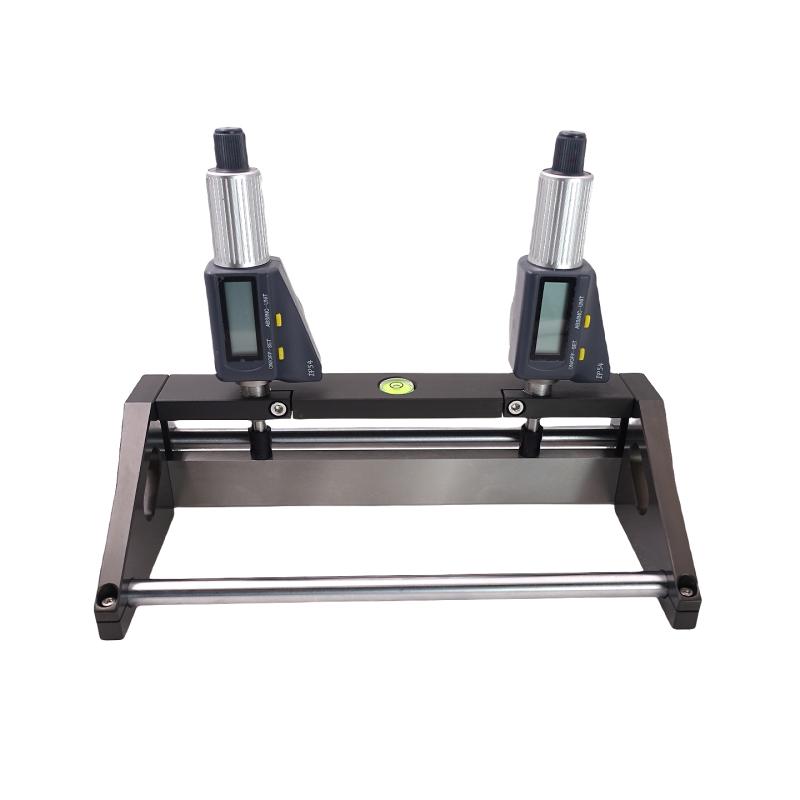

HuiNuo KTQ-600S adjustable fabricator (digital display) is a new generation of Drawdown blade removable film applicator. Drawdown blade design solves the cleaning problem of high viscosity and easy curing materials. The equipment provides 600mm application width to meet the needs of different application scenarios.

Features

1. Magnetic detachable Drawdown blade structure, easier to clean 2. Precise thickness adjustment with Qingliang differential head (digital display optional) 3. Drawdown blade High Hardness die steel material, hard aluminum oxide frame, lightweight and wear-resistant and corrosion-resistant 4, film thickness range 0~ 5000μm adjustable 5. Drawdown blade accuracy +/- 5μm Provide 600mm application width and support customization

Principle

The device is based on the principle of differential gap scraping. Drawdown blade can be adjusted to realize wet-film preparatory.

Applications

Coatings, inks R & D and Quality control, Lithium battery Electrode prepative, Optical inspection Film Spreader, Adhesive testing, Nanomaterials research

Steps

1. Install Magnetic Drawdown blade 2. Adjust the differential head to the required thickness 3. Perform scraping operation 4. Drawdown blade for cleaning

Notice

• Check whether the Drawdown blade is firmly installed before use • Drawdown blades from colliding with hard objects to prevent damage • Drawdown blade damage when cleaning • Adjust operating parameters according to material viscosity

Type
adjustable
wet film thickness
0~5000μm
application width
600mm
Drawdown blade accuracy
±5μm
Rack material process
Aluminum hard oxidation
Drawdown blade material process
Die steel
Size
310 * 100 * 50Mm (excluding differential head)
Net weight
1280g
differential head
green quantity
Drawdown blade straightness
±2μm
Differential Head Graduation
10μm

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
