Overview

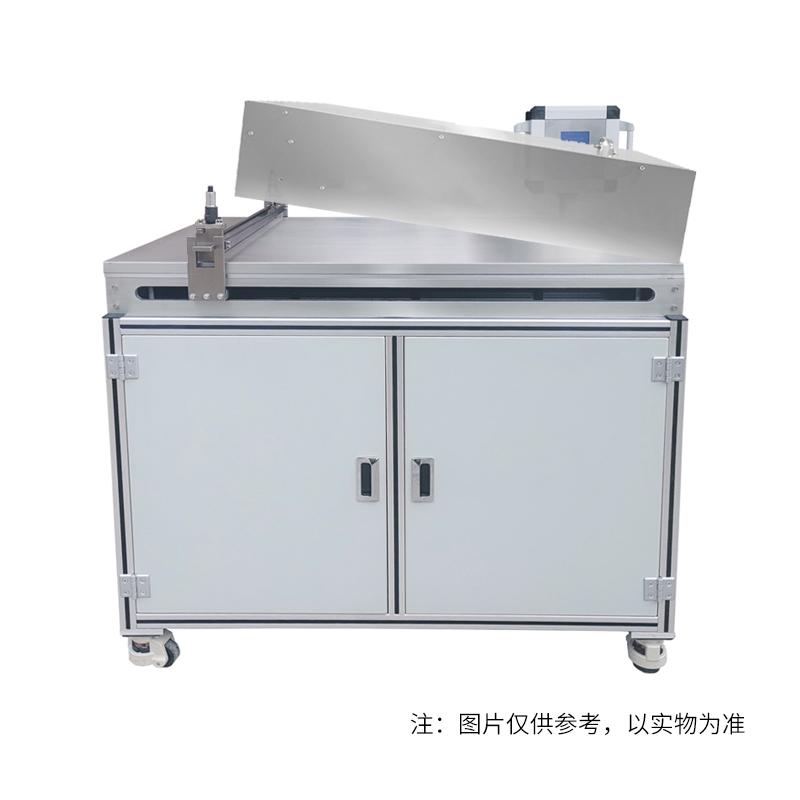

TBJ-X3-DJ35 Floor-Standing Automatic Film Applicator is a multi-function Spreader device with integrated bar and Drawdown blade dual Spreader mode, equipped with upper and lower dual heating system (Temperature range RT +~ 180 ℃) and 600 * 700mm Vacuum chuck platform, achieving 1400 * 1200mm large format precision Spreader with accuracy of +/- 0.03mm. The automatic feeding system adopts air source pressure drive, 3L stainless steel barrel with safety device, adjustable discharge volume, support Touchscreen control and stepless speed change, suitable for New material research and development, battery pole piece Spreader and other industrial scenarios.
Features
1. Integrated bar + Drawdown blade dual Spreader mode
2. Upper and lower double heating system, Temperature range RT +~ 180 ℃
3.600 * 700Mm Vacuum chuck platform, the base material is fixed and stable
4.1400 * 1200Mm large top coating, accuracy +/- 0.03mm
5. Automatic feeding system, air source pressure drive, adjustable discharge
6.3L Stainless Steel Mixing Tank with Safety Device
7. Touchscreen control and infinitely variable speed operation
8. Adjustable coating speed 5-200mm/s, support customization
Principle
The equipment is fixed to the substrate through the Vacuum chuck platform, and the bar or Drawdown blade is used for Spreader. The thickness of the Spreader is adjustable from 0 to 10mm. The upper and lower dual heating systems provide uniform heating, with a Temperature range of RT +~ 180 ° C. The automatic feeding system is driven by the pressure of the air source, and the discharge volume is controlled by adjusting the air pressure and the running speed of the discharge port to realize reciprocating linear motion feeding.
Applications
New material R & D, Battery Pole Spreader
Steps
1. Connect the power supply (220V 50Hz) and the gas source (0.6Mpa).
2. Set Spreader parameters (Rate, Travel, Temperature, etc.) through Touchscreen
3. Place the substrate on the Vacuum chuck platform to fix
4. Select Spreader mode (bar or Drawdown blade)
5. Start the automatic feeding system and adjust the amount of material
6. Start Spreader operation
7. Turn off the equipment after completion, clean and maintain it
Notice
• The air source of the feeding system needs to be equipped with a φ 8 trachea
• The maximum pressure of the Mixing Tank is 8Mpa, do not use it beyond the limit
• Check safety valves, pressure regulators, pressure gauges and other devices before operation
• Customized coating speed below 5mm/s
• Net weight and Dimensions of the equipment are subject to the actual product
• Clean the coating table and feeding system in time after use
