Overview

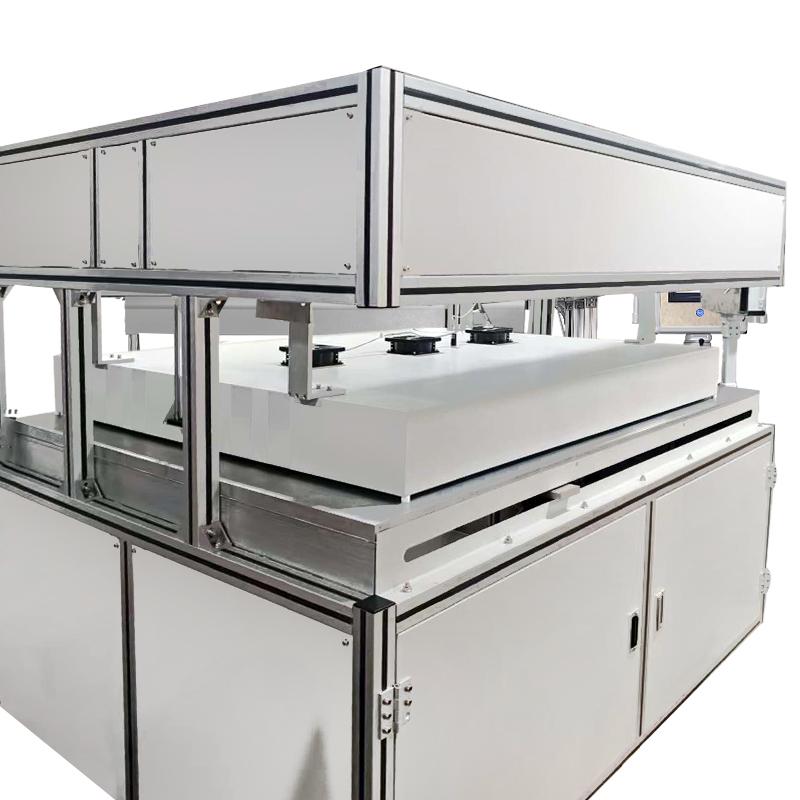

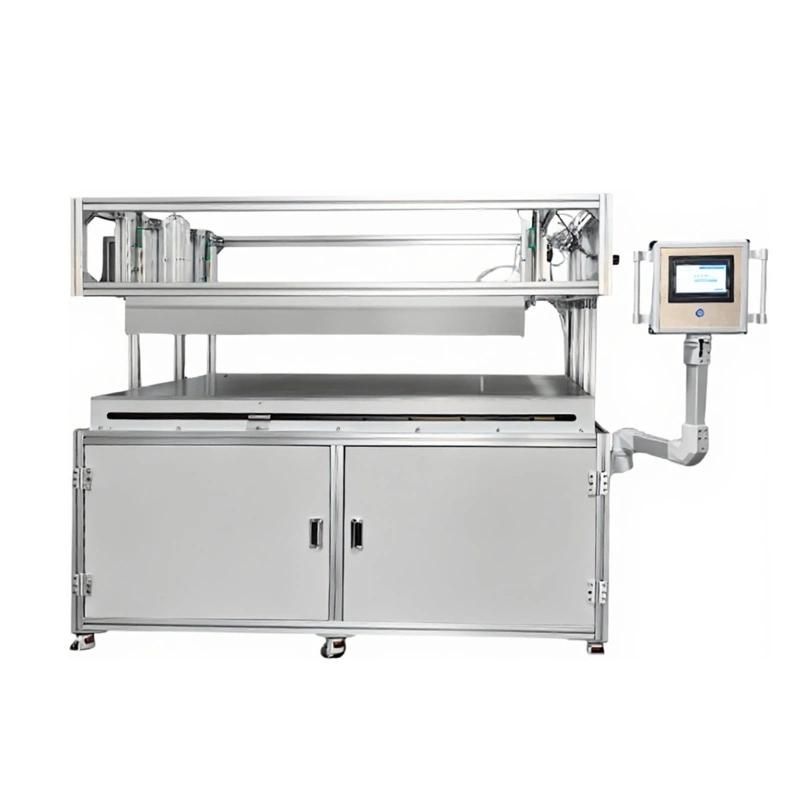

TBJ-X3-DJ36 Floor-Standing Multifunctional Film Applicator is a China automatic film equipment with integrated bar and Drawdown blade dual Spreader mode, equipped with upper and lower dual heating system (Temperature range RT +~ 180 ℃) and 600 * 700mm Vacuum chuck platform, supports 1500 * 1300mm large format precision Spreader, accuracy up to +/- 0.03mm. The automatic feeding system adopts air source pressure drive, 3L stainless steel barrel with safety device, adjustable material output, support Touchscreen control and stepless speed change, suitable for New material research and development, battery pole Spreader and other industrial scenarios.
Features
1. Integrated bar and Drawdown blade dual Spreader mode, Drawdown blade type is removable Drawdown blade
2. Spreader accuracy up to +/- 0.03mm, Blade Coating thickness range 0~ 10mm adjustable
3. Equipped with upper and lower double heating system, Heating Temperature range RT +~ 180 ℃, Temperature Uniformity +/- 5 ℃
4. Support 1500 * 1300mm large top coating cloth, effective width 1300mm, Spreader Travel 1~ 1400mm digital arbitrary setting
5. Vacuum chuck platform fixed substrate, Vacuum Area 1500 * 1300mm
6. The automatic feeding system is driven by air source pressure, and the Mixing Tank is made of 304 stainless steel with 3L wall thickness of 4mm, with safety valve, pressure regulating valve, pressure gauge, and air discharge valve
7. Support Touchscreen control and stepless speed, coating speed 5-200mm/s (< 5mm/s can be customized)
8. Feeding system supports reciprocating linear motion, feeding back and forth traverse speed 2-150mm/s, and the amount of material can be adjusted
Principle
The Film Applicator uses a Vacuum chuck platform to fix the substrate and uses bar and Drawdown blade dual Spreader mode for Spreader. The heating system provides upper and lower double heating, and the temperature can be adjusted to 180 ° C. The automatic feeding system is driven by air source pressure, and the amount of material is controlled by adjusting the air pressure and the running speed of the discharge port to achieve reciprocating linear motion feeding. The shaft drive adopts a synchronous belt mode to ensure Spreader accuracy and Stability.
Applications
New material R & D, Battery Pole Spreader
Steps
1. Prepare the substrate and place it on the Vacuum chuck platform
2. Set Spreader parameters through Touchscreen, including Spreader Travel, Rate, and Heating Temperature
3. Configure the automatic feeding system to adjust the air pressure and the running speed of the discharge port to control the discharge volume
4. Start the device and perform bar or Blade Coating operation
5. Monitor Spreader process to ensure accuracy and uniformity
6. After completing the Spreader, turn off the device and clean it for maintenance
Notice
• The air source of the feeding system needs to be 0.6Mpa, and it is equipped with a φ 8 trachea
• The maximum pressure of the Mixing Tank is 8Mpa, and this limit must not be exceeded when using it
• The power supply of the equipment is 220V 50Hz to ensure stable power supply
• Customized coating speed below 5mm/s, conventional range is 5-200mm/s
• Regularly check the Mixing Tank configuration of safety valve, pressure regulator, pressure gauge, etc., to ensure safe operation
• Coating size and Vacuum Area can be customized, need to confirm requirements in advance
• Net weight and Dimensions of the equipment are subject to the actual product, pay attention to load bearing and space during installation
