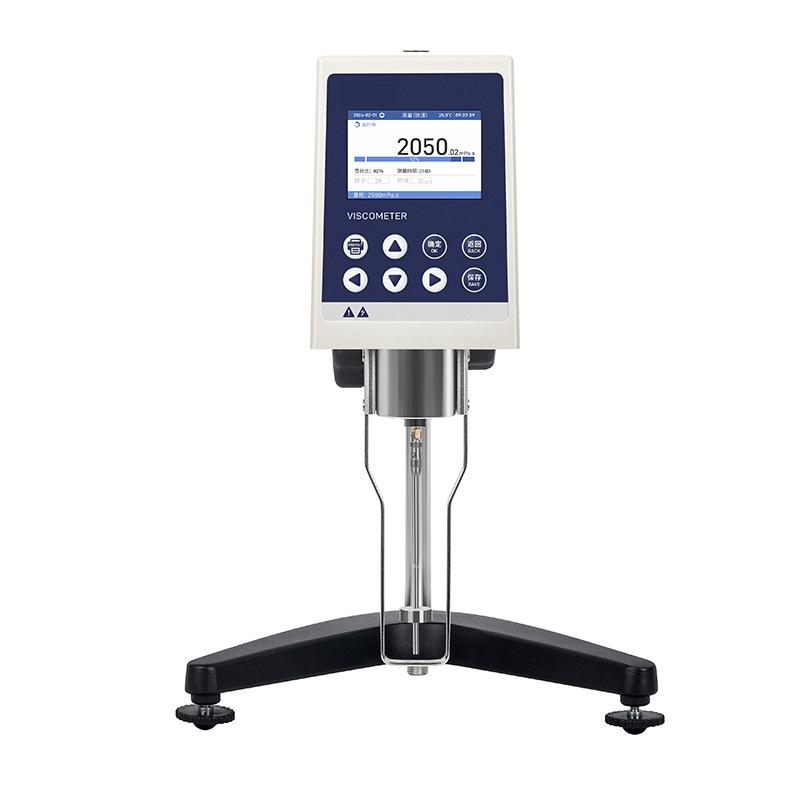

ShuJU NDJ-8S + 0 #Rotational Viscometer Digital Viscometer 0 rotor low viscosity measurement

Name: ShuJU NDJ-8S + 0 #Rotational Viscometer Digital Viscometer 0 rotor low viscosity measurement
Brand: ShuJu
SKU: NB004944
Price: 479.0 USD
Availability: InStock

$ 479.00Ex works

Using 0.3-60 rpm eight-speed Rotation speed and No. 0 rotor, it can measure 10mPa.s low viscosity samples, equipped with 3.5-inch IPS color screen to directly display viscosity, torque and other paraMeters, support USB Interface and 50 record storage.

Model

NDJ-8S+0#
NDJ-8S

Get Quote

Category : Rotational Viscometer

Brand : ShuJu

SKU : NB004944

Service :The delivery and service By NBCLab.Com

Overview

The NDJ-8S + 0 #rotational viscometer is a digital rotational viscometer of HuiNuo brand. It adopts reliable mechanical design technology, manufacturing process and microcomputer control technology, and has stable data collection. The instrument has the characteristics of high measurement Sensitivity and reliable test results, and can be used for the measurement of absolute viscosity of Newtonian liquids and apparent relative viscosity of non-Newtonian liquids.

Features

1. Adopt reliable mechanical design technology, manufacturing process and microcomputer control technology for stable data collection 2. The display adopts a high-resolution 3.5-inch IPS display, and the data display is intuitive 3. The color screen can directly display the viscosity, Rotation speed, temperature, percent torque, rotor number and the maximum viscosity that can be measured at the current Rotation speed of the selected rotor number 4. Sensitivity of measurement, reliable test results 5. Wide viscosity range, from 10 to 2000000mPa.s 6. reproducibility up to +/- 1% F.S, Measurement accuracy +/- 2% F.S 7. Support conventional measurement, Linear dispersion measurement, recording, viscosity conversion, printing and other functions 8. Provide USB, RS232 Interface, can store 50 measurement records

Principle

The instrument determines the viscosity of the liquid by measuring swirl/spin resistance of the rotor in the liquid. Microcomputer control technology is used to precisely control the Rotor speed, and data is collected through the Sensor to calculate and display the viscosity value.

Applications

Oil, paints, plastic, food, Coatings, glue, Adhesive, Resin, chemical raw materials and other fluid viscosity measurement

Standards

no mention

Steps

no mention

Notice

no mention

Viscosity Range
10~2000000 mPa.s
Rotor specification
Standard 0/1/2/3/4 (low viscosity samples can be measured)
Rotor speed
0.3/0.6/1.2/3/6/12/30/60 rpm
reproducibility
+/- 1% (Newtonian liquid)
Measurement accuracy
+/- 2% (Newtonian liquid)
Display resolution
0.01 mPa.s
System function
General measurement, Linear dispersion measurement, recording, viscosity conversion, printing
Interface
USB、RS232
Measurement record
50 articles
Operating language
Switch between Chinese and English (optional English)
Environment Operating temperature
0℃~40℃
Environment relative humidity
20%~ 80% condensate-free air environment
Power supply Voltage
100~240v，50~60 HZ
Lift Travel
250mm
Dimension
280*260*395mm
Net weight
Approx. 5 kg

[Q] I want to measure the viscosity of glue, which is roughly in the range of several thousand to tens of thousands of millipascal-seconds. Which rotational viscometer model would be suitable?

We recommend using Huinuo's NDJ-8S model. Since the viscosity range of adhesives typically falls within a few thousand to tens of thousands of millipascal-seconds, the NDJ-8S has a measurement range of 1 to 2 million millipascal-seconds, fully covering your needs. It comes standard with rotors 0 to 4, among which rotors 3 and 4 are particularly suitable for measuring medium to high-viscosity adhesives. Additionally, it offers multiple speed options, such as 12 r/min and 6 r/min, enabling accurate measurement of the apparent viscosity of adhesives with stable and reliable data.

[Q] For our lab, we frequently need to measure samples with different viscosities, such as oils and coatings. We need a universal viscometer. Which one would be the best choice?

The NDJ-8S+0# is an excellent choice. It has a wide range of applications, including fluids such as oils, paints, and coatings. This instrument offers a broad measurement range, from 10 to 2 million millipascal-seconds, and comes standard with rotors #0 to #4, allowing it to handle samples with varying viscosities, from low to high. For example, low-viscosity oils can be measured using rotor #0 or #1, while high-viscosity coatings can be tested with rotor #3 or #4. The color screen provides intuitive display and data recording capabilities, making it highly suitable for the diverse testing needs of a laboratory.

[Q] When selecting a viscometer, besides measuring viscosity, I also want to monitor the sample temperature simultaneously. Are there models with temperature control features available?

If you need to monitor temperature, the Hunuo NDJ-9S model is recommended. It comes with a built-in PT1000A temperature probe and a probe stand, allowing real-time display of sample temperature while measuring viscosity. Since temperature significantly affects viscosity—such as with resins or chemical raw materials, where temperature changes can cause viscosity fluctuations—the NDJ-9S helps you more accurately analyze the relationship between viscosity and temperature, ensuring more professional and reliable test results. Although its measurement range is from 1 to 100,000 mPa·s, it is particularly suitable for scenarios requiring temperature control.
