Overview

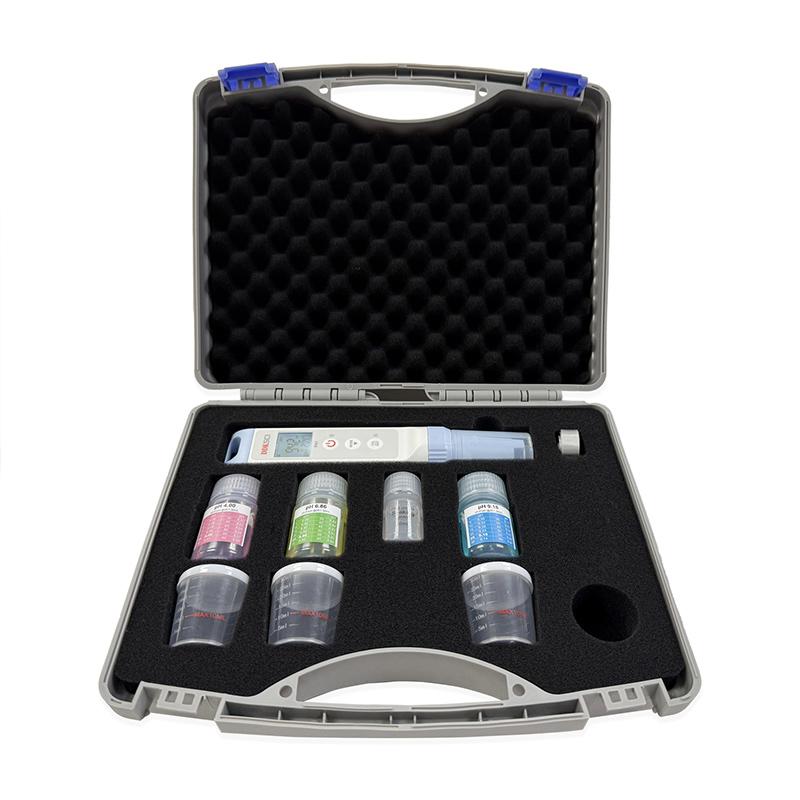

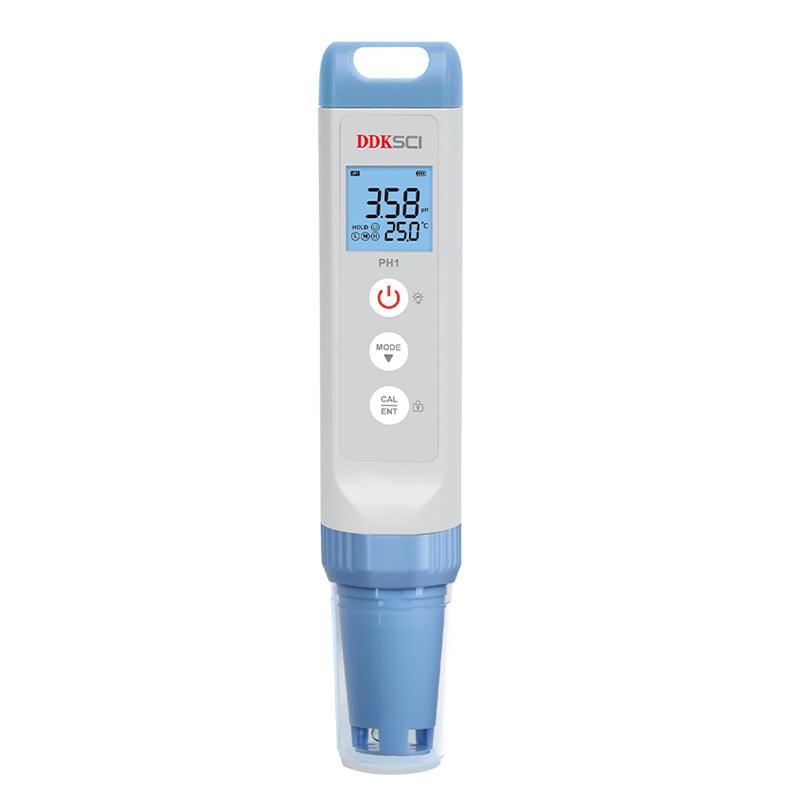

The DDKSIC PH1 Pen pH Meter is a Portable measuring instrument for the measurement of pH, ORP (Electrode optional) and temperature parameters. The product is designed with replaceable pH Electrode, the complete set of Encasement includes standard solution, lanyard, sample bottle and carrying case, and is equipped with a multi-color backlit display with a reading stability reminder, automatic data locking and low voltage display.
Features
1. pH Electrode Alternative Design

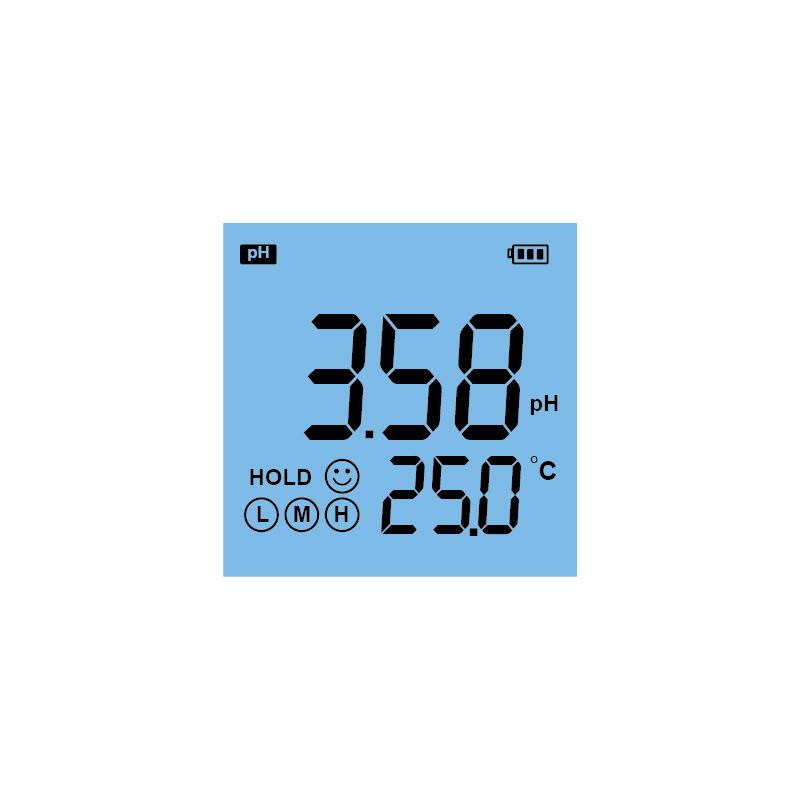

2. Multi-color backlit display
3. Reading stability reminder function
4. Data automatic locking function
5. Low voltage display reminder
6. Adaptable to ORP Electrode measurement ORP parameters
7. CH/USA/NIST solution calibrated optional
8. Support function settings (automatic shutdown time, background light display time, data locking, etc.)
9. Dustproof and waterproof grade IP67
Principle
The pen pH Meter measures pH value by Electrode detection of hydrogen ion concentration in the sample, and is optionally equipped with ORP Electrode measurement Oxidation-reduction potential. The instrument adopts temperature automatic compensation technology to ensure the accuracy of measurement in different temperature environments, and guarantees Measurement accuracy through Automatic calibration function.
Applications
Water quality testing, laboratory analysis, environment monitoring, industrial process control, education and research
Steps

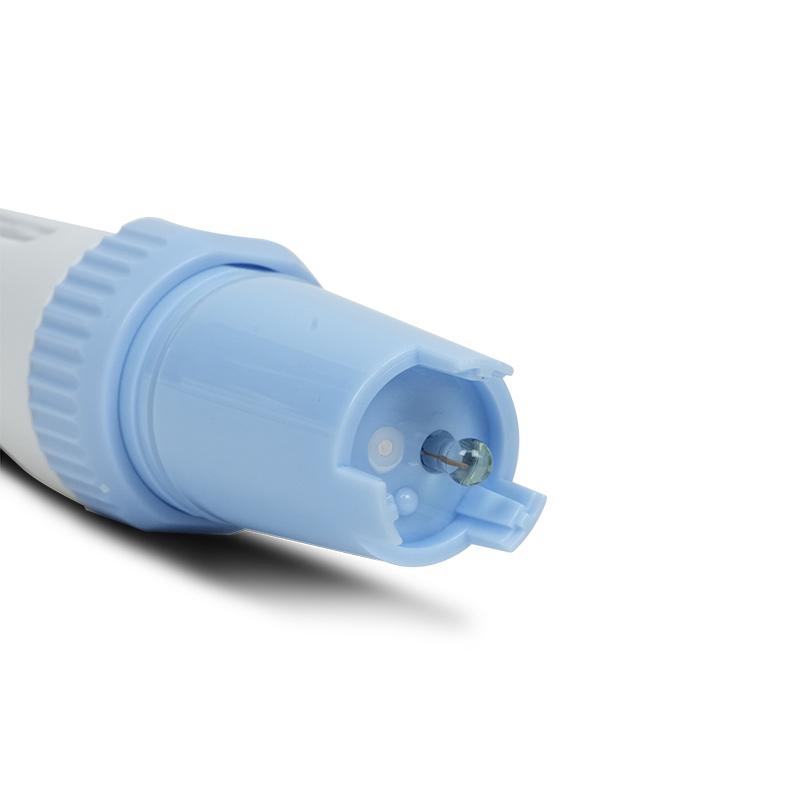

1. Installation or Replacement of Electrodes
2. Automatic calibration of 1~ 3 points using standard solution
3. Electrode immersion in the sample to be tested
4. Wait for the reading to stabilize and record the data
5. Clean Electrode After Use and Store Properly
Notice
• Please calibrate before use
• Avoid Electrode Exposure to Air for a Long Time
• Regularly change Electrodes to ensure Measurement accuracy
• Note that the dustproof and waterproof grade is IP67, but it is still necessary to avoid long-term soaking

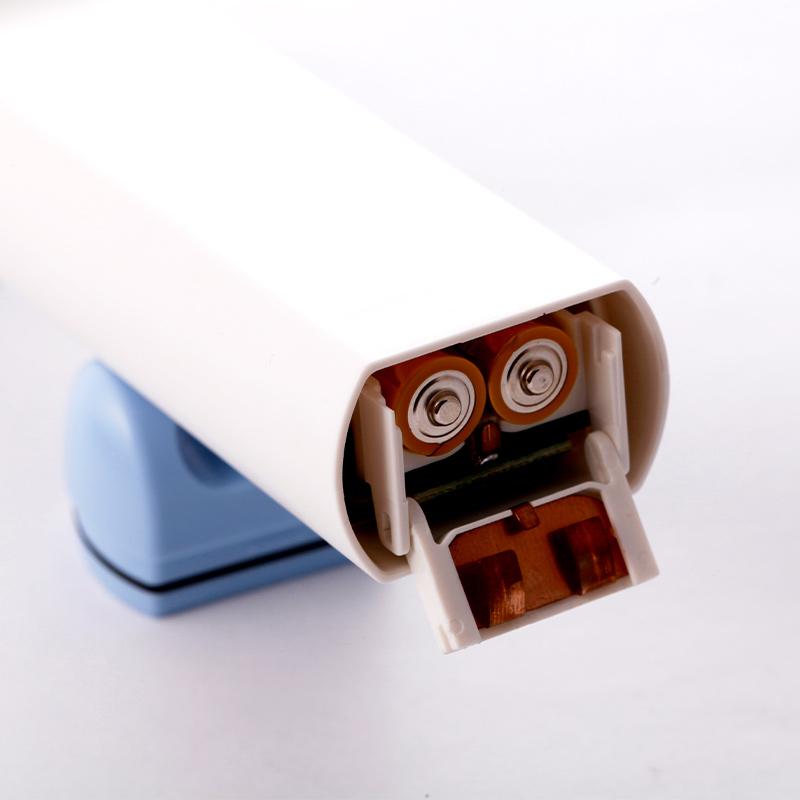

• Replace the battery in time when the voltage is low
• The calibrated solution needs to be selected according to the standard CH/USA/NIST
