Overview

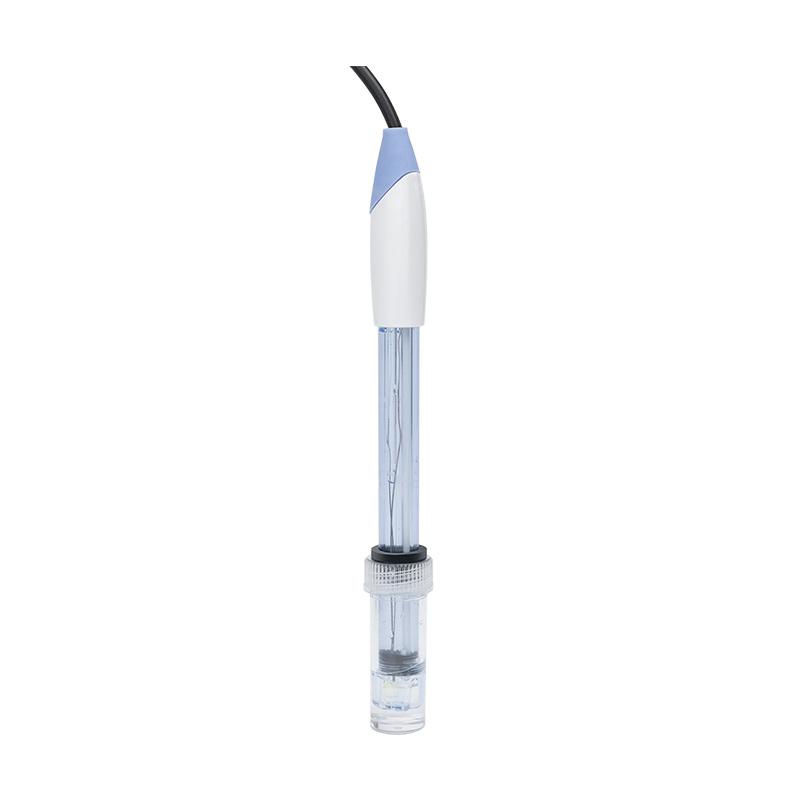

201T triple composite pH Electrode is a reliable measurement tool with a plastic shell, equipped with a 1-meter cable, built-in 10KΩ temperature sensor, Electrode interface is BNC (Q9)/BNC (Q6), and the specification is φ 12mm × 120mm. It has a built-in 3mol KCl gel reference solution (non-additive) and adopts a triple composite structure, which can stably and accurately complete ph value measurement in a 0-14pH Measurement range and a temperature environment of 0-60 ° C. It is suitable for laboratory testing, industrial production and other scenarios that require ph value measurement.
Features
1. Adopt Triple Composite Structure to Ensure Measurement Stability and Accuracy
2. Built-in 10KΩ temperature sensor, support temperature compensation
3. Built-in 3mol KCl gel reference solution, no need to add maintenance
4. Plastic shell design, durable and reliable
5. Equipped with 1 meter cable, easy to use
Principle
Based on the principle of electrochemistry, the electrode generates a potential difference by contacting the sensitive film in the three-composite structure with the solution to be tested, and combines the built-in temperature sensor for temperature compensation, so as to accurately measure the pH value of the solution.
Applications
Environmental protection, chemical industry, energy, conventional water sample measurement
Steps
1. Connect Electrode to pH Meter BNC Interface
2. Electrode immersion in the solution to be tested
3. Record the ph value after waiting for the reading to stabilize
4. Clean Electrode After Use and Store Properly
Notice
• The built-in reference solution cannot be added, please do not try to open it.
• Measurement range limited to 0-14pH and 0-60 ℃
• Electrode to avoid severe impact or high temperature environment
• Electrode should be cleaned promptly after use
• It is recommended to dry it when not in use for a long time
