Overview

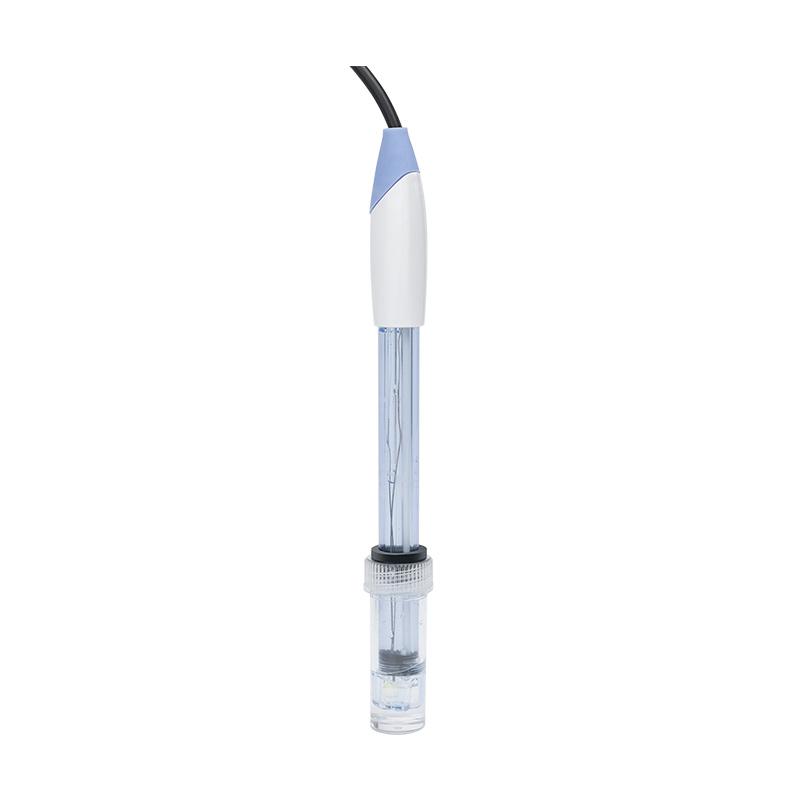

201T-H triple composite pH Electrode is a measurement tool that integrates compatibility and Stability. It adopts a plastic shell with a 1-meter cable, built-in 10KΩ temperature sensor, Electrode interface supports BNC/4 core dual mode, and the specification is φ 12mm × 120mm. It adopts non-additive 3mol KCl gel reference solution and triple composite structure design, which can work stably in the range of 0-14pH alkalinity and 0-60 ℃ temperature environment, accurately captures pH value changes, and is suitable for online monitoring and laboratory testing scenarios in chemical, environmental protection, energy and other fields, providing users with reliable measurement data support.
Features
1. Adopt Triple Composite Structure Design to Improve Measurement Stability
2. Built-in 10KΩ temperature sensor, support temperature compensation
3. Electrode interface compatible with BNC/4 core dual mode, flexible use
4. The plastic shell is equipped with a 1-meter cable for easy installation and operation
5. Use non-additive 3mol KCl gel reference solution for easy maintenance
Principle
The Electrode uses a three-composite structure design combined with a built-in temperature sensor to monitor the temperature change of the solution in real time during the measurement process, and works in tandem with the measurement system through a reference system to accurately detect the pH value of the solution. In the range of 0-14pH, Electrode can stabilize the alkalinity change of acid and ensure the accuracy of the measurement data.
Applications
Environmental protection, chemical industry, energy, conventional water sample measurement
Steps
1. Connect the Electrode interface to the corresponding measurement device
2. Electrode immersion in the solution to be tested
3. Record the ph value after waiting for the reading to stabilize
4. Clean Electrode After Use and Store Properly
Notice
• Do not use in environments beyond the 0-60 ℃ Temperature range
• Avoid Violent Impact or Bending of Electrodes
• It should be cleaned in time after use to prevent contamination
• The reference solution is non-additive and does not need to be supplemented
