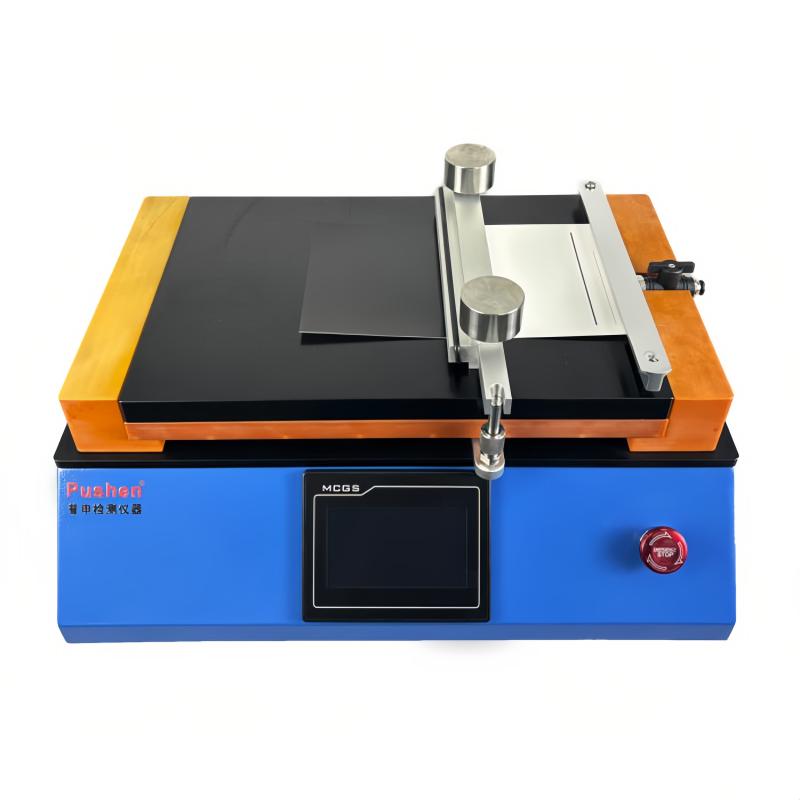

PUSHEN AFA-V electric vacuum Coater electric push Rod Spreader motion

Name: PUSHEN AFA-V electric vacuum Coater electric push Rod Spreader motion
Brand: Pushen
SKU: NB049488
Price: 2463.0 USD
Availability: PreOrder

$ 2463.00Ex works

Adopt electric push Rod to drive Spreader movement, adjustable speed range of 2-200mm/s, temperature accuracy +/- 3 ℃, support Vacuum chuck and electric heating function, improve Spreader uniformity and operation convenience.

Model

AFA-V

Get Quote

Category : Automatic Film Applicator

Brand : Pushen

SKU : NB049488

Service :The delivery and service By NBCLab.Com

Overview

The AFA-V electric vacuum Coater is an automatic Spreader device of the PUSHEN brand. It uses an electric push rod to realize the Spreader movement of each device or bar of the wet-film system, which can effectively avoid the non-Stability of the manual Spreader. The machine adopts a single-chip microcomputer control technology and is equipped with a touch lock screen display. You can choose the speed and displacement of left and right rows. The actual moving distance of the Spreader is displayed in real time during operation. The Spreader frame can be returned electrically or manually. The Operating interface is simple and clear, which is greatly convenient for the operator to use.

Features

1. Use Electric Push Rod to Realize Spreader Movement to Avoid Manual Spreader Stability 2. MCU control technology, touch screen display operation 3. Selectable left and right speed and displacement 4. Real-time display of Spreader actual moving distance 5. Spreader rack can be returned electric or manual 6. Operating interface is simple and easy to use

Principle

AFA-V type electric vacuum Coater through the electric push rod drive wet-film system or bar for Spreader movement, using microcontroller control technology to precisely control the speed and displacement of Spreader, equipped with electric vacuum coating table to provide heating function, to achieve a stable and uniform Spreader process.

Steps

1. Connect the power supply and turn it on. 2. Set left and right row speed and displacement parameters through the touch screen 3. Place the Spreader Material on the Spreader Table 4. Start the Spreader 5. Monitor the Spreader moving distance displayed in real time 6. After the Spreader is completed, select Electric or Manual to return to the Spreader rack

Notice

• Power supply voltage meets equipment requirements (110/220V 50/60Hz) • Temperature range controlled between room temperature and 150 ℃ • Avoid exceeding the maximum load weight of the device • Regularly check the running status of the electric push rod • Keep the coating table clean to avoid clogging the suction holes

Coating table Size
360*250mm
suction hole distribution
280*190mm
Coating table configuration
Electric vacuum coater
Push rod traverse speed
2-200mm/s
Temperature accuracy
±3℃
Temperature Range
RT+~150℃
Power Supply
110/220V 50/60Hz
Dimension
470*330*250mm
instrument weight
18 kg

[Q] For preparing uniform wet film samples in the laboratory, we recommend using a film applicator or a drawdown coater.

Recommend the AFA-V Electric Heating Vacuum Coater. It employs an electric push rod to drive the coater, effectively avoiding the instability of manual coating and ensuring uniformity and repeatability for each coating process. This makes it ideal for laboratories that require highly consistent samples.

[Q] In which specific experimental scenarios is this coater commonly used?

It is commonly used in the research, development, and quality inspection of materials such as coatings, inks, and adhesives. For example, before testing coating adhesion, scratch resistance, or optical properties, it is necessary to prepare a uniform wet film of standard thickness. The vacuum adsorption feature of the AFA-V can secure the substrate, while its electric heating function simulates the drying process, ensuring consistent testing conditions.

[Q] What are the practical functions of its electric heating and vacuum features during the selection process?

The heating function allows for temperature control of the coating platform, facilitating rapid or constant-temperature drying of samples, which is suitable for studying the effects of temperature on film formation. The vacuum adsorption function securely holds substrates such as paper or film on the platform, preventing shifting during coating. This ensures a particularly smooth film without bubbles or wrinkles, resulting in more reliable data.
