Overview

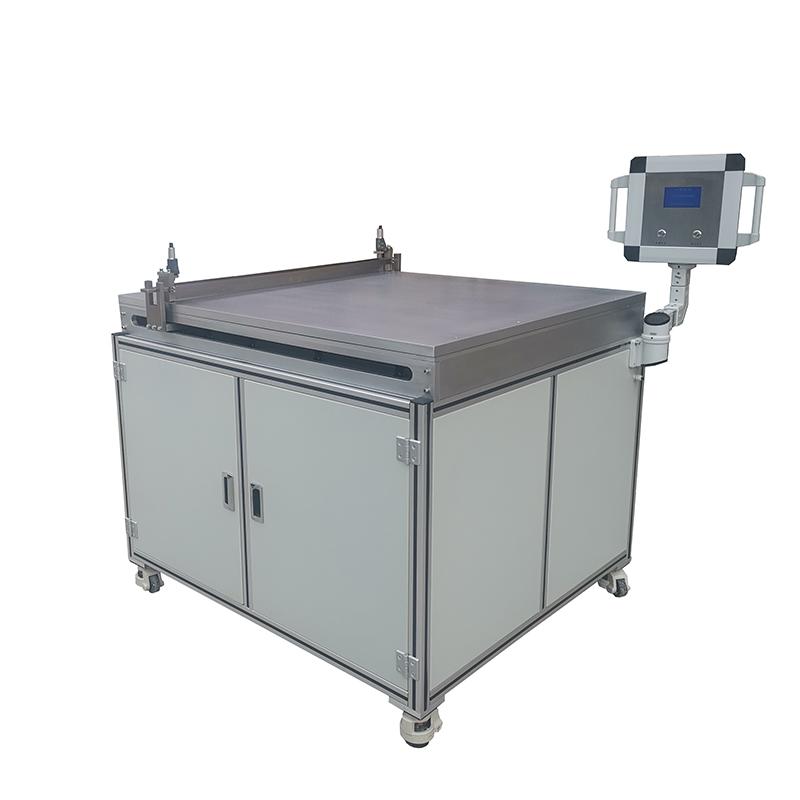

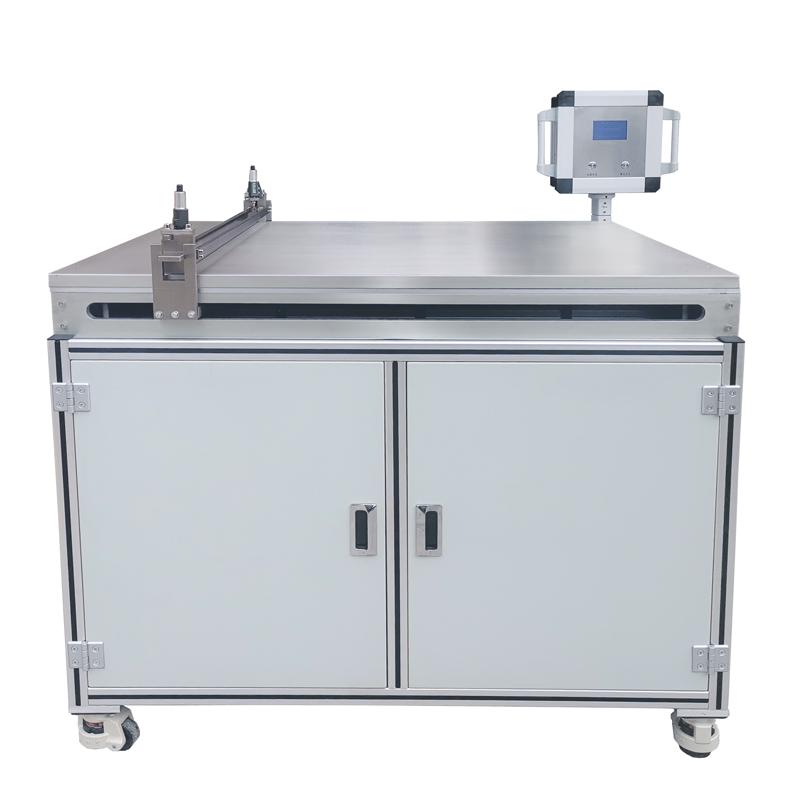

TBJ-B4-DJ13 Floor-Standing Automatic film applicator is a drawdown Bar & blade heating Film Applicator, effective coating area 900 * 1000mm, standard 3L volume Mixing Tank, heating temperature up to 180 ℃. Commonly used in laboratory film, suitable for Moulding in coatings, inks, polymer materials, films, glues, Pressure sensitive adhesives and other industries.
Features
1. Spreader accuracy up to +/- 0.003mm, thickness range 0~ 10mm
2. Temperature range RT +~ 180 ℃, temperature accuracy +/- 3 ℃
3. coating speed 5~ 180mm/s, support stepless speed control

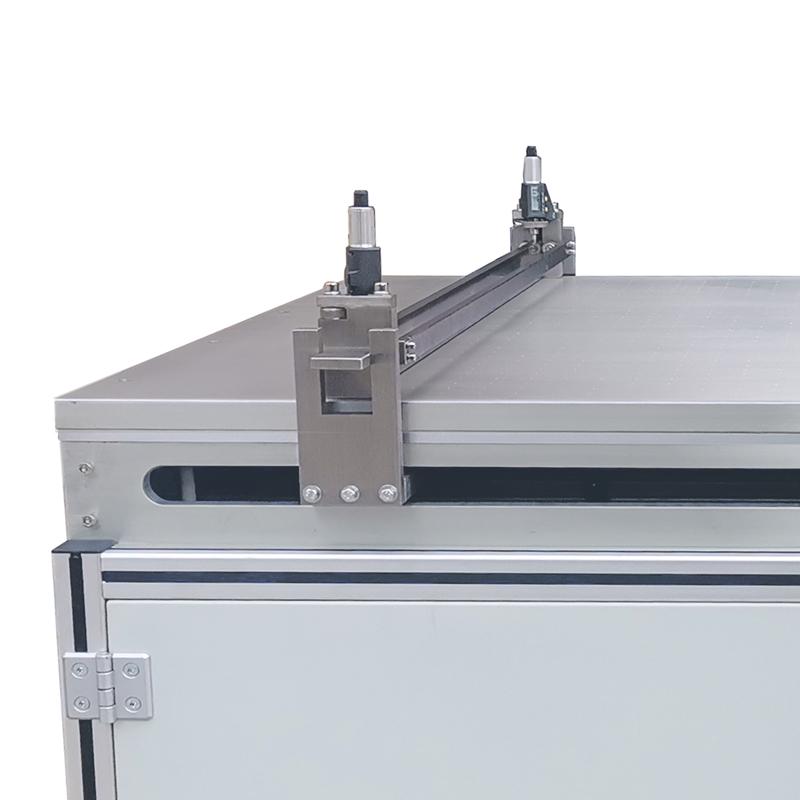

4. Drawdown blade removable, coating rod accuracy 0.001mm
5. Standard 3L Volume Mixing Tank, Optional Accessories
Principle

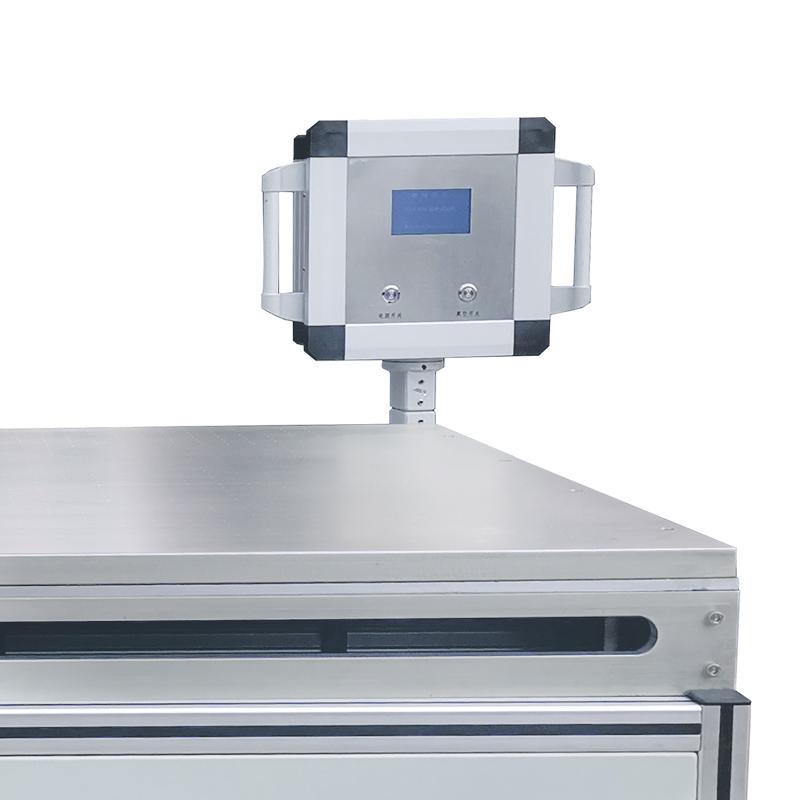

The device uses drawdown Bar & blade heating film technology, which moves the material evenly on the surface of the substrate through a precisely controlled Drawdown blade on a heated Spreader table. The speed and thickness of the Spreader can be precisely adjusted by a digital display system, and the heating system ensures that the material is Spreader at the right temperature.
Applications
Coatings, inks, polymer materials, films, glues, Pressure sensitive adhesives
Steps
1. Spreader material and substrate
2. Set the required Spreader thickness and speed parameters
3. Adjust the heating temperature to the desired value
4. Install the appropriate specification coating rod
5. Start the Device for Auto Spreader
6. Clean the device after finishing the Spreader
Notice
• Make sure the equipment is adjusted horizontally before use
• Select the corresponding Accessories according to the thickness of the substrate
• Pay attention to heating temperature control to avoid overheating
• Regularly clean coating table and Drawdown blade
• Non-standard customized size is subject to the actual order.
