$ 605.00Ex works
Maximum support for simultaneous detection of 4 gases, integrated temperature Humidity detection, dual temperature Humidity compensation design, with a variety of wireless communication options, Response Time T90 ≤ national standard, Protection Rating IP66.
Category : Gas Detector
Brand : Empaer
SKU : NB049497
Service :The delivery and service By NBCLab.Com

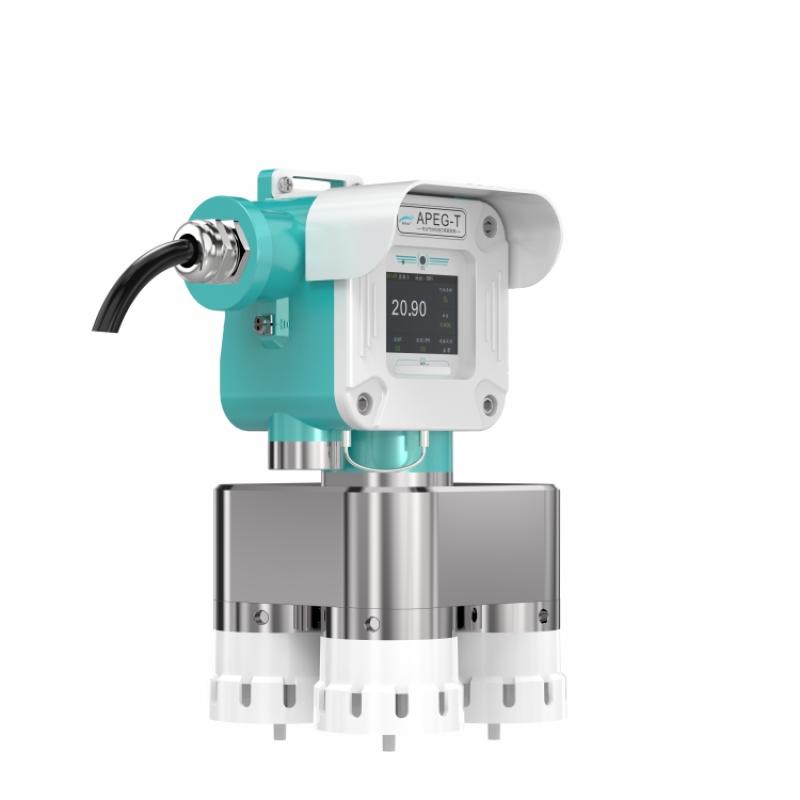

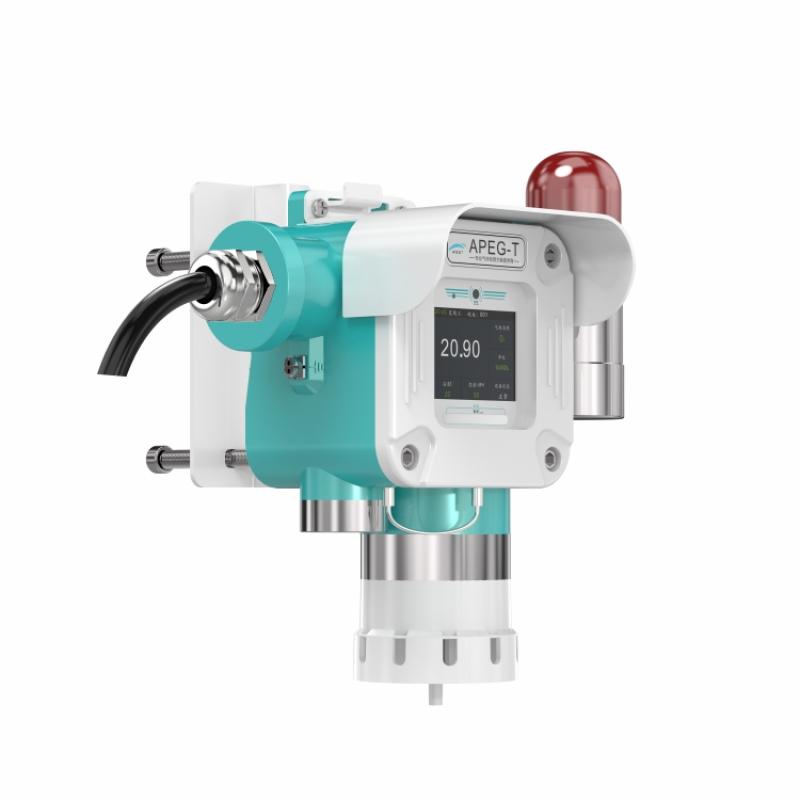

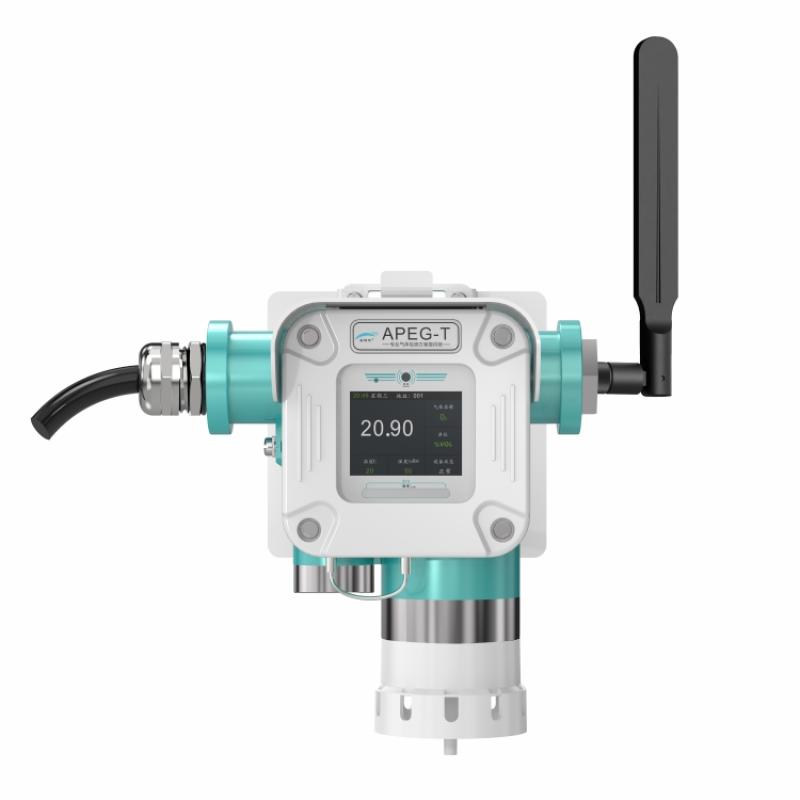

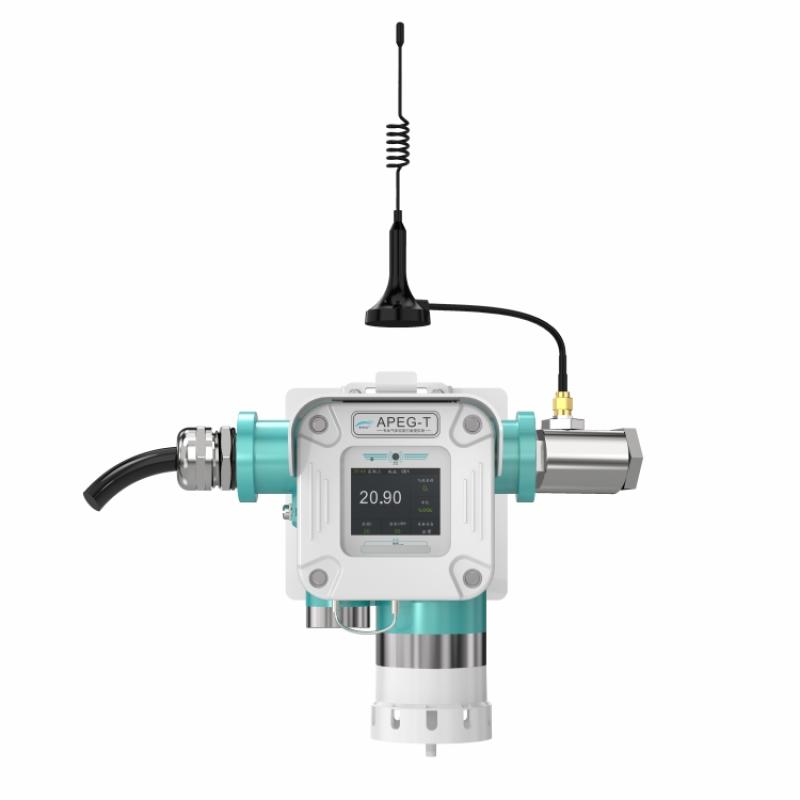

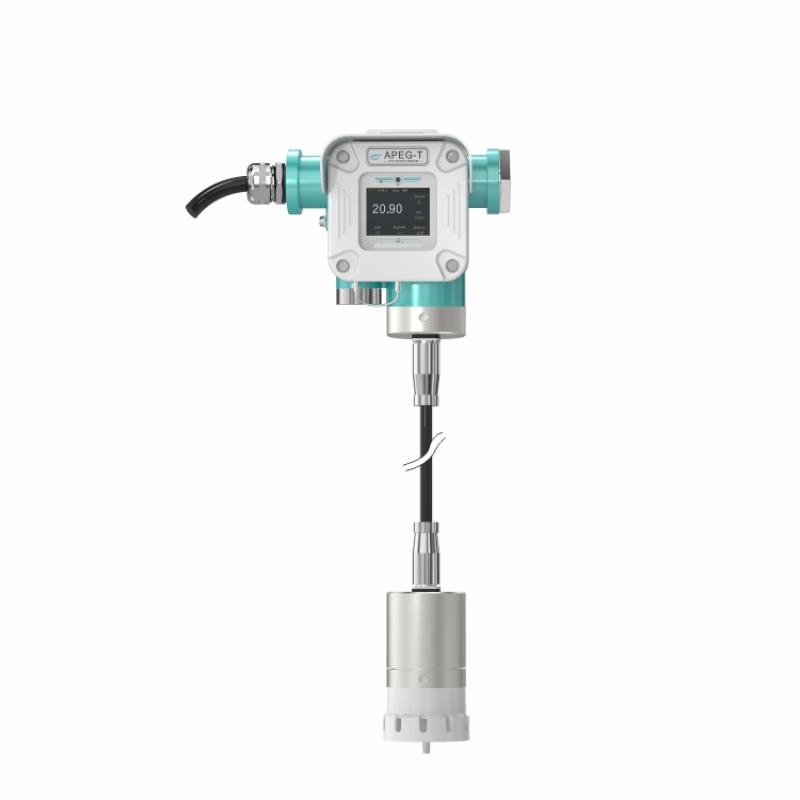

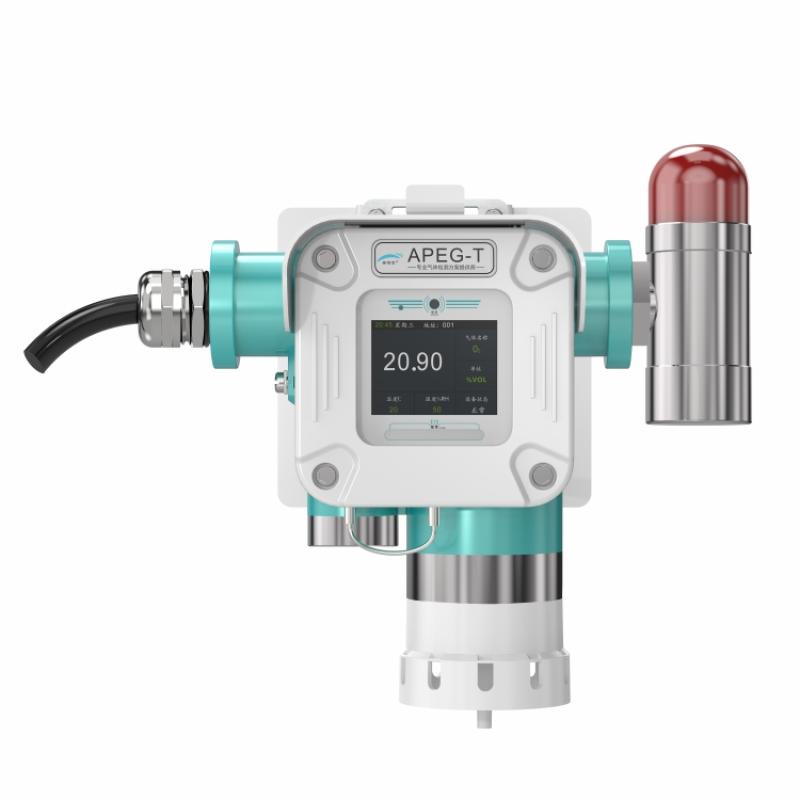

The Pathfinder series fixed Formaldehyde detector (model AATL-CH2O) is a high-performance online gas monitoring instrument launched by the Empaer brand. It supports the detection of 4 gases at the same time and has its own temperature and Humidity detection. It is suitable for a variety of industrial scenarios. The device can convert the detected gas concentration and temperature Humidity into standard signals and transmit them to the host computer. It has built-in relay control peripherals, and can realize remote monitoring, alarm setting and calibration functions by connecting to the Empaer server.
1. Support simultaneous detection of 4 gas types, integrated temperature and Humidity detection 2. Compatible with diffusion and pumping two Sampling methods 3. Internet of Things functions support remote monitoring, alarm reminders, and parameter configuration 4. Adopt self-designed shell, with high brand recognition 5. Equipped with 2.0-inch high definition color display, the viewing distance is up to 10 meters 6. Obtained multiple certifications including dual explosion-proof certification, CPA certification, etc 7. Support multiple Wireless Communication modes 8. Double Temperature Humidity Design, Physical + Software Double Compensation 9. Support Chinese and English Bilingual Operating system 10. Installation methods available 11. With black box storage function 12. Complete reminder and alarm functions 13. Operating interface with guide function 14. Support zero automatic correction 15. Waterproof, dustproof, anti-static and anti-electromagnetic interference
The detector detects on-site gas concentration and temperature Humidity through Sensor, converts it into standard signals (such as 4-20mA, RS-485, etc.), and transmits it to PLC, DCS or alarm control host for display and management. Built-in relays can control sound and light alarms, fans and other equipment to realize intelligent Gas detection and alarm control.
Petroleum and petrochemical, mining, gas, aerospace and military, chemical industry, electric power, scientific research institutes, municipal engineering, metallurgy
Measurement equipment CPA, CCCF, Flameproof, Intrinsic Safety (IS), IP66 protection, Mine safety, Coal safety, ROSH, SIL2, CE, ATEX, IEC
1. Select the Installation method (e.g. Wall-Mounted, Rod, etc.) and fix the device Connect power supply (12-36VDC) and signal output line 3. Sampling method (diffusion or pumping) as required 4. Set parameters through infrared remote control or remote IoT 5. Connect the host computer system for data monitoring 6. Periodic calibration and maintenance
The recommended calibration period is one year * Working ambient temperature range is -40~ 55 ℃, Humidity 10% -95% RH (no condensation) * The power supply voltage needs to be in the range of 12-36VDC, typically 24VDC. * Protection Rating IP66 Requirements * Avoid use under excessive range or temperature conditions * Remote function requires corresponding wireless module * Specific technical parameters such as Response Time, Recovery Time, etc. need to consult customer service
[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
