Overview

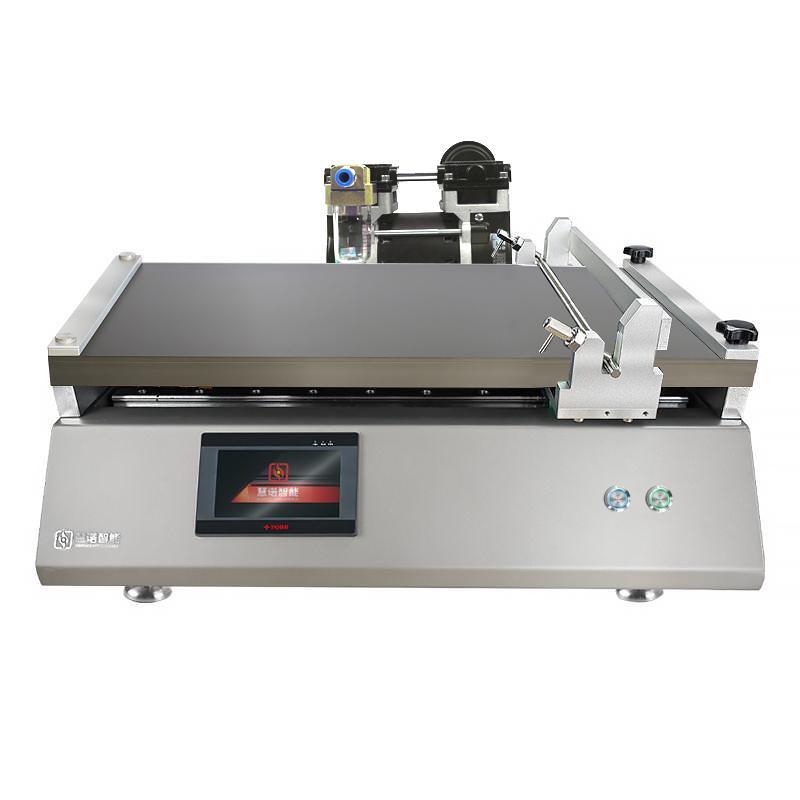

Automatic Film Applicator is a device used for intermediate coating film in laboratory. It replaces manual film and automatically films to improve the accuracy and efficiency of film. The Working Principle of Experimental Automatic Film Applicator is to uniformly Spreader the sample on the substrate by controlling the Spreader head and Spreader parameters to form the desired film. This Film Applicator is a bar type Automatic film applicator with Vacuum chuck function, the new bar Installation method greatly improves the efficiency of Spreader, is easy to clean, supports speed control and application length adjustment, is suitable for laboratory High Accuracy automatic film, Moulding proofing in university research institutes, New material, lithium battery, glue, Resin and other laboratories.
Features
1. Surface hard treatment Aluminum alloy countertop, Hardness and wear resistance, Smoothness of countertop is detected by imported High Accuracy instrument
2. Big brand differential regulator, high film thickness control accuracy
3. With heating and Vacuum chuck function
4. High Accuracy film applicator, original imported bar film uniform accuracy
5. Touchscreen control panel, easy to operate
6. Free adjustment of application length and Spreader speed
Principle
The Working Principle of Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and Spreader parameters. High Accuracy automatic film is realized by using bar coating method combined with Vacuum chuck to fix the substrate.
Applications
University research institutes, New materials, lithium batteries, glues, Resin, Coatings, inks, paints, Stock, lithium batteries, Resin, glues, polymer materials, pharmaceuticals and other laboratories
Steps
1. Prepare the substrate and samples
2. Place the substrate on the Spreader table and fix it by Vacuum chuck
3. Set application length and Spreader speed parameters on Touchscreen
4. Install bar film applicator
5. Start the device for automatic filming
6. Remove the sample after the film is completed and clean the equipment
Notice
• Before use, make sure that the Power supply voltage of the equipment matches the local power grid
• Do not put your hands into the running parts during operation
• Regularly clean coating tables and bars to maintain accuracy
• Vacuum chuck function ensures that the substrate covers the adsorption area flat when used
• Do not change the parameter settings at will during the operation of the device
