Overview

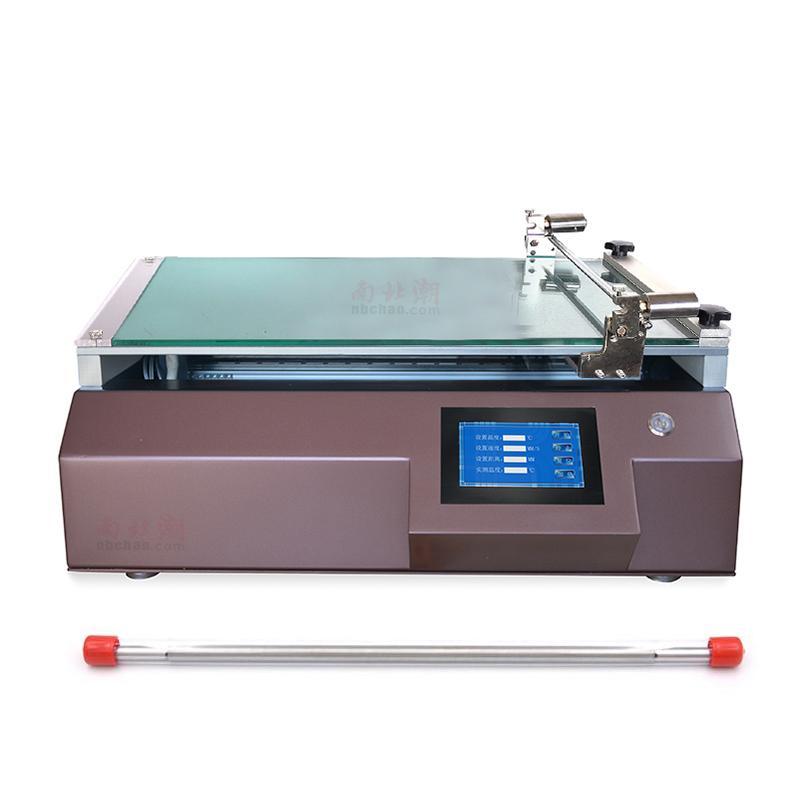

The TBJ-A1 bar Lab Film Applicator is a newly upgraded product. It is carefully designed for Spreader accurate wet-film on different substrates. It can repeatedly and continuously prepare smooth, flat and flawless test samples. After the equipment was put into the market, it has been favored by many familiar companies, R & D institutions, Universities & colleges. TBJ-A1-DJ14 bar Coater is a customized bar Lab Film Applicator. The effective Coating size is 500 * 1000mm. It adopts imported High Accuracy coating rods, Touchscreen control, simple operation, and can customize heating or Vacuum chuck and other functions.
Features
1. Imported High Accuracy coating rod, Spreader accuracy up to +/- 0.003mm
2. Touchscreen control, simple operation
3. Customized heating or Vacuum chuck
4. Speed control is infinitely variable
5. The coating speed range is 5~ 200mm/s, which can be customized below 5mm/s
6.The effective coating area 1000 * 500mm, can be customized
7. Spreader Travel 1~ 1000mm range of digital arbitrary setting
8. Optional Accessories and Customization
Principle
Spreader accurate wet-film on different substrates by bar coating method. Mechanical fixture is used to clamp the substrate, and the coating speed is controlled by stepless speed change. High Accuracy coating rod is used to repeatedly and continuously prepare smooth, flat and flawless test samples.
Applications
Companies, Research Institutions, Universities & colleges
Standards
The data does not mention relevant standards
Steps
The information does not provide specific operation steps
Notice
The information does not provide specific precautions
