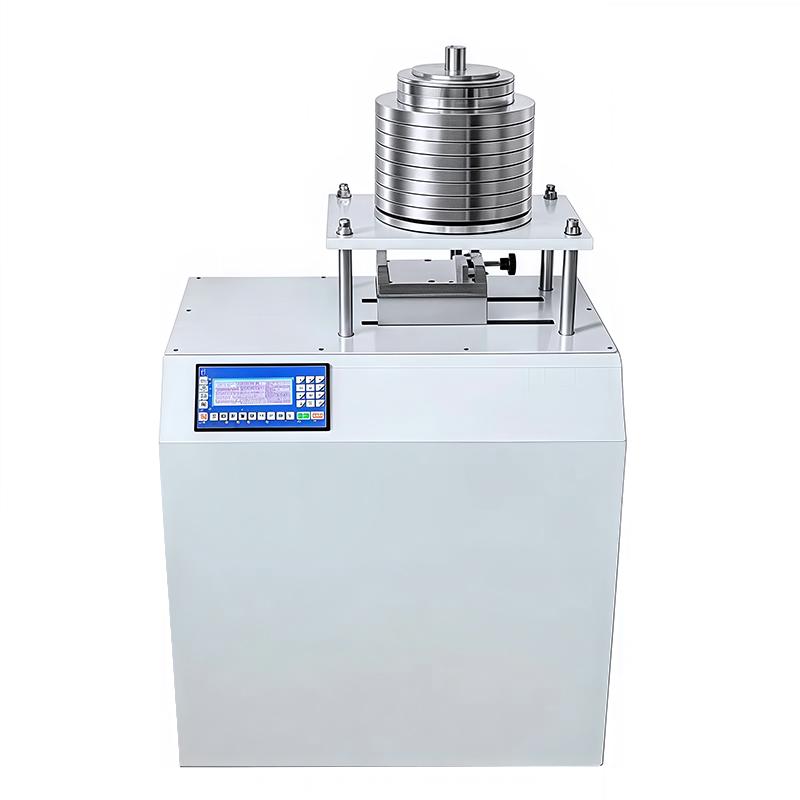

JINGKELIAN QHG mar resistance Tester, pipeline coating Scratch Meter Anti-corrosion coating scratch resistance test

Name: JINGKELIAN QHG mar resistance Tester, pipeline coating Scratch Meter Anti-corrosion coating scratch resistance test
Brand: JingKeLian
SKU: NB049536
Price: 3738.0 USD
Availability: InStock

$ 3738.00Ex works

Control system using servo motor, scratch speed 254mm/min, weight free lifting, ensure that the needle parts accurately fall on the workpiece, to achieve automatic scratch and zero operation.

Model

Get Quote

Category : Scratch Tester

Brand : JingKeLian

SKU : NB049536

Service :The delivery and service By NBCLab.Com

Overview

QHG pipeline coating Scratch meter is designed according to the industry standard SY/T 4113-2007 "scratch resistance test method of anti-corrosion coatings". It is suitable for the scratch resistance test of external anti-corrosion coatings of pipelines.

Principle

The instrument is composed of servo motor and Control system, and the test scratch is automatically completed and automatically returned to zero. The scratch speed is maintained at 254mm/min, and the counterweight weight is lifted and lowered freely to ensure that the scribing needle parts fall freely on the workpiece.

Notice

• The instrument operation procedure has been set by the factory, and there is no need to change the program. After the power is turned on, put the test plate, fix it with the right round handle, manually open the rising button to make the test plate rise close to the scribe, and then press the F key for automatic control. Press the start button to complete the test automatically, press the start button, and press the above action of sexual repeability. Press the end program or the exit button to exit.

lifting height
110mm
Motor Power
1.8 Kw
Workbench movement Range
80mm
Scratch speed
254mm/min
Counterweight
5kg*8、2kg*2、1kg*1
Scribe Lift Travel
75mm
Scribing needle specification
Carbide swirl/spinning file L0616M06 (GB9217)
According to the standard
SY/T 4113-2007

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
