$ 627.00Ex works
Maximum 4 kinds of gas simultaneous detection, integrated temperature and Humidity monitoring, with sound and light alarm function, Response Time T90 ≤ national standard, Protection Rating IP66, suitable for a variety of Installation methods.
Category : Gas Detector
Brand : Empaer
SKU : NB049613
Service :The delivery and service By NBCLab.Com

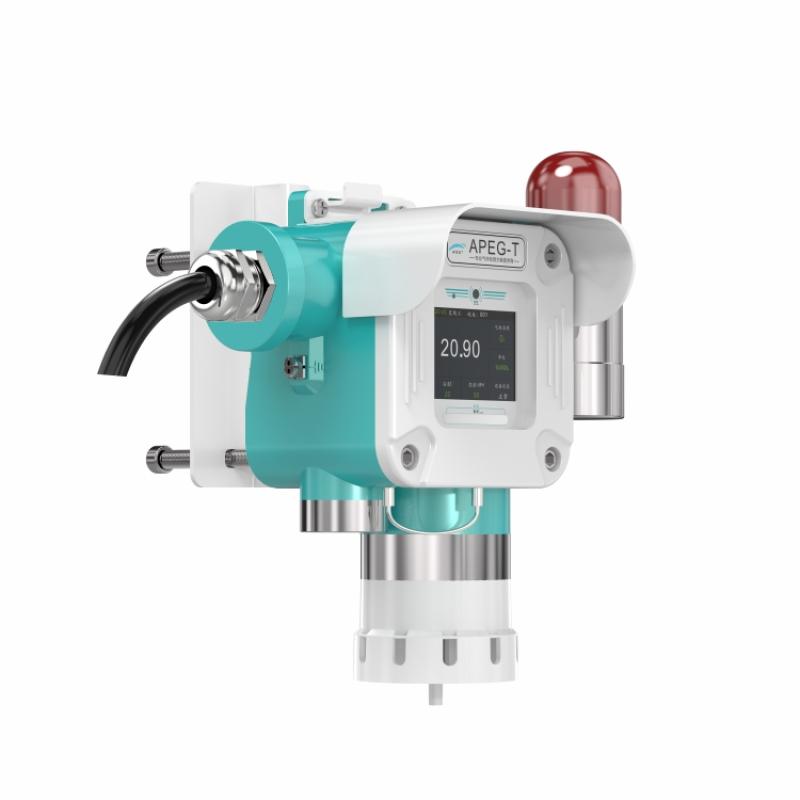

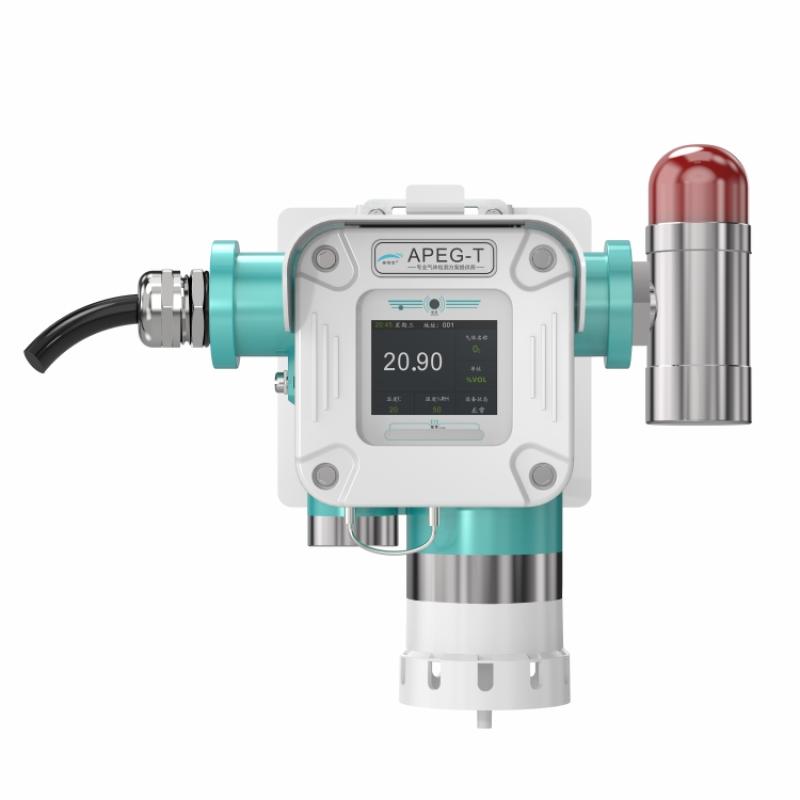

Pathfinder series fixed Formaldehyde detector (sound and light alarm) is a high-performance and fully functional mid-to-high-end on-site gas monitoring instrument launched by Empaer brand. The instrument supports the detection of up to 4 kinds of gases at the same time, and has its own temperature and Humidity detection function. It can convert the detected gas concentration and temperature and Humidity into standard signals and transmit them to PLC, DCS, alarm control host and other host computers to form an intelligent Gas detection and alarm Control system. The built-in relay can control peripheral sound and light alarms, fans, solenoid valves and other equipment, and supports remote monitoring, alarm value setting and remote calibration through connection to the Empaer server.
1. Support diffusion and pump-suction Sampling method, maximum simultaneous detection of 4 gas types, integrated temperature and Humidity detection 2. Internet of Things functions: remote monitoring, alarm reminders, parameter configuration and program upgrades can be realized through NB-IoT, 4G or WIFI networking 3. Independent design of shell molds, high brand recognition 4. Ultra high definition 2.0 inch color display, visual distance ≥ 10 meters 5. Complete certification: double explosion-proof certification, CPA certification, SIL2 certification, CE certification, CNAS metrology authentication 6. Support multiple wireless Communication modes: GPRS, LORA, WIFI, ZIGBEE, NB-LOT, 4G, 5G, etc 7. Double Temperature Humidity Design, Physical + Software Double Temperature Humidity Compensation 8. Bilingual Operating system 9. Support a variety of Installation methods: Wall-Mounted, Rod, Ceiling, Pipeline, etc 10. Black box storage function: operation record, alarm record, over-temperature use record, over-range use record 11. Complete reminder and alarm functions: Sensor expiration reminder, super concentration alarm, super temperature alarm, super Humidity alarm, fault alarm, instrument calibration reminder, etc 12. Operating interface with guide function to prevent misoperation 13. Zero automatic correction function 14. Waterproof, dustproof, anti-static, anti-electromagnetic interference, special models have anti-cross gas interference
The detector collects on-site gas samples by diffusion or pumping, converts the detected formaldehyde and other gas concentration and temperature Humidity data into corresponding standard signals (such as 4-20mA, RS-485, etc.), and then transmits it to PLC, DCS, alarm control host and other host computers for unified display, management and control. Built-in relays can control sound and light alarms, fans, solenoid valves and other peripheral equipment in conjunction to realize intelligent alarm and control functions.
Petroleum and petrochemical, mining, gas, aerospace and military, chemical industry, electric power, scientific research institutes, municipal engineering, metallurgy
Measurement equipment CPA, CCCF, Flameproof, Intrinsic Safety (IS), IP66 protection, Mine safety, Coal safety, ROSH, SIL2, CE, ATEX, IEC
1. Select the appropriate Installation method (Wall-Mounted, Rod, Ceiling or Pipeline) for installation 2. Connect 12~ 36VDC power supply (typical 24VDC) 3. Select Diffusion, Flow, Pipeline or Pump Sampling method as needed 4. Parameter setting through infrared remote control or remote IoT 5. Connect the host computer system (e.g. PLC, DCS) for signal transmission 6. Set alarm values and remote monitoring parameters (e.g. connect to Empaer server) 7. Periodic calibration (recommended cycle of 1 year)
• Maximum support for the detection of 4 gases at the same time. If you need to detect more than 2 gases, you need to consult customer service. • Specific detection principle, Response Time, Recovery Time, Power consumption and other parameters need to be confirmed by customer service • Working ambient temperature range is -40~ 55 ℃, storage temperature is -10~ 30 ℃ • Environmental humidity range of 10% -95% RH (no condensation) • The maximum length of the split body supports 100 meters, please consult customer service for details. • Wireless communication function is optional, you need to choose according to your needs The calibration period is recommended to be 1 year, depending on the Operating Environment • Protection Rating IP66 during installation to ensure waterproof and dustproof performance • Pay attention to Explosion-proof level requirements during use to ensure safe operation
[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
