$ 723.00Ex works
Supports simultaneous detection of 4 gases and integrated temperature Humidity monitoring, adopts dual temperature Humidity compensation design, has a 10-Meter visual distance color screen, provides a variety of signal output methods, adapts to -40~ 55 ℃ working environment.
Category : Gas Detector
Brand : Empaer
SKU : NB049623
Service :The delivery and service By NBCLab.Com

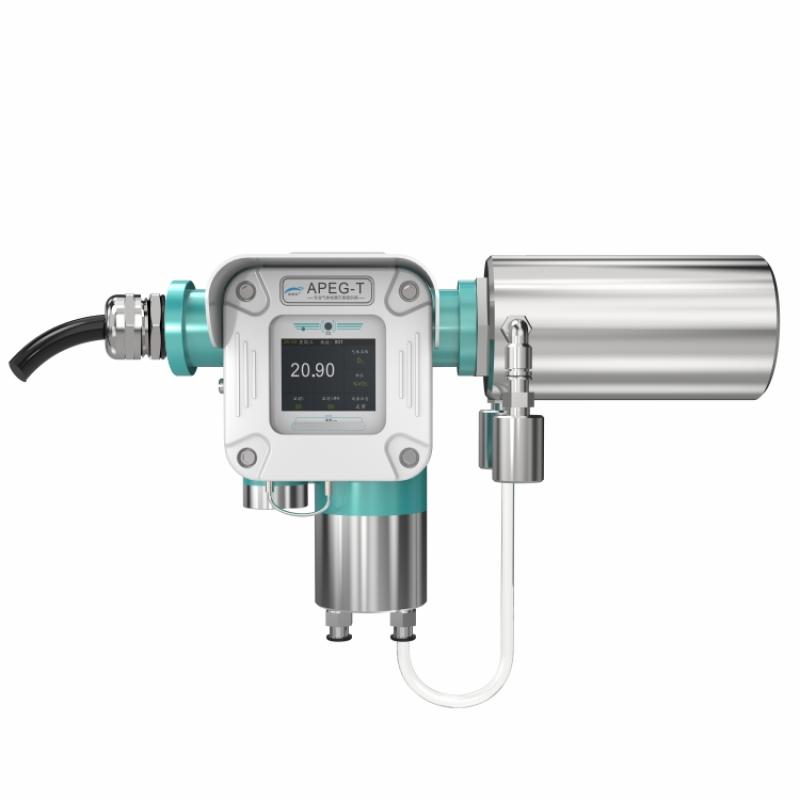

Pathfinder Series Fixed Hydrogen Detector (Pump Suction) is a high-performance, multi-functional mid-to-high-end online gas monitoring instrument launched by Empaer brand, which supports the simultaneous detection of up to 4 gases and integrates temperature Humidity detection. The products are divided into general-purpose and special-purpose models. The special models can be customized according to customer application scenarios, which is more professional and reliable. Its main function is to convert the detected gas concentration and temperature Humidity into standard signals, which are transmitted to PLC, DCS and other host computers for unified management. The built-in relay can control sound and light alarms, fans and other peripheral devices, and supports IoT remote monitoring, alarm setting and calibration.
1. Support diffusion and pump-suction Sampling method, maximum simultaneous detection of 4 gases, integrated temperature and Humidity detection 2. Internet of Things function: The server can be connected to realize remote monitoring, alarm reminders and parameter settings, and supports NB-IoT, 4G or WIFI networking 3. Independent design of shell molds, high brand recognition 4. High standard and high performance, with reference to a variety of industry standards, widely used and stable 5. Ultra high definition 2.0 inch color display, viewing distance of 10 meters 6. Complete certification: double explosion-proof certification, CPA certification, SIL2 certification, CE certification, CNAS metrology authentication 7. Support a variety of wireless communications: GPRS, LORA, WIFI, ZIGBEE, NB-IoT, 4G, 5G (optional) 8. Double Temperature Humidity Design, Physical + Software Double Compensation, Real-time Detection and Display 9. Bilingual Operating system: switch between Chinese and English 10. Installation method: Wall-Mounted, Rod, Ceiling, Pipeline, etc 11. Black box storage function: operation record, alarm record, over-temperature and over-range record 12. Complete reminder alarm function: Sensor expiration, super concentration, super temperature, super Humidity, fault, calibration reminder, etc 13. Operating interface guide function to prevent misoperation 14. Zero automatic correction function 15. Waterproof, dustproof, anti-static, anti-electromagnetic interference, special anti-cross gas interference
The detector detects the gas concentration and temperature Humidity on site through the Sampling method (such as pump suction or diffusion), converts it into standard signals (such as 4-20mA, RS-485, etc.), and transmits it to the host computer such as PLC, DCS or alarm control host for unified display, management and control. Built-in relays can control peripheral devices such as sound and light alarms, fans and solenoid valves in conjunction to realize intelligent Gas detection and alarm systems.
Petroleum and petrochemical, mining, gas, aerospace and military, chemical industry, electric power, scientific research institutes, municipal engineering, metallurgy
Measurement equipment CPA, CCCF, Flameproof, Intrinsic Safety (IS), IP66 protection, Mine safety, Coal safety, ROSH, SIL2, CE, ATEX, IEC
1. Installation equipment: Select Wall-Mounted, Rod, Ceiling or Pipeline Installation method 2. Power supply connection: connect to 12~ 36VDC power supply (typical 24VDC), optional external battery 3. signal output settings: configure wired signal (such as 4-20mA, RS-485) or wireless signal (such as WIFI, 4G) 4. Parameter configuration: set alarm values, server ports, etc. through infrared remote control or remote IoT 5. Start detection: The device automatically starts gas and temperature Humidity detection, and the display screen displays data in real time 6. Remote monitoring: Connect to the Empaer server to realize remote monitoring and alarm management of mobile phones or computers 7. Maintenance calibration: regular calibration (recommended cycle of 1 year), support remote calibration and program upgrade
* The power supply voltage range is 12~ 36VDC, the typical value is 24VDC, to avoid overvoltage use * Ensure Protection Rating IP66 during installation to prevent water and dust from entering * Ambient Temperature -40~ 55 ℃, Humidity 10% -95% RH (no condensation), avoid extreme conditions * Use infrared remote control or remote IoT operation, follow the interface guidelines to prevent misoperation * Regularly check the status of the Sensor, pay attention to the Sensor expiration reminder and calibration cycle * Wireless communication function is optional, and the specific support type needs to be consulted by customer service. * When installing separately, the maximum distance between the watch head and the Probe is 100 meters, beyond which you need to consult * Avoid use in strong electromagnetic interference environment to ensure anti-interference performance * Special models have anti-cross gas interference, general-purpose models may be weaker * Storage temperature -10~ 30 ° C to avoid high or low temperature storage affecting lifespan
[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
