$ 1014.00Ex works
Support simultaneous detection of 4 kinds of gases and Temperature Humidity, dual temperature Humidity compensation design, with 10 Meters visual distance high definition color screen, Response Time T90 ≤ national standard, suitable for a variety of Installation methods.
Category : Gas Detector
Brand : Empaer
SKU : NB049624
Service :The delivery and service By NBCLab.Com

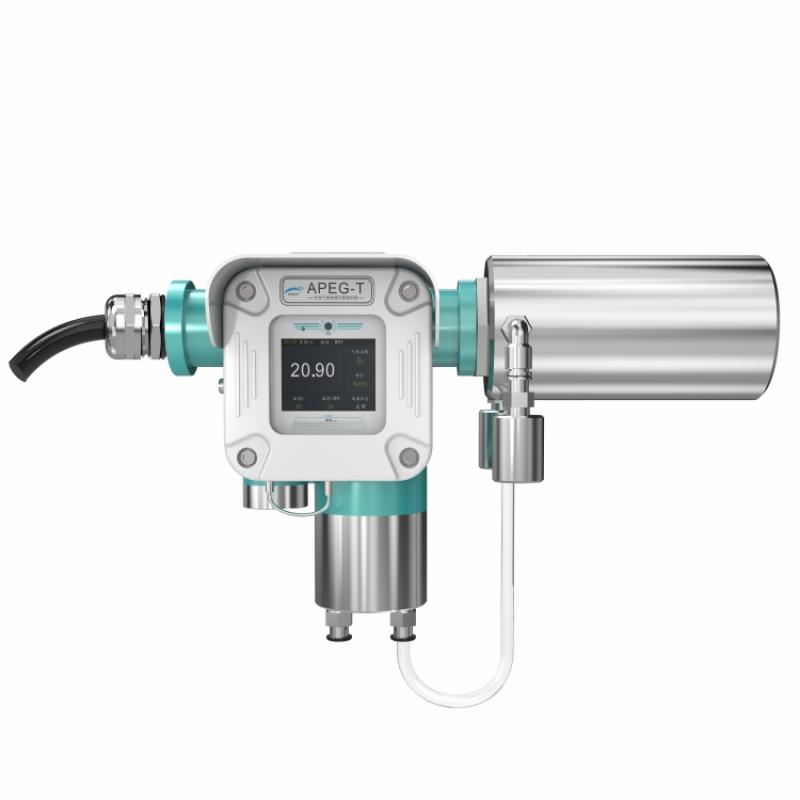

Pathfinder series fixed Formaldehyde detector (pump suction) is a high-performance online gas monitoring instrument launched by Empaer brand, which supports pumping and diffusion Sampling method, detects up to 4 gases at the same time and integrates temperature Humidity detection. The instrument can convert the detected gas concentration and temperature Humidity into standard signals and transmit them to the host computer. Built-in relays can control peripheral devices. After connecting to the server, it supports remote monitoring, alarm setting and calibration functions.
1. Support diffusion and pump-suction Sampling method, maximum simultaneous detection of 4 gas types, with temperature Humidity detection 2. Internet of Things function: Connect the Empaer server to realize remote monitoring, alarm reminder and alarm value setting of mobile phones and computers, support NB-IoT, 4G or WIFI networking remote parameter configuration and program upgrade 3. Independent design of shell molds, high brand recognition 4. High standard and high performance, with reference to a variety of industry standards, widely used and stable 5.2.0-Inch color display, viewing distance ≥ 10 meters 6. Complete certification: double explosion-proof certification, CPA certification, SIL2 certification, CE certification, CNAS metrology authentication 7. Support a variety of wireless communication options: GPRS, LORA, WIFI, ZIGBEE, NB-IOT, 4G, 5G 8. Double Temperature Humidity Design, Physical + Software Double Compensation, Real-time Detection Display Transmission 9. Bilingual Operating system 10. Support multiple Installation methods: Wall-Mounted, Rod, Ceiling, Pipeline 11. Black box storage function: operation record, alarm record, over-temperature use record, over-range use record 12. Complete reminder alarm function: Sensor expiration, super concentration, super temperature, super Humidity, fault, instrument calibration reminder 13. Operating interface guide function to prevent misoperation 14. Zero automatic correction function 15. Waterproof, dustproof, anti-static, anti-electromagnetic interference, special anti-cross gas interference
The instrument detects the concentration and temperature Humidity of formaldehyde and other gases by sampling by pump suction or diffusion, and converts the detection data into standard signals (such as 4-20mA, RS-485, etc.) and transmits them to the upper computer such as PLC, DCS, alarm control host, etc., to achieve unified display management and control. Built-in relays can control peripheral equipment such as sound and light alarms, fans, solenoid valves, etc.
Petroleum and petrochemical, mining, gas, aerospace and military, chemical industry, electric power, scientific research institutes, municipal engineering, metallurgy
Measurement equipment CPA, CCCF, Flameproof, Intrinsic Safety (IS), IP66 protection, Mine safety, Coal safety, ROSH, SIL2, CE, ATEX, IEC
1. Installation: Select Wall-Mounted, Rod, Ceiling or Pipeline Installation method 2. Power supply: connect 12~ 36VDC power supply (typical 24VDC) or optional external battery 3. Sampling: Set the pump suction or diffusion Sampling method 4. Networking: Optional WIFI, LORA, GPRS/4G/NB-IoT, 5G wireless connection 5. Parameter configuration: set alarm values, server ports, etc. through infrared remote control or remote IoT 6. Monitoring: Real-time display of gas concentration and Temperature Humidity data 7. Maintenance: Regular calibration (recommended cycle of 1 year), support remote calibration and program upgrades
• Ambient Temperature: -40~ 55 ℃, Storage Temperature: -10~ 30 ℃ • Environmental humidity: 10% -95% RH (no condensation) • Operating Pressure: 86-106KPA • Protection Rating IP66, Explosion-proof level Exd II C T6, EX TD A21 • Power consumption < 2W, depending on Sensor • The maximum length of the split is 100 meters, please consult customer service for details. • Parameters such as detection accuracy and Response Time need to be confirmed by consulting customer service • The recommended calibration period is 1 year • Service life: Sensor is determined by the detection principle, Miscellaneous parts ≥ 5 years
[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
