$ 684.00Ex works
Supports simultaneous detection of 4 gases, integrated temperature and Humidity compensation, with Internet of Things remote monitoring function, Response Time T90 ≤ national standard, Protection Rating IP66, suitable for a variety of Installation methods.
Category : Gas Detector
Brand : Empaer
SKU : NB049625
Service :The delivery and service By NBCLab.Com

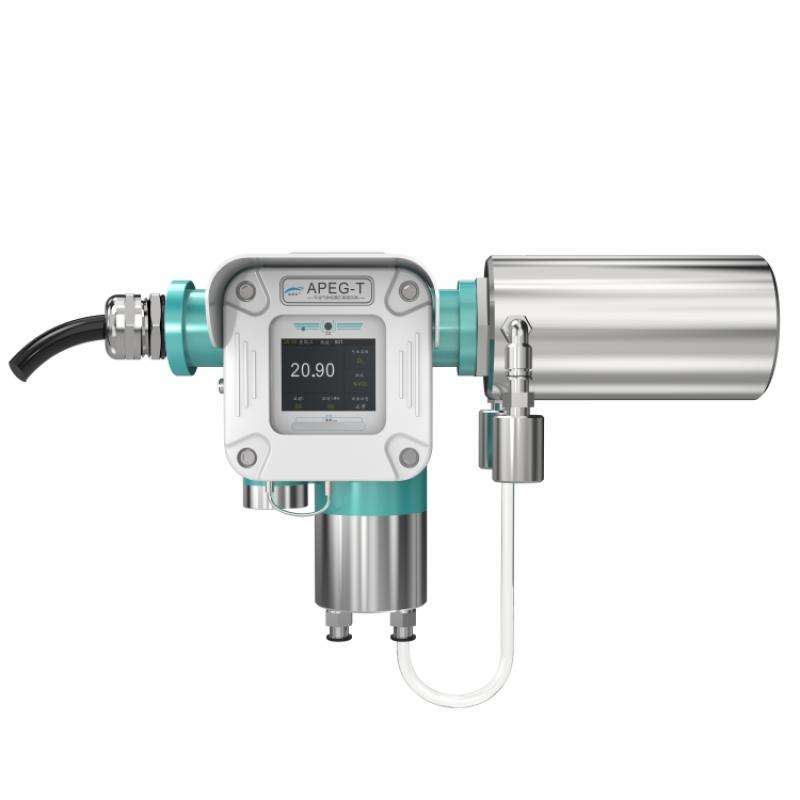

The Pathfinder series stationary methane detector (pump suction) is a high-performance online gas monitoring instrument launched by the Empaer brand, which supports the simultaneous detection of up to 4 gases and integrates temperature Humidity detection. The product can convert the detected gas concentration and temperature Humidity into standard signals and transmit them to the host computer system. The built-in relay can control peripheral equipment, and can realize remote monitoring, alarm setting and calibration functions through connecting to the server. The products are divided into general-purpose and special-purpose models, suitable for petroleum and petrochemical, mining, gas, aerospace and military, chemical, electric power, scientific research institutes, municipal engineering, metallurgy and other industries.
1. Support diffusion and pump-suction Sampling method, maximum simultaneous detection of 4 gases and temperature Humidity detection 2. Internet of Things function: can be connected to the server to realize remote monitoring of mobile phones and computers, alarm reminders and parameter settings 3. Independent design of shell molds, high brand recognition 4. High Standard High Performance, Wide Application, Stable Product 5. Ultra high definition 2.0 inch color display, viewing distance of 10 meters 6. Complete certification: double explosion-proof certification, CPA certification, SIL2 certification, CE certification, CNAS metrology authentication 7. Support multiple wireless Communication modes: GPRS, LORA, WIFI, ZIGBEE, NB-IOT, 4G, 5G, etc 8. Double Temperature Humidity Design, Physical + Software Double Temperature Humidity Compensation 9. Bilingual Operating system 10. Support a variety of Installation methods: Wall-Mounted, Rod, Ceiling, Pipeline, etc 11. Black box storage function: operation record, alarm record, over-temperature and over-range use record 12. Complete reminder and alarm functions: Sensor expiration, super concentration, super temperature, super Humidity, fault, calibration reminder, etc 13. Operating interface with guide function to prevent misoperation 14. Zero automatic correction function 15. Waterproof, dustproof, anti-static, anti-electromagnetic interference, special anti-cross gas interference
The product collects environment gas by pump suction or diffusion, converts the detected gas concentration and temperature Humidity into corresponding standard signals (such as 4-20mA, RS-485, etc.), and then transmits it to PLC, DCS, alarm control host and other host computers for unified display management and control. Built-in relays can control sound and light alarms, fans, solenoid valves and other peripheral equipment to realize intelligent Gas detection Alarm Control system.
Petroleum and petrochemical, mining, gas, aerospace and military, chemical industry, electric power, scientific research institutes, municipal engineering, metallurgy
Measurement equipment CPA, CCCF, Flameproof, Intrinsic Safety (IS), IP66 protection, Mine safety, Coal safety, ROSH, SIL2, CE, ATEX, IEC
1. Select the appropriate Installation method (Wall-Mounted, Rod, Ceiling or Pipeline) for installation 2. Connect power supply (12~ 36VDC, typical 24VDC) 3. Connect wired signal output or wireless communication module as needed 4. Parameter setting through infrared remote control or remote IoT 5. Periodic calibration (recommended cycle of 1 year) 6. Software upgrades can be carried out through remote IoT OTA upgrades or local installation packages
• Working ambient temperature range is -40~ 55 ℃, storage temperature is -10~ 30 ℃ • Environmental humidity range of 10% -95% RH (no condensation) • Operating Pressure Range 86-106KPA • Protection Rating IP66, Explosion-proof level Exd II C T6, EX TD A21 • Power consumption < 2W, depending on Sensor • The maximum length of the split body supports 100 meters, please consult customer service for details. • Sensor service life is determined by the detection principle, Miscellaneous parts ≥ 5 years The recommended calibration period is one year • Specific technical parameters such as detection principle, resolution, etc. need to consult the customer service of the mall
[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
