$ 1037.00Ex works
Supports simultaneous detection of 4 gases and integrated temperature Humidity monitoring, adopts pump suction and diffusion double Sampling method, has IoT remote monitoring function, Protection Rating IP66, Operating temperature range -40~ 55 ℃.
Category : Gas Detector
Brand : Empaer
SKU : NB049627
Service :The delivery and service By NBCLab.Com

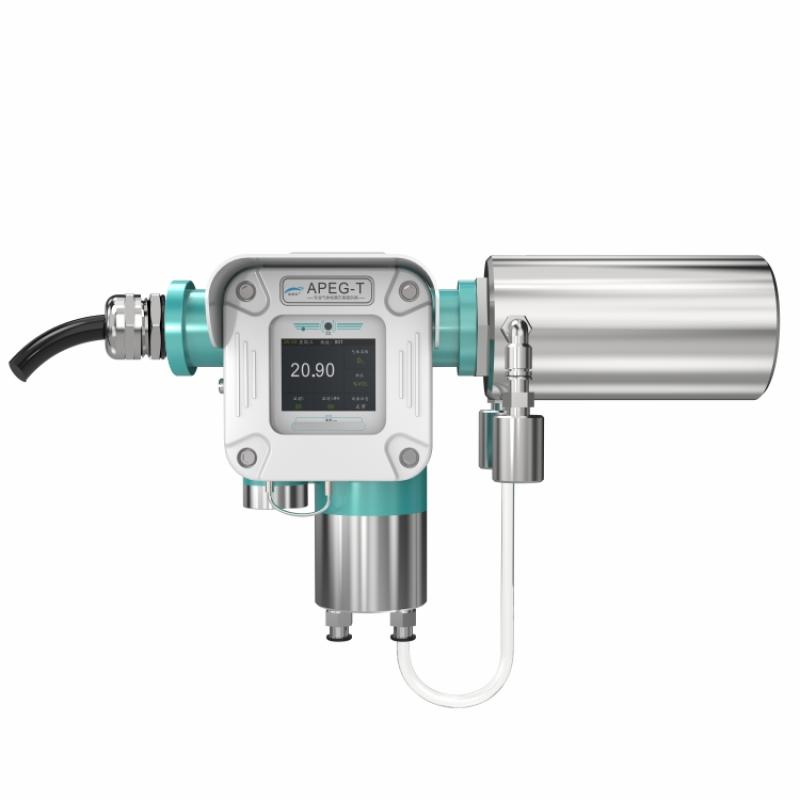

Pathfinder series stationary ozone detector (pump suction) is a high-performance, fully functional mid-to-high-end on-site gas monitoring instrument launched by Empaer brand. The instrument supports two Sampling methods of pump suction and diffusion, can detect up to 4 gases at the same time, and integrates the function of temperature and Humidity detection. It can convert the detected gas concentration and temperature and Humidity into standard signals and transmit them to the host computer system. Built-in relays can control peripheral devices, and have Internet of Things functions to realize remote monitoring and setting.
1. Support diffusion and pump-suction Sampling method, maximum simultaneous detection of 4 kinds of gases, with temperature Humidity detection 2. Internet of Things function, support remote monitoring, alarm reminders and parameter settings 3. Independent design of shell molds, high brand recognition 4. High Standard High Performance, Wide Application 5.2.0 inch color high definition display, viewing distance of 10 meters 6. Complete certification, including dual explosion-proof certification, CPA certification, etc 7. Support multiple Wireless Communication modes 8. Double Temperature Humidity Design, Physical + Software Double Compensation 9. Bilingual Operating system 10. Supports multiple Installation methods 11. Black box storage function 12. Complete reminder and alarm functions 13. Operating interface with guide function 14. Zero automatic correction function 15. Waterproof, dustproof, anti-static, anti-electromagnetic interference
The detector converts the gas concentration and temperature Humidity detected on site into corresponding standard signals (such as 4-20mA, RS-485, etc.) through pumping or diffusion sampling, and then transmits the signal to the PLC, DCS, alarm control host and other host computers for unified display management and control, forming an intelligent Gas detection Alarm Control system.
Petroleum and petrochemical, mining, gas, aerospace and military, chemical industry, electric power, scientific research institutes, municipal engineering, metallurgy
Measurement equipment CPA, CCCF, Flameproof, Intrinsic Safety (IS), IP66 protection, Mine safety, Coal safety, ROSH, SIL2, CE, ATEX, IEC
1. Select Installation method (Wall-Mounted, Rod, Pipeline, etc.) 2. Connect the power supply (12-36VDC) 3. Sampling method (pump suction or diffusion) 4. Parameter setting through infrared remote control or remote IoT 5. Connect the host computer system for signal transmission 6. Connect peripheral control devices as required
The recommended calibration period is one year • Working ambient temperature range is -40~ 55 ℃ • Environmental humidity range of 10% -95% RH (no condensation) • Operating Pressure Range 86-106KPA • Storage temperature is -10~ 30 ℃ • For specific technical parameters, please consult the customer service of the mall. • Optional functions need to be configured separately
[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
