$ 1037.00Ex works
Support 4 kinds of gas simultaneous detection, integrated temperature Humidity monitoring, physical + software double revisit Humidity compensation, with zero automatic correction function, Response Time T90 ≤ national standard, detection accuracy ≤ +/- 3% FS.
Category : Gas Detector
Brand : Empaer
SKU : NB049629
Service :The delivery and service By NBCLab.Com

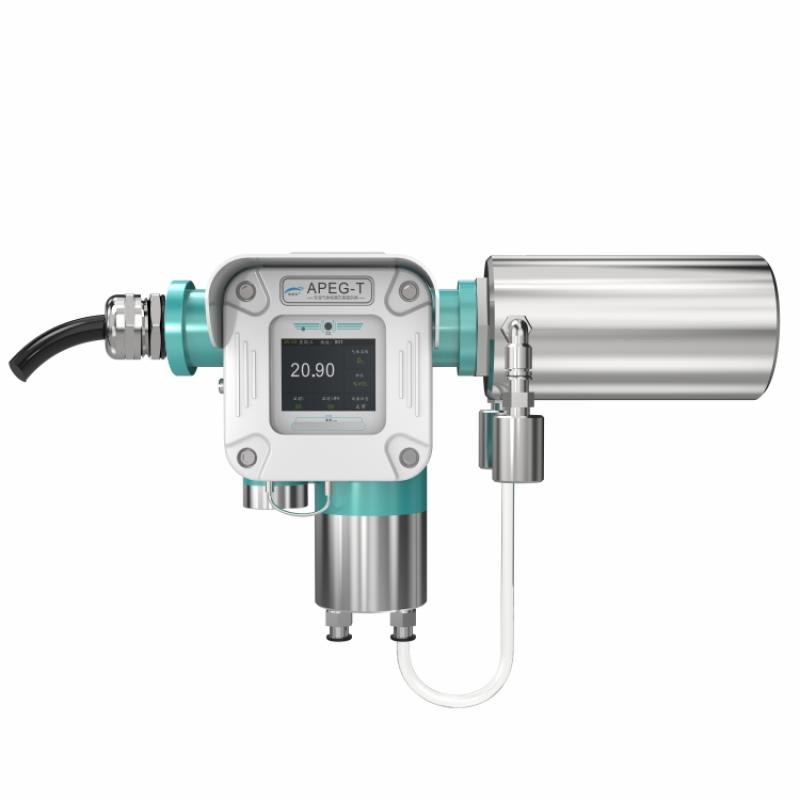

Pathfinder series stationary sulfur dioxide detector (pump suction) is a high-performance, fully functional mid-to-high-end on-site gas monitoring instrument launched by Empaer brand, supporting two Sampling methods of pump suction and diffusion. The instrument supports the detection of up to 4 gases at the same time, and integrates temperature Humidity detection. It can convert the detected gas concentration and temperature Humidity into standard signals and transmit them to the host computer. Built-in relays can control peripheral devices. For example, connecting to the Empaer server can realize functions such as remote monitoring, alarm setting and calibration.
1. Support diffusion and pump-suction Sampling method, maximum simultaneous detection of 4 gas types, with temperature Humidity detection 2. Internet of Things function: It can be connected to the Empaer server to realize remote monitoring, alarm reminder and alarm value setting of mobile phones and computers, and supports remote parameter configuration and program upgrade of NB-IoT, 4G or WIFI networking 3. Independent design of shell molds, high brand recognition 4. High standard and high performance, with reference to a variety of industry standards, widely used and stable 5. Ultra high definition 2.0 inch color display, visual distance ≥ 10 meters 6. Complete certification: double explosion-proof certification, CPA certification, SIL2 certification, CE certification, CNAS metrology authentication 7. Support a variety of wireless communication options: GPRS, LORA, WIFI, ZIGBEE, NB-IOT, 4G, 5G 8. Double temperature Humidity design, physical + software double revisit Humidity compensation, real-time detection and display 9. Bilingual Operating system 10. Support multiple Installation methods: Wall-Mounted, Rod, Ceiling, Pipeline 11. Black box storage function: operation record, alarm record, over-temperature use record, over-range use record 12. Complete reminder and alarm functions: Sensor expiration reminder, super concentration alarm, super temperature alarm, super Humidity alarm, fault alarm, instrument calibration reminder 13. Operating interface guide function to prevent misoperation 14. Zero automatic correction function 15. Waterproof, dustproof, anti-static, anti-electromagnetic interference, special anti-cross gas interference
The detector converts the gas concentration and temperature Humidity detected on site into corresponding standard signals (such as 4-20mA, RS-485, etc.), and then transmits it to the PLC, DCS, alarm control host and other host computers for unified display, management and control, forming an intelligent Gas detection Alarm Control system. Built-in relays can control peripheral sound and light alarms, fans, solenoid valves and other equipment.
Petroleum and petrochemical, mining, gas, aerospace and military, chemical industry, electric power, scientific research institutes, municipal engineering, metallurgy
Measurement equipment CPA, CCCF, Flameproof, Intrinsic Safety (IS), IP66 protection, Mine safety, Coal safety, ROSH, SIL2, CE, ATEX, IEC
1. Installation equipment: Select Wall-Mounted, Rod, Ceiling or Pipeline Installation method 2. Connect power supply: use 12~ 36VDC power supply (typical 24VDC), optional external battery 3. Configuration parameters: Set detection parameters and alarm values through infrared remote control or remote IoT 4. Start detection: The instrument automatically starts gas concentration and temperature Humidity detection 5. Monitoring data: View test results in real time through the display screen or remote connection (such as mobile phone, computer) 6. Processing alarm: When abnormal concentration and temperature are detected, the instrument automatically triggers the alarm and can control peripheral equipment 7. Regular maintenance: It is recommended to perform calibration once a year, using the automatic calibration function or remote calibration
* Ambient Temperature in the range of -40~ 55 ℃, Humidity 10% -95% RH without condensation * Avoid use in environments with strong electromagnetic interference to ensure anti-electromagnetic interference performance * Regularly check the status of the Sensor, pay attention to the Sensor expiration reminder, and replace it in time * Ensure a stable network connection when using remote functions, such as NB-IoT, 4G or WIFI The calibration period is recommended to be 1 year, and the zero-point automatic correction function can be used * Protection Rating IP66, but should avoid prolonged exposure to extreme weather * Power consumption < 2W, depending on the Sensor, consult customer service for details * When installing separately, the maximum distance between the watch head and the Probe is 100 meters. Please consult customer service for details. * Follow the interface guidelines during operation to prevent equipment failure due to misoperation
[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
