$ 23977.00Ex works
Application width 500mm, wet film thickness 0.005-3mm adjustable, using servo drive and PLC control, with automatic tension and correction function, suitable for a variety of coils and Coating types.
Category : R2R Coater
Brand : BoLaiDe
SKU : NB049631
Service :The delivery and service By NBCLab.Com
Rgdc-01.2/500 immersion coil Coater is a continuous experimental Film Applicator with unwinding, scraping, dip coating and winding functions. The application width is 500mm and the wet film thickness is 0.005-3mm. The equipment adjusts the unwinding tension by controlling the torque of the unwinding shaft, and adjusts the winding tension by controlling the torque of the reeling shaft. The main drive roller swirl/spin linear speed is used as the main driving speed to realize belt control.
1. Substrate tension control, belt stability 2. Main drive servo drive, speed can be set 3. PLC control, HMI operation, easy to use 4. Equipped with an automatic deviation correction device to ensure material alignment 5. Using corrosion resistant stainless steel dip coating material 6. Spreader thickness can be precisely adjusted, Graduation 0.001mm

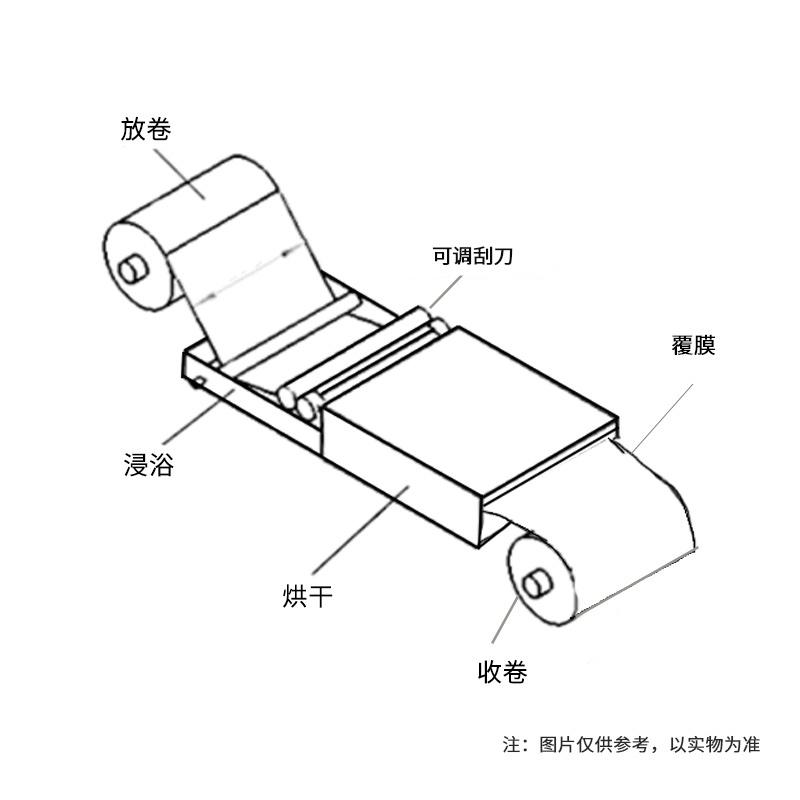

The equipment adjusts the unwinding tension by controlling the torque of the unwinding shaft, adjusts the unwinding tension by controlling the torque of the reeling shaft, and realizes belt control with the swirl/spin linear speed of the main drive roller. The Spreader process includes unwinding → soaking → scraping → drying → Laminating → rewinding, and adopts the coating method of soaking + scraping.
Plastic film, paper, non-woven fabric Spreader
1. Drag the substrate by hand between the upper and lower rollers of the traction roller 2. Tighten the handwheel on the rack to make the rubber ring of the upper roller of the traction roller contact the lower roller 3. Adjust the thickness of the glue by swirling/spinning the left and right handwheels clockwise or counterclockwise 4. Determine the specific thickness according to the percentage table instructions 5. The traction roller group pulls the substrate over through the power transmission to complete the Spreader work
• The solution cannot react chemically with the dip coating material • Spreader thickness adjustment should be determined according to the indicator • Dimensions and weight of equipment are subject to actual customization • Need to provide 0.5~ 0.8MPa compressed air as a gas source
