$ 437.00Ex works
It can simultaneously detect 4 kinds of gases and integrate temperature and humidity monitoring, support diffusion and pump sampling methods, with Internet of Things remote monitoring function, Protection Rating IP66, operation temperature range -40~ 55 ℃.
Category : Gas Detector
Brand : Empaer
SKU : NB049636
Service :The delivery and service By NBCLab.Com

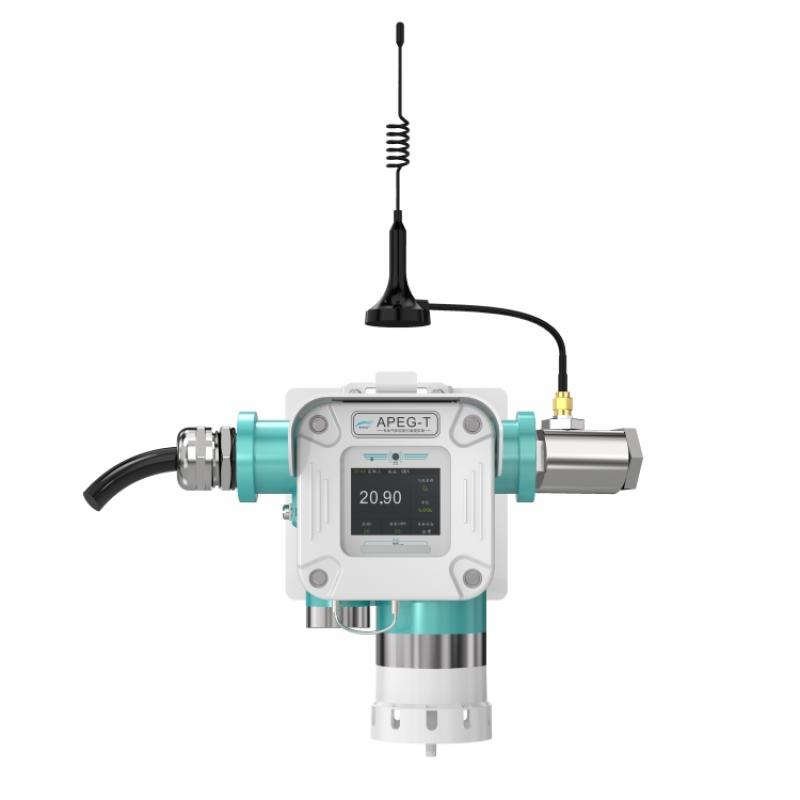

Pathfinder Series Stationary Oxygen Detector (4G) is a high-performance, fully functional mid-to-high-end on-site gas monitoring instrument that supports simultaneous detection of up to 4 gases and integrated temperature and humidity detection. The product can convert the detected gas concentration and temperature and humidity into standard signals for transmission to the host computer. Built-in relays can control peripheral equipment, and support remote monitoring, alarm setting and calibration functions by connecting to the Empaer server. The product is suitable for petroleum and petrochemical, mining, gas, aerospace and military, chemical, electric power, scientific research institutes, municipal engineering, metallurgy and other industries.
1. Support diffusion and pump sampling methods, up to 4 kinds of gases are detected simultaneously, with temperature and humidity detection 2. Internet of Things function: The server can be connected to realize remote monitoring, alarm reminder and parameter configuration, and supports NB-IoT, 4G or WIFI networking 3. Independent design of shell molds, high brand recognition 4. High standard and high performance, with reference to a variety of industry standards, widely used and stable 5. Ultra high definition 2.0 inch color display, visual distance ≥ 10 meters 6. Complete certification: double explosion-proof certification, CPA certification, SIL2 certification, CE certification, CNAS metrology authentication 7. Support a variety of wireless communications: GPRS, LORA, WIFI, ZIGBEE, NB-IoT, 4G, 5G (optional) 8. Dual temperature and humidity design, physical + software dual compensation, real-time detection and display 9. Chinese and English bilingual operating system 10. Multi-application scenario installation method: Wall-Mounted, rod type, ceiling type, pipeline type, etc 11. Black box storage function: operation record, alarm record, over-temperature use record, over-range use record 12. Complete reminder and alarm functions: Sensor expiration, super concentration, super temperature, super humidity, fault, calibration reminder, etc 13. Operation interface guide function to prevent misoperation 14. Zero automatic correction function 15. Waterproof, dustproof, anti-static, anti-electromagnetic interference, special anti-cross gas interference
The product is converted into standard signals (such as 4-20mA, RS-485, etc.) by detecting the gas concentration and temperature and humidity on site, and transmitted to the PLC, DCS, alarm control host and other host computers for unified display management and control to form an intelligent Gas detection alarm control system. Built-in relays can control sound and light alarms, fans, solenoid valves and other peripheral equipment.
Petroleum and petrochemical, mining, gas, aerospace and military, chemical industry, electric power, scientific research institutes, municipal engineering, metallurgy
Measurement equipment CPA, CCCF, Flameproof, Intrinsic Safety (IS), IP66 protection, Mine safety, Coal safety, ROSH, SIL2, CE, ATEX, IEC
1. Installation equipment: choose Wall-Mounted, rod, ceiling or pipeline installation method 2. Connect power supply: use 12~ 36VDC power supply (typical 24VDC) or optional external battery 3. Configuration parameters: set alarm values, server ports, etc. through infrared remote control or remote IoT 4. Start detection: the device automatically starts gas concentration and temperature and humidity detection 5. Remote monitoring: Connect to the Empaer server for remote monitoring and alarm management 6. Maintenance calibration: regular calibration (recommended cycle of 1 year), support remote calibration function
* Ambient Temperature in the range of -40~ 55 ℃, humidity 10% -95% RH no condensation * Before use, confirm that the power supply voltage is between 12 and 36VDC to avoid overvoltage or undervoltage * Regularly check the status of the Sensor, pay attention to the Sensor expiration reminder and calibration reminder * Ensure stable network connection when operating remotely, such as NB-IoT, 4G or WIFI * Avoid use in strong electromagnetic interference environment to ensure anti-interference performance * Special models are suitable for scenarios with cross-gas interference, general-purpose models may not be applicable * When installing separately, the distance between the watch head and the Probe does not exceed 100 meters * Pay attention to explosion-proof level and Protection Rating requirements during maintenance to ensure safe operation
[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
