$ 426.00Ex works
It can simultaneously detect 4 kinds of gases and integrate temperature and humidity detection, support diffusion and pump sampling methods, with Internet of Things remote monitoring function, Response Time T90 ≤ national standard, Protection Rating IP66.
Category : Gas Detector
Brand : Empaer
SKU : NB049639
Service :The delivery and service By NBCLab.Com

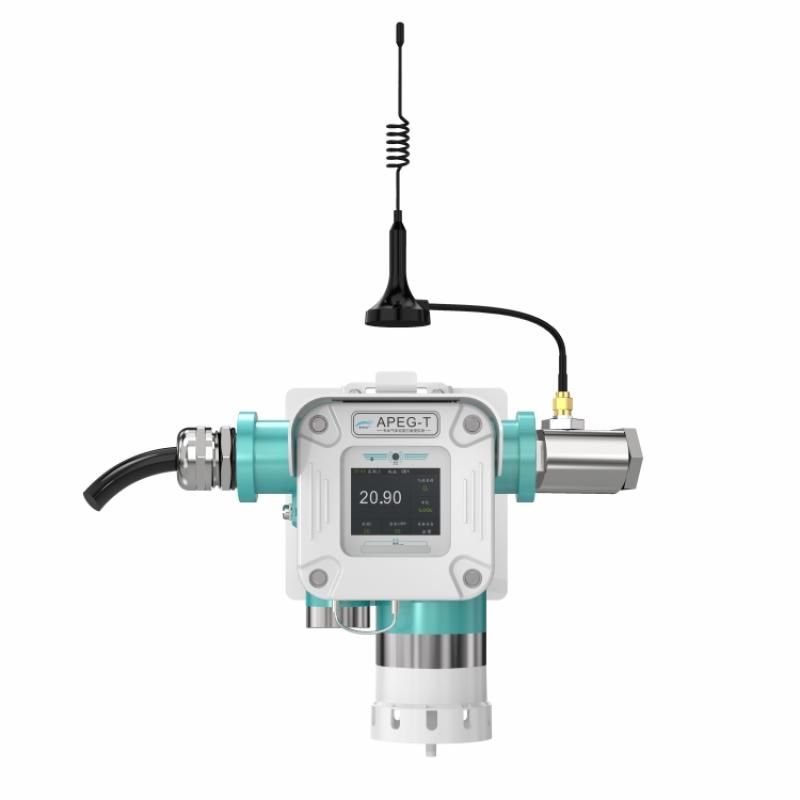

Pathfinder Series Fixed Hydrogen Detector (4G) is a high-performance, fully functional mid-to-high-end on-site gas monitoring instrument launched by Empaer brand. It supports the detection of up to 4 gases at the same time, and has its own temperature and humidity detection. It can convert the detected gas concentration and temperature and humidity into standard signals and transmit them to the host computer. Built-in relays can control peripheral devices. After connecting to the server, remote monitoring, alarm setting and calibration are realized. It is suitable for petroleum and petrochemical, mining, gas, aerospace military, chemical, electric power, scientific research institutes, municipal engineering, metallurgy and other industries.
1. Support diffusion and pump sampling methods, up to 4 kinds of gases are detected simultaneously, with temperature and humidity detection 2. Internet of Things function: Connect the Empaer server to realize remote monitoring, alarm reminder and alarm value setting of mobile phones and computers, support NB-IoT, 4G or WIFI networking remote parameter configuration and program upgrade 3. Independent design of shell molds, high brand recognition 4. High standard and high performance, with reference to a variety of industry standards, widely used and stable 5. Ultra high definition 2.0 inch color display, viewing distance of 10 meters 6. Complete certification: double explosion-proof certification, CPA certification, SIL2 certification, CE certification, CNAS metrology authentication 7. Support a variety of wireless communications: GPRS, LORA, WIFI, ZIGBEE, NB-LOT, 4G, 5G (optional) 8. Dual temperature and humidity design, physical + software dual compensation, real-time detection and display transmission 9. Bilingual operating system: switch between Chinese and English 10. Support a variety of installation methods: Wall-Mounted, rod, ceiling, pipeline, etc 11. Black box storage function: operation record, alarm record, over-temperature use record, over-range use record 12. Reminder and alarm functions are complete: Sensor expiration, super concentration, super temperature, super humidity, fault, instrument calibration reminder, etc 13. Operation interface guide function to prevent misoperation 14. Zero automatic correction function 15. Waterproof, dustproof, anti-static, anti-electromagnetic interference, special anti-cross gas interference
The Pathfinder series fixed hydrogen detector detects the gas concentration and temperature and humidity on site through Sensor, converts it into standard signals (such as 4-20mA, RS-485, etc.), and transmits it to PLC, DCS, alarm control host and other host computers for unified display management and control, forming an intelligent Gas detection alarm control system. Built-in relays can control sound and light alarms, fans, solenoid valves and other peripheral equipment.
Petroleum and petrochemical, mining, gas, aerospace and military, chemical industry, electric power, scientific research institutes, municipal engineering, metallurgy
Measurement equipment CPA, CCCF, Flameproof, Intrinsic Safety (IS), IP66 protection, Mine safety, Coal safety, ROSH, SIL2, CE, ATEX, IEC
1. Installation equipment: choose Wall-Mounted, rod, ceiling or pipeline installation method 2. Connect power supply: use 12~ 36VDC power supply (typical 24VDC) or optional external battery 3. Setting of sampling: choose diffusion, flow, pipeline or pump sampling method 4. signal output: configure wired signal (such as 4-20mA, RS-485) or wireless signal (such as WIFI, 4G) 5. Parameter settings: Set alarm values, server ports and other parameters through infrared remote control or remote IoT 6. Remote monitoring: Connect to the Empaer server for remote monitoring and calibration 7. Upgrade and maintenance: Support remote OTA upgrade or local installation package self-upgrade
The recommended calibration period is one year • Working ambient temperature range is -40~ 55 ℃, storage temperature is -10~ 30 ℃ • The working environment humidity is 10% -95% RH to avoid condensation • Operating Pressure Range 86-106KPA • Power consumption is less than 2W, depending on the Sensor • The maximum length of the split body supports 100 meters, please consult customer service for details. • Wireless communication function is optional, you need to choose according to your needs • Protection Rating IP66 during installation to ensure waterproof and dustproof • Avoid over-range and over-temperature operation during use • Regularly check the life of the Sensor, Miscellaneous components have a service life of ≥ 5 years
[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
