$ 388.00Ex works
Maximum support 4 kinds of gas simultaneous detection, integrated temperature and humidity monitoring and physical + software double compensation, using dual temperature and humidity design and 10 Meters visual distance high definition color screen, Protection Rating up to IP66 and operation temperature range -40~ 55 ℃.
Category : Gas Detector
Brand : Empaer
SKU : NB049641
Service :The delivery and service By NBCLab.Com

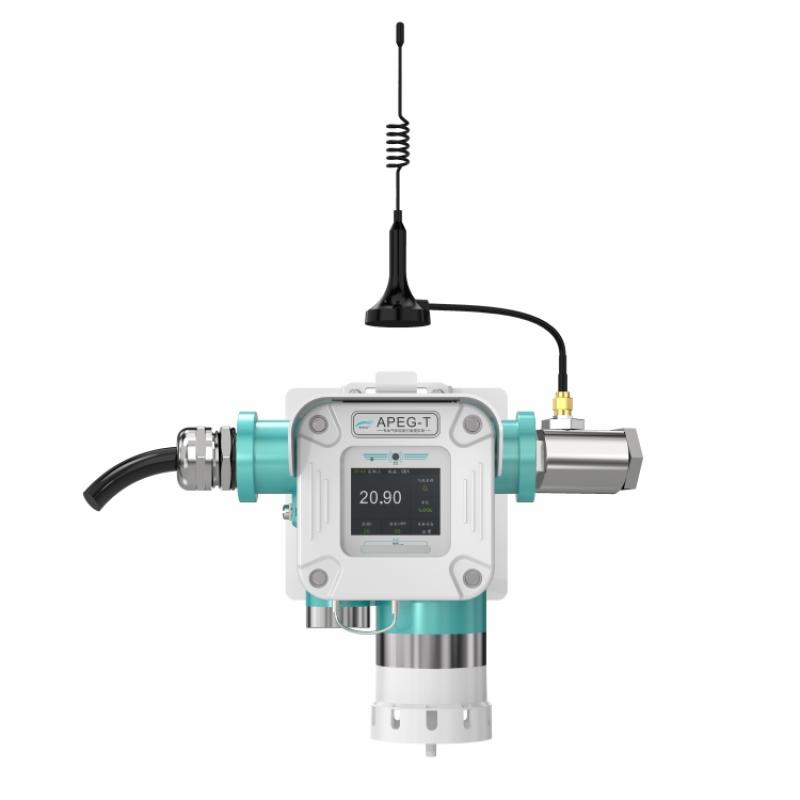

Pathfinder Series Fixed Methane Detector (4G) is a high-performance and fully functional mid-to-high-end on-site gas monitoring instrument launched by Empaer brand. It supports the detection of 4 gases at the same time and has its own temperature and humidity detection. The products are divided into general-purpose and special-purpose models. The special models are customized according to customer application scenarios, which is more professional and reliable. Its main function is to convert the detected gas concentration and temperature and humidity into standard signals, which are transmitted to PLC, DCS and other host computers for unified management. The built-in relay can control sound and light alarms, fans and other equipment. Connect to the Empaer server to realize remote monitoring, alarm setting and calibration.
1. Support diffusion and pump sampling methods, maximum simultaneous detection of 4 gas types, integrated temperature and humidity detection 2. Internet of Things function: It can be connected to the Empaer server to realize remote monitoring of mobile phones and computers, alarm reminders, alarm value settings, etc., and supports NB-IoT, 4G or WIFI networking for remote parameter configuration and program upgrade 3. Independent design of shell molds, high brand recognition 4. High standard and high performance, with reference to a variety of industry standards, widely used and stable 5. Ultra high definition 2.0 inch color display, viewing distance of 10 meters 6. Complete certification: double explosion-proof certification, CPA certification, SIL2 certification, CE certification, CNAS metrology authentication 7. Support a variety of wireless communications: GPRS, LORA, WIFI, ZIGBEE, NB-IoT, 4G, 5G, etc. (optional) 8. Dual temperature and humidity design, physical + software dual compensation, real-time detection and display transmission 9. Chinese and English bilingual operating system 10. Support Wall-Mounted, rod, ceiling, pipeline and other installation methods 11. Black box storage function: operation record, alarm record, over-temperature use record, over-range use record 12. Reminder and alarm functions are complete: Sensor expiration reminder, super concentration alarm, super temperature alarm, super humidity alarm, fault alarm, instrument calibration reminder, etc 13. Operation interface guide function to prevent misoperation 14. Zero automatic correction function 15. Waterproof, dustproof, anti-static, anti-electromagnetic interference, special anti-cross gas interference
The Pathfinder series fixed Gas detector detects the gas concentration and temperature and humidity on site through the Sensor, converts it into a standard signal (such as 4-20mA, RS-485, etc.), and then transmits it to the PLC, DCS, alarm control host and other host computers for unified display, management and control. Built-in relays can control peripheral devices such as sound and light alarms, fans, solenoid valves. After connecting to the Empaer server, remote monitoring, alarm value setting and calibration functions can be realized.
Petroleum and petrochemical, mining, gas, aerospace and military, chemical industry, electric power, scientific research institutes, municipal engineering, metallurgy
Measurement equipment CPA, CCCF, Flameproof, Intrinsic Safety (IS), IP66 protection, Mine safety, Coal safety, ROSH, SIL2, CE, ATEX, IEC
1. Installation equipment: choose Wall-Mounted, rod, ceiling or pipeline installation method 2. Connect power supply: use 12~ 36VDC power supply (typical 24VDC), optional external battery 3. Configuration parameters: set alarm values, server ports, etc. through infrared remote control or remote IoT 4. Start detection: the equipment automatically detects gas concentration and temperature and humidity, and outputs standard signals 5. Remote monitoring: Connect to the Empaer server to realize remote monitoring and control of mobile phones or computers 6. Maintenance calibration: regular calibration (recommended cycle of 1 year), support remote calibration and program upgrade
* Ambient Temperature in the range of -40~ 55 ℃, humidity 10% -95% RH (no condensation) * Avoid use at operating pressure 86-106KPA or extreme storage temperatures (-10-30 ° C) * Regularly check the life of the Sensor, the life of the Sensor is determined by the testing principle, Miscellaneous parts ≥ 5 years * Use infrared remote control or remote IoT operation, pay attention to prevent wrong operation, and follow the interface guidelines * Ensure Protection Rating IP66, waterproof and dustproof, use in explosive environments must meet the explosion protection level Exd II C T6, EX TD A21 * Ensure stable network connection during remote upgrade, support OTA upgrade or local installation package self-upgrade * Power consumption < 2W, depending on the Sensor, consult customer service for details
[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
