$ 740.00Ex works
Supports simultaneous detection of 4 gases and integrated temperature and humidity monitoring, adopts dual temperature and humidity compensation design, with a visual distance of 10 Meters, automatic zero correction and various alarm functions, operation temperature range -40~ 55 ℃.
Category : Gas Detector
Brand : Empaer
SKU : NB049642
Service :The delivery and service By NBCLab.Com

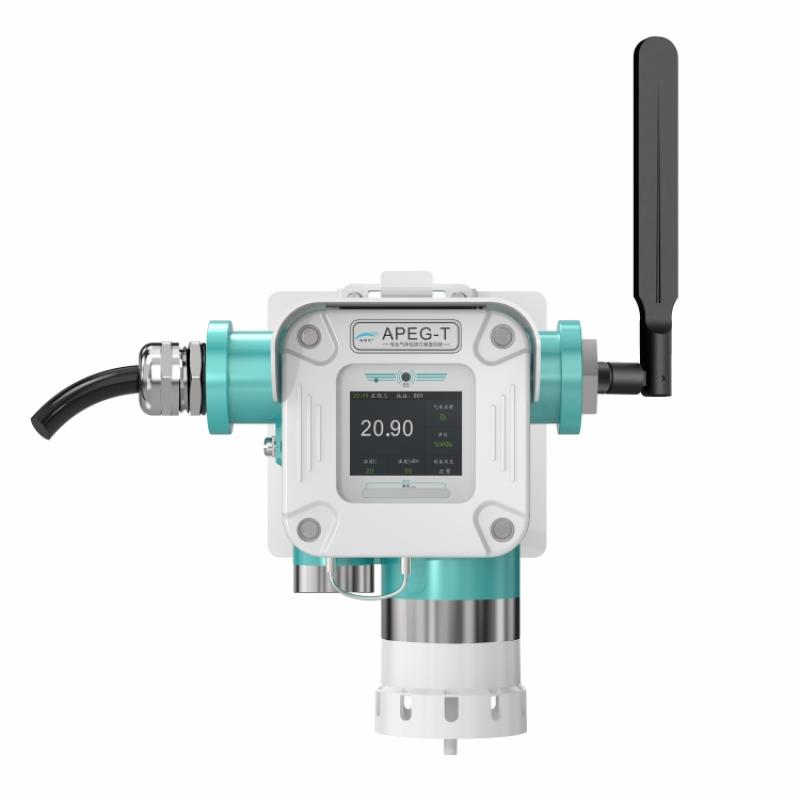

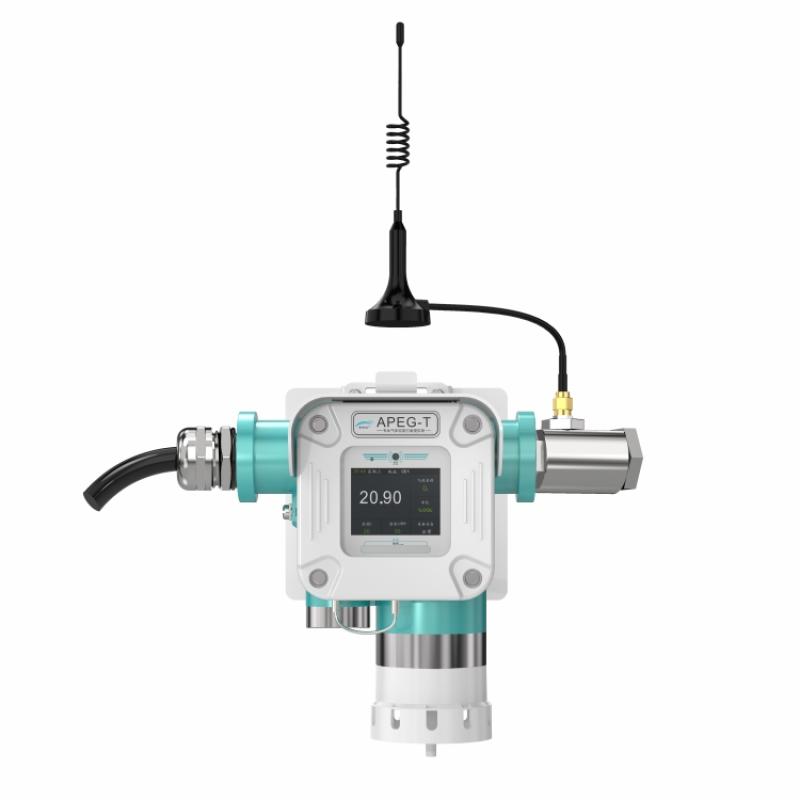

Pathfinder Series Fixed Ozone Detector (4G) is a high-performance, fully functional mid-to-high-end on-site gas monitoring instrument launched by Empaer brand. It supports the simultaneous detection of 4 gases and comes with its own temperature and humidity detection. The product is divided into general-purpose and special-purpose models. The special models are customized according to customer application scenarios, which is more professional and reliable. The main function is to convert the detected gas concentration and temperature and humidity into standard signals, which are transmitted to PLC, DCS and other host computers for unified management. The built-in relay can control peripheral devices such as sound and light alarms. After connecting to the Empaer server, it supports remote monitoring, alarm setting and calibration.
1. Support diffusion and pump sampling methods, maximum simultaneous detection of 4 gases, integrated temperature and humidity detection 2. Internet of Things function: remote monitoring, alarm reminder, parameter configuration and program upgrade through NB-IoT, 4G or WIFI networking 3. Independent design of shell molds, high brand recognition 4. High standard and high performance, with reference to a variety of industry standards, widely used and stable 5. Ultra high definition 2.0 inch color display, visual distance ≥ 10 meters 6. Complete certification: double explosion-proof certification, CPA certification, SIL2 certification, CE certification, CNAS metrology authentication 7. Support a variety of wireless communications: GPRS, LORA, WIFI, ZIGBEE, NB-IoT, 4G, 5G (optional) 8. Dual temperature and humidity design, physical + software dual compensation, real-time detection and display 9. Bilingual operating system: switch between Chinese and English 10. Multi-application scenario installation method: Wall-Mounted, rod type, ceiling type, pipeline type, etc 11. Black box storage function: operation record, alarm record, over-temperature use record, over-range use record 12. Reminder and alarm functions are complete: Sensor expiration reminder, super concentration alarm, super temperature alarm, super humidity alarm, fault alarm, instrument calibration reminder 13. Operation interface guidance function: user-friendly design to prevent misoperation 14. Zero automatic correction function 15. Waterproof, dustproof, anti-static, anti-electromagnetic interference, special anti-cross gas interference
Pathfinder Series Fixed Gas detector detects gas concentration and temperature and humidity, converts it into standard signals (such as 4-20mA, RS-485, etc.), and then transmits it to PLC, DCS, alarm control host and other host computers for unified display, management and control. Built-in relays can control peripheral devices such as sound and light alarms, fans, solenoid valves. After connecting to the Empaer server, it supports remote monitoring, alarm value setting and remote calibration.
Petroleum and petrochemical, mining, gas, aerospace and military, chemical industry, electric power, scientific research institutes, municipal engineering, metallurgy
Measurement equipment CPA, CCCF, Flameproof, Intrinsic Safety (IS), IP66 protection, Mine safety, Coal safety, ROSH, SIL2, CE, ATEX, IEC
1. Installation equipment: choose Wall-Mounted, rod, ceiling or pipeline installation method 2. Connect power supply: use 12~ 36VDC power supply (typical 24VDC), optional external battery 3. Configuration parameters: set alarm values, server ports, etc. through infrared remote control or remote IoT 4. Start detection: the equipment automatically detects gas concentration and temperature and humidity, and outputs standard signals 5. Remote monitoring: Connect to the Empaer server and view data and settings remotely through your mobile phone or computer 6. Maintenance calibration: It is recommended to calibrate once a year to support remote calibration and automatic zero correction
• Ambient Temperature between -40~ 55 ℃ and Humidity 10% -95% RH (no condensation) • Check the power supply voltage before use to avoid exceeding the range of 12~ 36VDC Calibration is carried out regularly, with a recommended period of 1 year to ensure detection accuracy • Avoid use in a strong electromagnetic interference environment, and the equipment meets the national standard anti-interference requirements • The special model has anti-cross gas interference function, and the general model needs to be used with caution in complex gas environments • Follow the interface guidelines during operation to prevent misoperation The storage temperature should be kept at -10 to 30 degrees Celsius to avoid extreme conditions affecting the life of the equipment • Equipment Protection Rating is IP66, but the optional sunshade and rain cover can enhance the reliability of outdoor use • Wireless communication function is optional and needs to be configured according to actual needs • Sensor life is determined by the detection principle, Miscellaneous parts service life ≥ 5 years
[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
