$ 740.00Ex works
Supports simultaneous detection of 4 gases and integrated temperature and humidity detection, adopts dual temperature and humidity compensation design, has Internet of Things remote monitoring function, Response Time T90 ≤ national standard, Protection Rating IP66.
Category : Gas Detector
Brand : Empaer
SKU : NB049643
Service :The delivery and service By NBCLab.Com

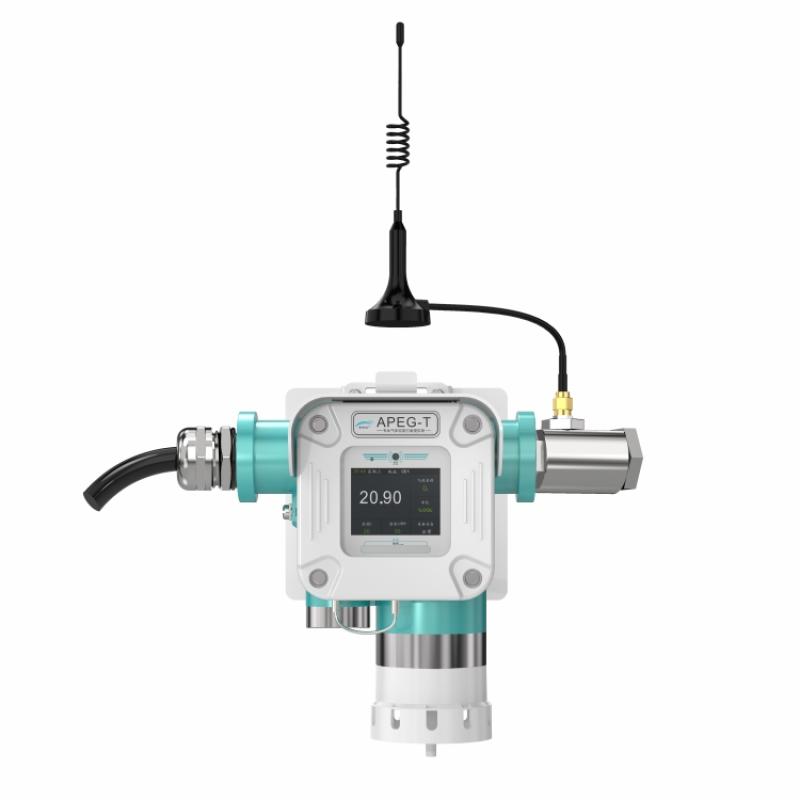

The Pathfinder Series Fixed Sulfur Dioxide Detector (4G) is a high-performance, fully functional mid-to-high-end on-site gas monitoring instrument that supports the simultaneous detection of up to 4 gases and integrates temperature and humidity detection. The product converts the detected gas concentration and temperature and humidity into standard signals and transmits them to the host computer to achieve unified display management and control. Built-in relays can control peripheral devices, and can realize remote monitoring, alarm setting and calibration functions by connecting to the Empaer server.
1. Support diffusion and pump sampling methods, maximum simultaneous detection of 4 gas types, with temperature and humidity detection 2. Internet of Things function: It can be connected to the Empaer server to realize remote monitoring, alarm reminder and alarm value setting of mobile phones and computers, and supports remote parameter configuration and program upgrade of NB-IoT, 4G or WIFI networking 3. The shell uses self-designed molds, with high brand recognition 4. High standard and high performance, with reference to a variety of industry standards, widely used and stable 5. Ultra high definition 2.0 inch color display, viewing distance of 10 meters 6. Complete certification: double explosion-proof certification, CPA certification, SIL2 certification, CE certification, CNAS metrology authentication 7. Support a variety of wireless communication options: GPRS, LORA, WIFI, ZIGBEE, NB-IoT, 4G, 5G 8. Dual temperature and humidity design, physical + software dual temperature and humidity compensation, real-time detection and display 9. Chinese and English bilingual operating system 10. Support a variety of installation methods: Wall-Mounted, Rod, Ceiling, Pipeline 11. Black box storage function: operation record, alarm record, over-temperature use record, over-range use record 12. Complete reminder and alarm functions: Sensor expiration reminder, super concentration alarm, super temperature alarm, super humidity alarm, fault alarm, instrument calibration reminder 13. Operation interface guide function to prevent misoperation 14. Zero automatic correction function 15. Waterproof, dustproof, anti-static, anti-electromagnetic interference, special anti-cross gas interference
The detector converts the gas concentration and temperature and humidity detected on site into corresponding standard signals (such as 4-20mA, RS-485, etc.), and then transmits it to the PLC, DCS, alarm control host and other host computers for unified display management and control, forming an intelligent Gas detection alarm control system. Built-in relays can control peripheral sound and light alarms, fans, solenoid valves and other equipment.
Petroleum and petrochemical, mining, gas, aerospace and military, chemical industry, electric power, scientific research institutes, municipal engineering, metallurgy
Measurement equipment CPA, CCCF, Flameproof, Intrinsic Safety (IS), IP66 protection, Mine safety, Coal safety, ROSH, SIL2, CE, ATEX, IEC
1. Installation equipment: choose Wall-Mounted, rod, ceiling or pipeline installation method 2. Connect power supply: use 12~ 36VDC power supply (typical 24VDC), optional external battery 3. Configuration parameters: set alarm values, server ports, etc. through infrared remote control or remote IoT 4. Start detection: the device automatically starts gas concentration and temperature and humidity detection 5. Remote monitoring: Connect to the Empaer server to realize remote monitoring and control of mobile phones or computers 6. Regular calibration: It is recommended to perform calibration once a year to support remote calibration function
It is recommended that the calibration period be 1 year to ensure detection accuracy • Working ambient temperature range is -40~ 55 ℃, storage temperature is -10~ 30 ℃, avoid overtemperature use • Working environment humidity is 10% -95% RH, no condensation conditions • Protection Rating IP66 during installation to ensure waterproof and dustproof • Use infrared remote control or remote IoT operation, follow the operation interface guidelines to prevent misoperation • The maximum length of the split body supports 100 meters, please consult customer service for details. • Power consumption is less than 2W, depending on the Sensor, consult customer service for specific information • Wireless communication function is optional and needs to be configured according to requirements
[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
