$ 479.00Ex works
With 4G Internet of Things remote configuration function, support -40~ 55 ℃ wide temperature operation, explosion-proof grade Exd II C T6, Protection Rating IP66, built-in relay can control peripheral equipment, with zero automatic correction and black box recording function.
Category : Gas Detector
Brand : Empaer
SKU : NB049649
Service :The delivery and service By NBCLab.Com

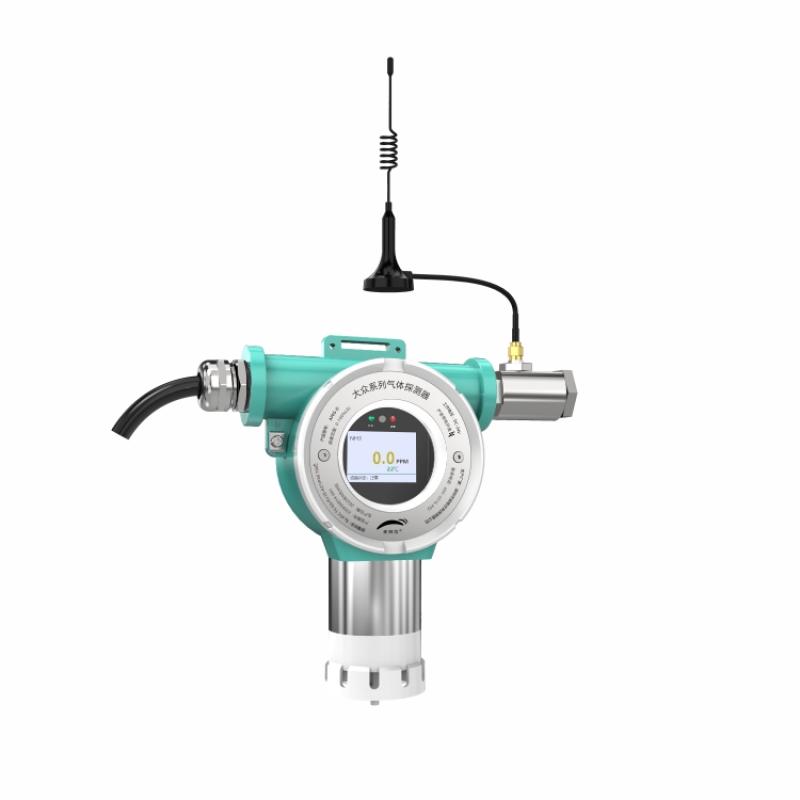

The Empaer Volkswagen Series Fixed Chlorine Detector (4G) is a cost-effective, high-performance, fully functional on-site gas monitoring instrument. It is divided into general-purpose and special-purpose models, and the special-purpose models can be customized according to customer needs. The device converts the detected chlorine concentration into a standard signal and transmits it to the host computer. Built-in relays can control peripheral devices, and support remote monitoring and setting.
1. Star products for more than 10 years of precipitation, Internet of Things products, explosion-proof grade IP66. 2. Appearance design with independent intellectual property rights, high brand recognition. 3. High performance, with reference to a variety of industry standards, widely used and stable. 4. Ultra high definition color display with a viewing distance of 10 meters. 5. A variety of wired and wireless communication output methods, supporting Chinese and English system switching. 6. Remote control, support NB-IoT, 4G or WIFI networking for parameter configuration and program upgrade. 7. Protection functions include intermittent detection and Sensor automatic protection. 8. The black box function records operation, alarm, over-temperature and over-range use. 9. Reminders and alarms are fully functional, such as Sensor expiration, over-concentration, over-temperature, fault and calibration reminders. 10. The operation guidelines are user-friendly to prevent misoperation. 11. Zero automatic correction function. 12. Dual operation mode: button and remote control. 13. Easy to install, support Wall-Mounted, ceiling type, pipeline type, etc. 14. Waterproof, dustproof, anti-static, anti-electromagnetic interference, special anti-cross gas interference.
The detector detects the chlorine concentration on site, converts it into a standard signal (such as 4-20mA, RS-485, etc.), and transmits it to a host computer such as PLC, DCS or alarm control host for display, management and control. Built-in relays can control equipment such as sound and light alarms, fans or solenoid valves in conjunction.
Petroleum and petrochemical, gas, aerospace and military industry, chemical industry, electric power, scientific research institutes, municipal engineering, mining, metallurgy
Measurement equipment CPA, CCCF, Flameproof, Intrinsic Safety (IS), IP66 protection, Mine safety, Coal safety, ROSH, SIL2, CE, ATEX, IEC
1. Select the installation method: Wall-Mounted, Ceiling, Pipeline, etc. 2. Connection power supply: 12~ 36VDC power supply. 3. Configure signal output: Select wired or wireless communication method. 4. Setting parameters: local setting through button or infrared remote control, or remote configuration alarm value and calibration through 4G, NB-IoT, WIFI. 5. Start detection: The device automatically starts gas concentration monitoring. 6. Monitoring and recording: View data through the display screen or host computer, and the black box function automatically records events.
• The working ambient temperature range is -40~ 55 ℃, and the storage temperature is -10~ 30 ℃. • Operating Pressure must be maintained at 86-106KPA. • Humidity range is 10% -95% RH to avoid condensation. The recommended calibration period is one year. • Pay attention to explosion-proof and Protection Rating requirements when installing. • Consult customer service before use to obtain specific Sensor parameters, such as detection principle and resolution. • Avoid use in strong electromagnetic interference environments. • User settings parameters will not be lost during remote upgrades.
[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
