$ 707.00Ex works
With 0~ 100ppm ozone detection range and T90 ≤ national standard Response Time, support remote paraMeter configuration and zero automatic correction, explosion-proof IP66 protection is suitable for harsh industrial environments.
Category : Gas Detector
Brand : Empaer
SKU : NB049653
Service :The delivery and service By NBCLab.Com

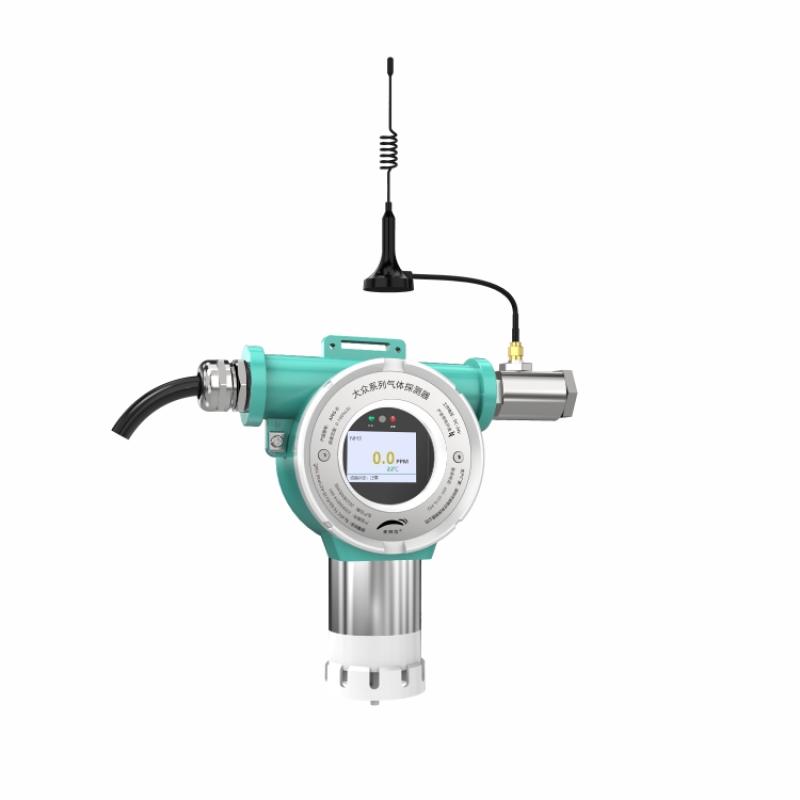

Empaer APEG-D-O3 (4G) Volkswagen series fixed ozone detector is a cost-effective and high-performance on-site gas monitoring instrument. It is divided into general-purpose and special-purpose models. The special-purpose models can be customized according to customer application scenarios. The main function is to convert the detected ozone concentration into a standard signal and transmit it to the host computer (such as PLC, DCS). The built-in relay can control the sound and light alarm, fan and other peripheral equipment, and supports remote monitoring, alarm value setting and calibration.
1. Appearance design with independent intellectual property rights, high brand recognition 2. High performance, with reference to a variety of industry standards, widely used and stable 3. Ultra high definition color display, viewing distance ≥ 10 meters 4. A variety of wired and wireless communication output options 5. Chinese and English bilingual operating system 6. Support NB-IoT, 4G or WIFI remote parameter configuration and program upgrade 7. Intermittent Detection and Sensor Automatic Protection Function (Optional) 8. Black box function, recording operation, alarm, over-temperature and over-range use 9. Complete reminder and alarm functions, including Sensor expiration, super concentration, failure, etc 10. Humanized operation guidelines to prevent misoperation 11. Zero automatic correction function 12. Dual operation mode: button and remote control 13. Easy installation, support wall hanging, ceiling, pipeline and other methods 14. Waterproof, dustproof, anti-static, anti-electromagnetic interference, special anti-cross gas interference 15. Star products for more than 10 years of precipitation, Internet of Things products, explosion-proof grade Exd II C T6, EX TD A21, Protection Rating IP66
The detector detects the ozone gas concentration on site by diffusion (default) or Miscellaneous sampling method, converts the concentration into a standard signal (such as 4-20mA, RS-485, etc.), and transmits it to the PLC, DCS and other host computers for display and management. Built-in relays can control external devices such as sound and light alarms.
Petroleum and petrochemical, gas, aerospace and military industry, chemical industry, electric power, scientific research institutes, municipal engineering, mining, metallurgy
Measurement equipment CPA, CCCF, Flameproof, Intrinsic Safety (IS), IP66 protection, Mine safety, Coal safety, ROSH, SIL2, CE, ATEX, IEC
1. Select the installation method (wall hanging, ceiling, pipeline, etc.) and fix the equipment 2. Connect power supply (12~ 36VDC typical 24VDC) and signal output line 3. Make initial settings through buttons or infrared remote control, including language, alarm value, etc 4. For remote function, configure NB-IoT, 4G or WIFI network connection 5. Perform automatic zero correction or remote calibration 6. Start detection, monitor display and alarm function
• Ambient Temperature between -40~ 55 ℃, Humidity 10% -95% RH without condensation • Avoid use at operating pressure 86-106KPA or extreme storage temperatures (-10-30 ° C) Calibration is carried out regularly, with a recommended cycle of 1 year • Pay attention to cyber security when operating remotely to prevent unauthorized access • When using the remote control operation, it is necessary to align the infrared receiver of the device • Optional functions such as Sensor protection, sound and light alarm require additional configuration • Power off during maintenance to prevent the risk of electric shock • Strictly follow the explosion-proof grade requirements in the explosion-proof environment
[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
