Overview

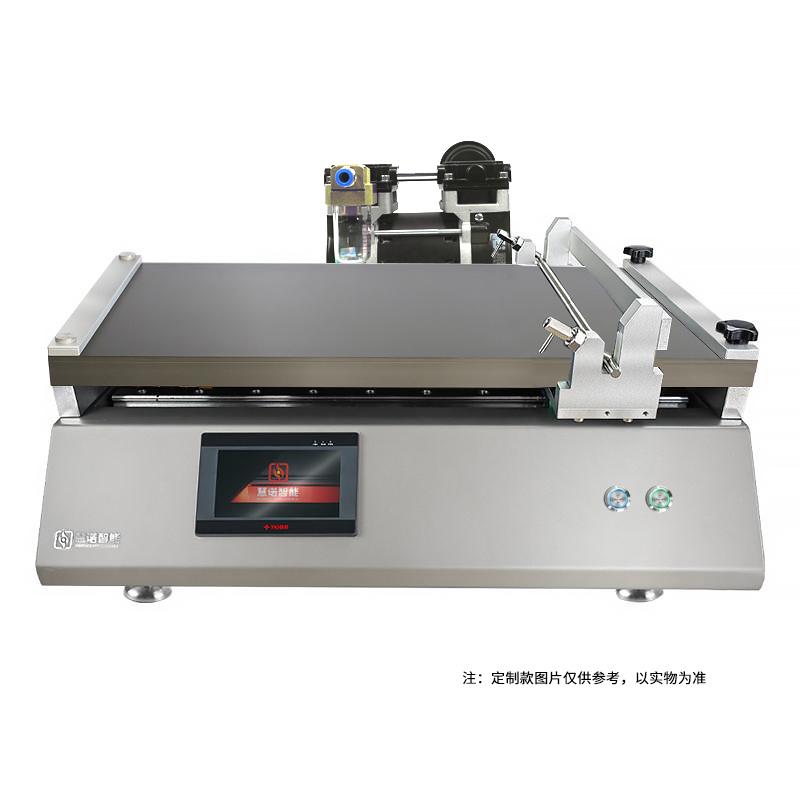

Automatic Film Applicator is a device used for intermediate coating film in laboratory. It replaces manual film and automatically films to improve the accuracy and efficiency of film. The Working Principle of Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and Spreader parameters. This Automatic Film Applicator is a bar type Automatic film applicator with Vacuum chuck function. The new bar installation method greatly improves the efficiency of Spreader, which is easy to clean. It supports speed control and Spreader length adjustment. It is suitable for laboratory High Accuracy automatic film. Moulding proofing is carried out in laboratories such as university research institutes, New material, lithium battery, glue, Resin, etc.
Features
1. Surface hard treatment aluminum alloy countertop, high hardness and wear resistance, the flatness of the countertop is tested by imported High Accuracy instruments
2. Big brand differential regulator, high film thickness control accuracy
3. With heating and Vacuum chuck function
4. High Accuracy film applicator, original imported bar film uniform accuracy
5. Touchscreen control panel, easy to operate
6. Spreader length and Spreader speed can be adjusted freely
Principle
The Working Principle of Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and Spreader parameters. This Automatic Film Applicator adopts the bar coating method, which is driven by a servo motor and combined with a Vacuum chuck to fix the substrate to achieve High Accuracy automatic film.
Applications
Research institutes of universities, New materials, lithium batteries, glues, Resin and other laboratories conduct Moulding proofing, coatings, inks, paints, Stock, lithium batteries, Resin, glues, polymer materials, pharmaceuticals and other film samples
Steps
1. Prepare the substrate and samples
2. Place the substrate on the Spreader table and fix it by Vacuum chuck
3. Set Spreader length and Spreader speed parameters
4. Install bar film applicator
5. Start the device for automatic filming
6. Clean the bar after filming
Notice
• Before use, please ensure that the power supply of the equipment meets the requirements (220V/50HZ or customized voltage)
• Check whether the substrate is firmly fixed before Spreader
• The bar should be cleaned in time after use to maintain accuracy
• Do not touch the running Spreader header during operation
• Regularly check the working status of the Vacuum chuck system
