Overview

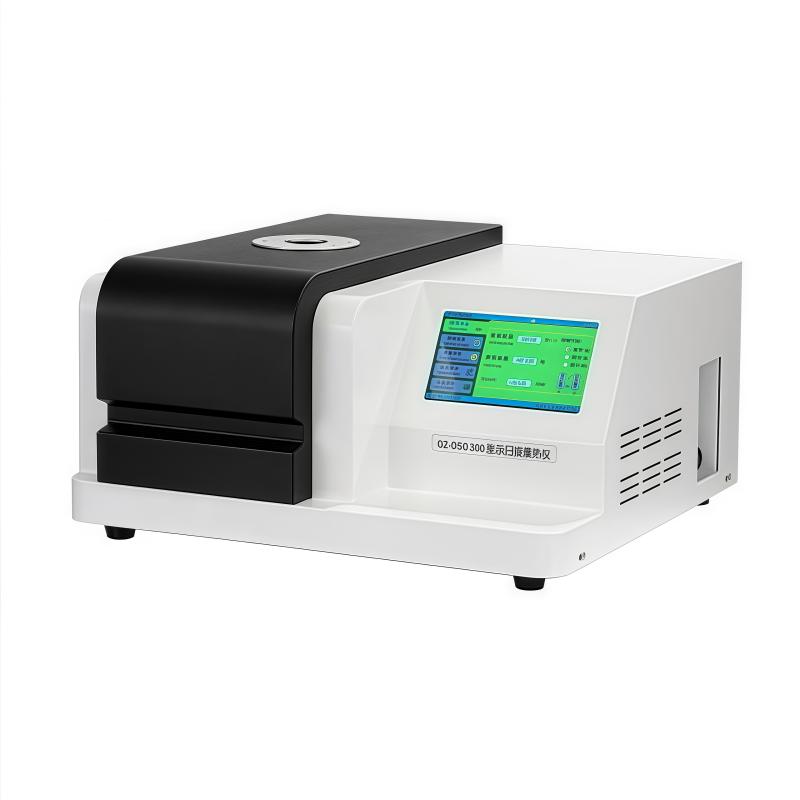

Differential Scanning Calorimeter DZ-DSC300L is a Touchscreen instrument, which can perform Glass transition temperature test, phase transition test, melting and enthalpy test, product stability, oxidation induction period test, specific heat test and other tests. Mainly used in chemical, energy, metallurgy, minerals, polymer materials, metal materials and other industries.
Features
1. Industrial-grade 7-inch Touchscreen, displaying rich information.
2. The new furnace structure can be equipped with a variety of refrigeration devices.
3. USB communication interface, strong versatility, reliable and uninterrupted communication, supports self-recovery connection function.
4. Automatically switch between two channels of air flow, with fast switching speed and short stabilization time. At the same time, it also increases the input of one protective gas.
5. The software is simple and easy to operate.
Principle
The instrument adopts electronic temperature control, PID control combined with PWM pulse width modulation, and adjusts the output through dynamic algorithm to realize adaptive control, adapt to different Operating Environments, and provide better linear control.
Applications
Chemical industry, energy, metallurgy, minerals, polymer materials, metal materials
Standards
GB/T 33466.1-2016、GB/T 40271-2021、GB/T 41928-2022、GB/T 19466.1-2004、GB/T 19466.4-2016、GB/T 19466.5-2022、GB/T 19466.6-2009、GB/T 19466.2-2004、GB/T 19466.3-2004、GB/T 29611-2013
Steps
1. Self-correct the temperature by reference materials (indium, tin) before use.
2. Set the temperature range, heating/cooling rate, thermostatic time and other parameters.
3. Select Linear dispersion scan mode (temperature scan, temperature scan or thermostatic scan).
4. Configure the atmosphere to control the gas flow and pressure.
5. Launch the test and monitor the data.
Notice
• Ensure Power Supply is AC220V/50Hz or custom voltage.
• Gas pressure must not exceed 1MPa (expandable range).
• Pay attention to the error prompt function when entering parameters.
• Check fault self-check function before use.
• Pay attention to the overload protection function to avoid equipment damage.
