Overview

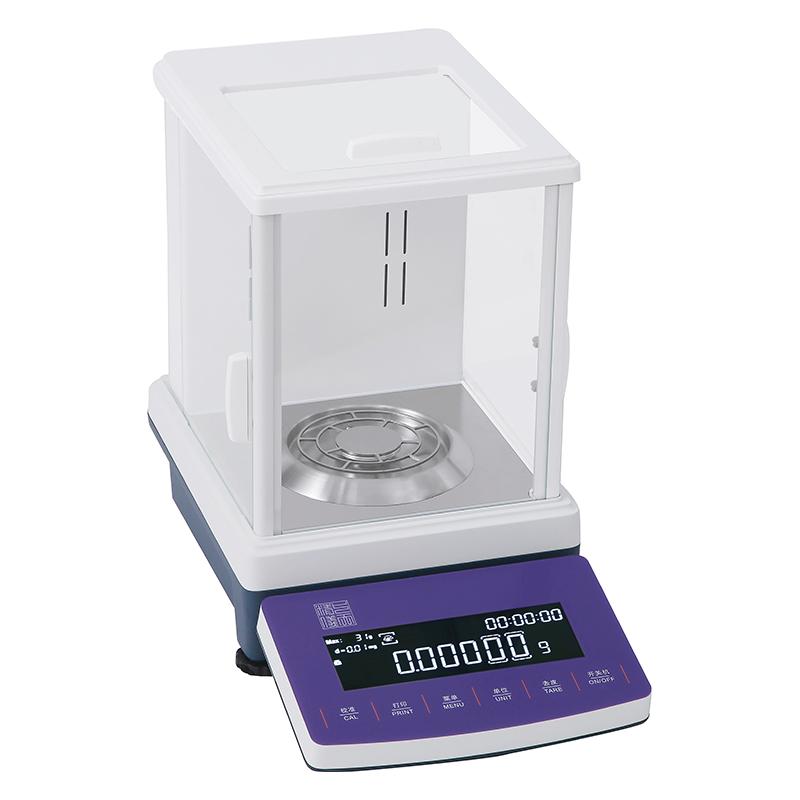

The AB1255C 1/100,000th Balance is a High Accuracy Electronic Balance that uses a new generation of electromagnetic force Sensor technology to provide stable and reliable weighing results. The model has a capacity of 120g/51g and a readability accuracy of 0.1mg/0.01mg. Equipped with a fully automatic internal calibrating function, it is suitable for environments such as laboratories that require High Accuracy weighing.
Features
1. New Generation High Accuracy, High Resolution Electromagnetic Force Sensor, Providing Stable and Reliable Weighing Results
2. Ultra-clear OLED backlight stretchable LCD screen, supports operation and use with laboratory gloves
3. Fully automatic internal calibrating for external calibrating or time and temperature triggering (AB-C series)
4. A variety of weighing units: mg/g/ct/oz, etc., can be customized
5. Draft Shield eliminates static electricity design to ensure the accuracy of weighing
6. Lower hook design to meet users' special application needs
7. Standard RS232 and USB interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel
8. Built-in date and time display function to meet traceability and compliance requirements
9. Built-in dual systems to ensure normal use in emergencies
10. Power supply: 110V-240V, 50Hz/60Hz
Principle
AB1255C Balance uses electromagnetic force Sensor technology to achieve High Accuracy weighing through the principle of electromagnetic force equilibrating. When the object is placed on the pan, the Sensor generates the corresponding electromagnetic force to equilibrate the gravity of the object, and accurately calculates the mass of the object by measuring the magnitude of the electromagnetic force.
Steps
1. Place Balance on a Stable Workbench
2. Connect Power Adapter to 110V-240V Power Supply
3. Turn on and warm up to a stable state
4. Select the weighing unit as required
5. Place items to be weighed in the center of the pan
6. Read the weighing results on the display
7. Optional data transfer to computer via RS232 or USB interface
Notice
• Balance in a stable, vibration-free environment
• Avoid operating in strong airflow or static environment
Periodically calibrated to ensure measurement accuracy
• Power frequency meets 110V-240V requirements before use
• Please use a soft dry cloth when cleaning and avoid using corrosive cleaners
