Overview

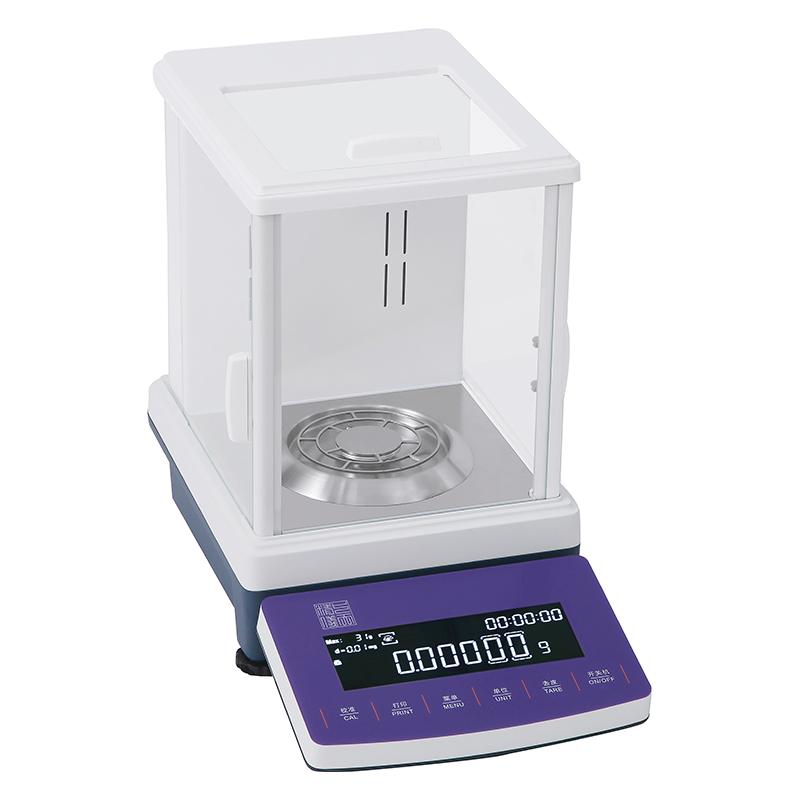

The AB1285C 1/100,000 Balance is a High Accuracy Electronic Balance that uses a new generation of electromagnetic force Sensor technology to provide stable and reliable weighing results. The model has a capacity of 120g/81g and a readability accuracy of 0.1mg/0.01mg. It is equipped with a fully automatic internal calibrating function to ensure weighing accuracy.
Features
1. New Generation High Accuracy, High resolution Electromagnetic Force Sensor
2. Ultra-clear OLED backlight stretchable LCD screen, supports operation with laboratory gloves
3. Externally calibrated or fully automatic internal calibrating triggered by time and temperature
4. A variety of weighing units: mg/g/ct/oz, etc., can be customized
5. Draft Shield Electrostatic Design
6. Lower hook design to meet special application requirements
7. Standard RS232 and USB interface, optional PC-STWC function to transfer weighing data directly to Excel and other applications
8. Built-in date and time display function
9. Built-in dual systems to ensure normal use in emergencies
10. Power supply: 110V-240V, 50Hz/60Hz
Principle
The Balance uses a new generation of High Accuracy Electromagnetic Force Sensor technology to achieve accurate weighing through the principle of electromagnetic force equilibrating. The Sensor converts the weight into an electrical signal and displays the results on an OLED display after high resolution processing. The fully automatic internal calibrating system automatically triggers through time or temperature changes to ensure weighing accuracy.
Applications
Laboratories, scientific research institutions, pharmaceutical industry, chemical industry, food testing, jewelry weighing, educational institutions
Steps
1. Place Balance on a Stable Workbench
2. Connect the power supply (110V-240V, 50Hz/60Hz)
3. Boot warm-up
4. Select the weighing unit as required
5. Place the sample for weighing
6. Read the weighing results on the OLED display
7. Data can be transferred to the computer via RS232 or USB interface
Notice
• Balance in a stable, vibration-free working environment
• Power frequency meets requirements before use (110V-240V)
When weighing, close the Draft Shield to ensure accuracy
Periodically calibrated to ensure measurement accuracy
• Avoid use in strong electromagnetic interference environments
• When cleaning, please use a soft dry cloth to wipe and avoid the use of chemical solvents
