Overview

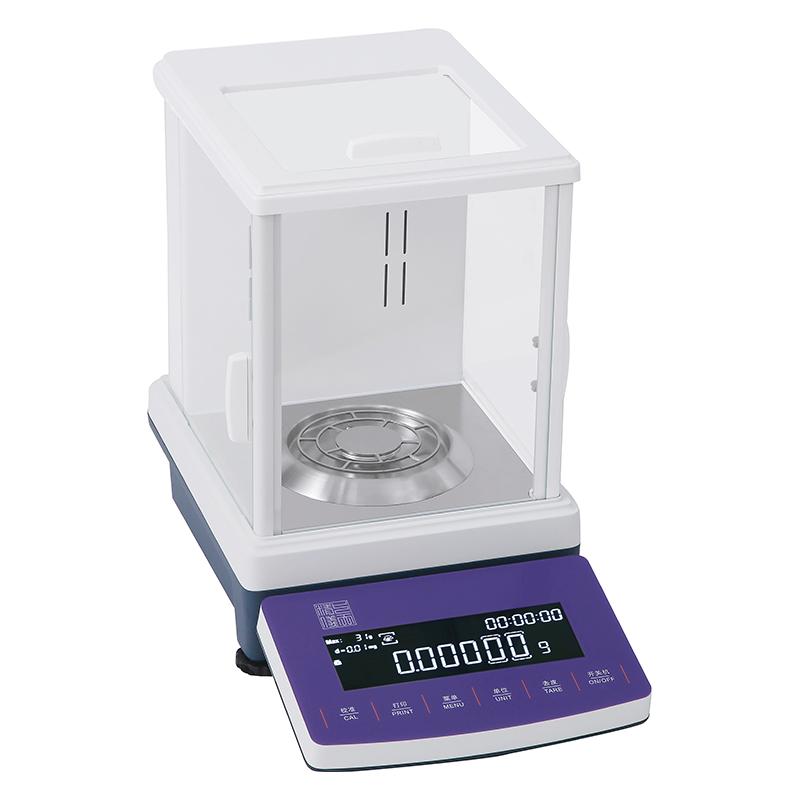

The AB2255C 1/100,000th Balance is a High Accuracy Electronic Balance that uses a new generation of electromagnetic force Sensor technology to provide stable and reliable weighing results. The product has a fully automatic internal calibrating function, supports a variety of weighing units, and is equipped with a Draft Shield static elimination design to ensure weighing accuracy.
Features
1. New Generation High Accuracy, High Resolution Electromagnetic Force Sensor, Providing Stable and Reliable Weighing Results
2. Ultra-clear OLED backlight stretchable LCD screen, supports operation and use with laboratory gloves
3. Fully automatic internal calibrating for external calibrating or time and temperature triggering (AB-C series)
4. A variety of weighing units: mg/g/ct/oz, etc., can be customized
5. Draft Shield eliminates static electricity design to ensure the accuracy of weighing
6. Lower hook design to meet users' special application needs
7. Standard RS232 and USB interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel
8. Built-in date and time display function to meet traceability and compliance requirements
9. Built-in dual systems to ensure normal use in emergencies
10. Power supply: 110V-240V, 50Hz/60Hz
Principle
AB2255C 1/100,000 Balance uses electromagnetic force Sensor technology to achieve High Accuracy weighing through the principle of electromagnetic force equilibrating. When the item is placed on the pan, the Sensor generates the corresponding electromagnetic force to equilibrate the gravity of the item, so as to accurately measure mass.
Steps
1. Place the Balance on a smooth table and power it on
2. Wait for the system self-test to complete after booting.
3. Select the weighing unit as required
4. Place items to be weighed gently in the center of the pan
5. Wait for the displayed value to stabilize and read the result
6. Clean the pan and turn off the power in time after use
Notice
• Please place the Balance on a stable, vibration-free countertop for use
• Avoid use in environments with strong airflow or drastic temperature changes
• Balance is preheated and calibrated before weighing
• Capacity 220g/51g should not be exceeded
• Keep the pan clean and avoid contact with corrosive substances
Periodically calibrated to ensure measurement accuracy
• Turn off the power supply in time after use to prolong the service life
