Overview

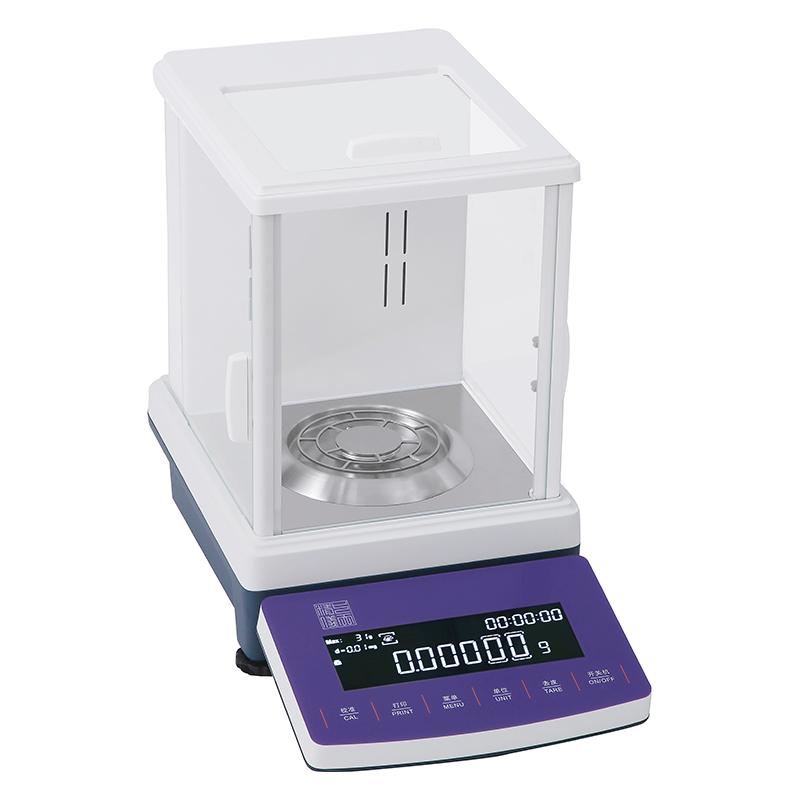

The AB105C 1/100,000th Balance is a High Accuracy Electronic Balance that uses a new generation of electromagnetic force Sensor technology to provide stable and reliable weighing results. The product has a fully automatic internal calibrating function with a Capacity of 100g and a readability accuracy of 0.01mg. It is suitable for environments such as laboratories that require accurate measurement.
Features
1. New Generation High Accuracy, High Resolution Electromagnetic Force Sensor, Providing Stable and Reliable Weighing Results
2. Ultra-clear OLED backlight stretchable LCD screen, supports operation and use with laboratory gloves
3. Fully automatic internal calibrating for external calibrating or time and temperature triggering (AB-C series)
4. A variety of weighing units: mg/g/ct/oz, etc., can be customized
5. Draft Shield eliminates static electricity design to ensure the accuracy of weighing
6. Lower hook design to meet users' special application needs
7. Standard RS232 and USB interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel
8. Built-in date and time display function to meet traceability and compliance requirements
9. Built-in dual systems to ensure normal use in emergencies
10. Power supply: 110V-240V, 50Hz/60Hz
Principle
AB105C Balance is based on electromagnetic force Sensor technology, which detects the mass of the weighed object through the High Accuracy Sensor and converts the signal into a digital display. The fully automatic internal calibrating function is automatically triggered by time or temperature changes to ensure measurement accuracy.
Applications
Laboratories, scientific research institutions, pharmaceutical industry, chemical analysis, quality control
Steps
1. Place Balance on a Stable Level Table
2. Connect the power supply (110V-240V, 50Hz/60Hz)
3. Turn it on and warm up, and wait for the system self-test to complete.
4. Select the weighing unit as required (mg/g/ct/oz, etc.)
5. Place the sample for weighing
6. Read the measurement results on the display
7. Optional data transfer to computer via RS232 or USB interface
Notice
• Ensure that Balance is placed on a stable, horizontal countertop
• Avoid operating in strong airflow or vibration environments
Periodically calibrated to ensure measurement accuracy
• Use Draft Shield to reduce static interference
• Power frequency range (110V-240V)
• In case of emergency, the built-in dual system can be used to ensure normal use
