Overview

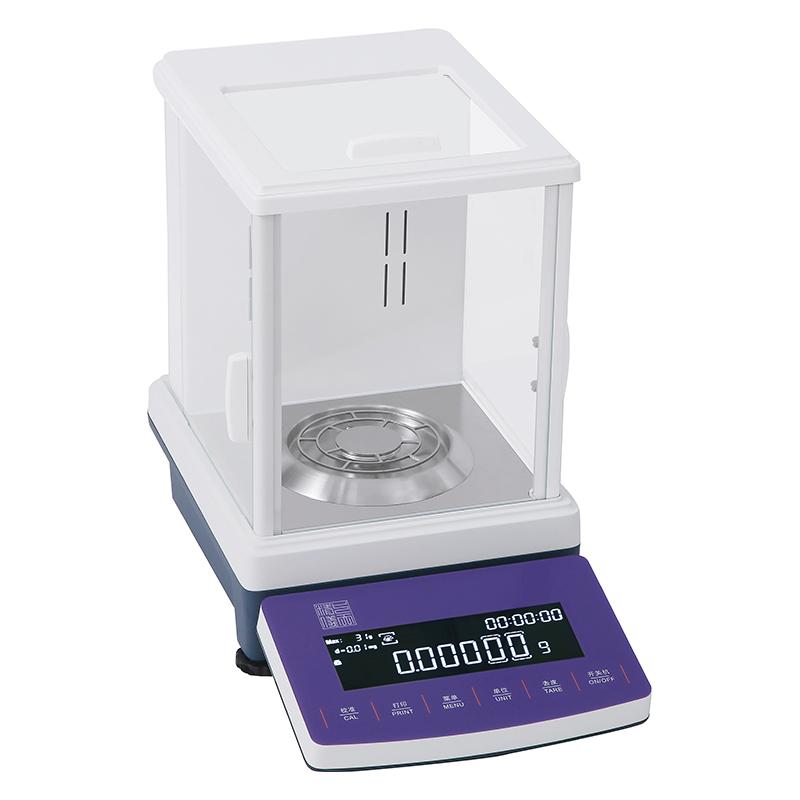

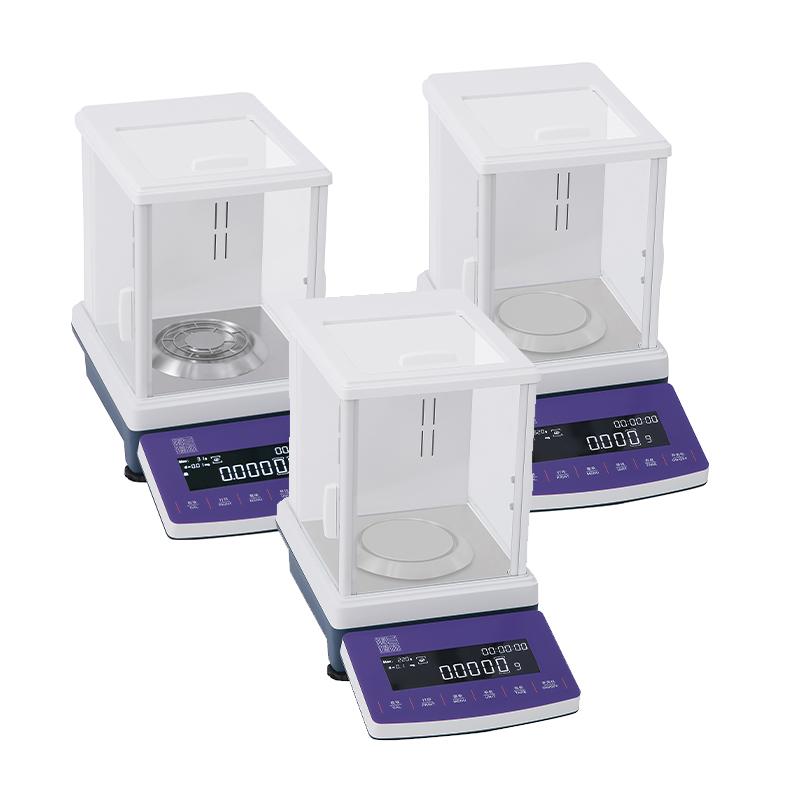

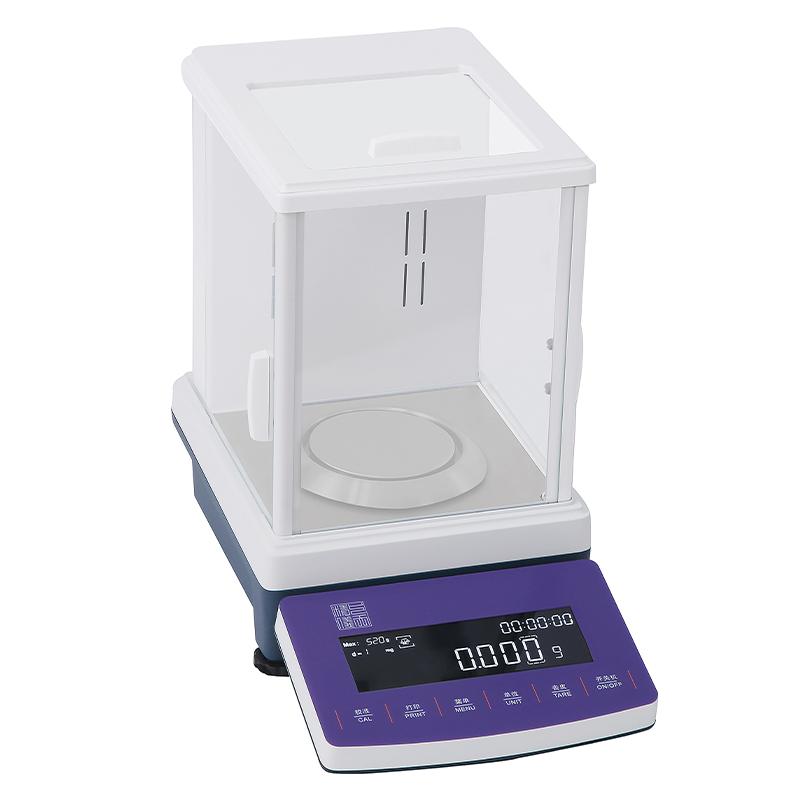

The AB125C 1/100,000 Balance is a High Accuracy Electronic Balance that uses a new generation of electromagnetic force Sensor technology to provide stable and reliable weighing results. The model has a capacity of 120g and readability of 0.01mg. It has a fully automatic internal calibrating function to ensure the accuracy and traceability of weighing data.
Features
1. New Generation High Accuracy, High Resolution Electromagnetic Force Sensor, Providing Stable and Reliable Weighing Results
2. Ultra-clear OLED backlight stretchable LCD screen, supports operation and use with laboratory gloves
3. Externally calibrated or fully automatic internal calibrating triggered by time and temperature
4. A variety of weighing units: mg/g/ct/oz, etc., can be customized
5. Draft Shield eliminates static electricity design to ensure the accuracy of weighing
6. Lower hook design to meet users' special application needs
7. Standard RS232 and USB interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel
8. Built-in date and time display function to meet traceability and compliance requirements
9. Built-in dual systems to ensure normal use in emergencies
10. Power supply: 110V-240V, 50Hz/60Hz
Principle
The Balance uses Electromagnetic Force Sensor technology to achieve High Accuracy Weighing through the principle of electromagnetic force equilibrating. When the item is placed on the pan, the Sensor generates the corresponding electromagnetic force to equilibrate the item weight, and converts the weight signal into a digital display through a sophisticated electronic system.
Steps
1. Place Balance on a Stable Workbench
2. Connect Power Adapter to 110V-240V Power Supply
3. Turn it on and warm up, and wait for the system self-test to complete.
4. Fully automatic internal calibrating as required
5. Place the test item in the center of the pan
6. Read the weighing results on the display
7. Data can be transferred to the computer via RS232 or USB interface
Notice
• Balance in a stable, vibration-free environment
Avoid operating in a strong electromagnetic interference environment
• Preheat and calibrate before use
• Weighing items must not exceed 120g Capacity
• Keep the pan clean to avoid contamination affecting accuracy
Periodically calibrated to ensure measurement accuracy
