Overview

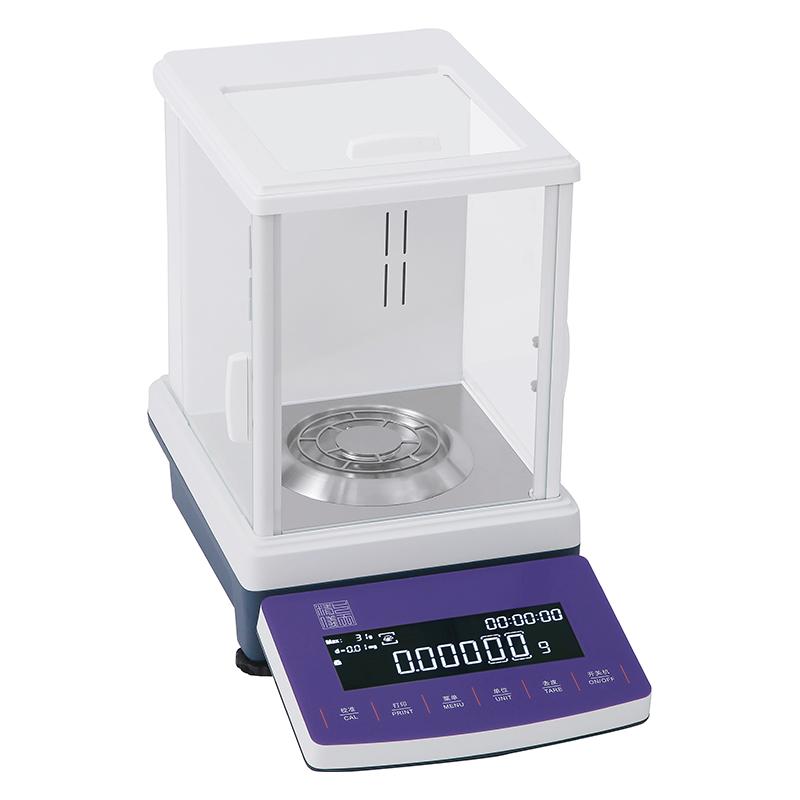

AB1235 1/100,000 Balance is a High Accuracy Electronic Balance that uses a new generation of electromagnetic force Sensor technology to provide stable and reliable weighing results. This model has external calibrating function, Capacity 120g/31g, readability accuracy 0.1mg/0.01mg, suitable for laboratories and other occasions that require accurate weighing.
Features
1. New Generation High Accuracy, High Resolution Electromagnetic Force Sensor, Providing Stable and Reliable Weighing Results
2. Ultra-clear OLED backlight stretchable LCD screen, supports operation and use with laboratory gloves
3. External calibrating function
4. A variety of weighing units: mg/g/ct/oz, etc., can be customized
5. Draft Shield eliminates static electricity design to ensure the accuracy of weighing
6. Lower hook design to meet users' special application needs
7. Standard RS232 and USB interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel
8. Built-in date and time display function to meet traceability and compliance requirements
9. Built-in dual systems to ensure normal use in emergencies
10. Power supply: 110V-240V, 50Hz/60Hz
Principle
AB1235 1/100,000 Balance uses electromagnetic force Sensor technology to achieve High Accuracy weighing through the principle of electromagnetic force equilibrating. When the item is placed on the pan, the Sensor generates the corresponding electromagnetic force to equilibrate the item weight, and accurately measure and display the weight value through the electronic system.
Applications
Laboratories, scientific research institutions, pharmaceutical industry, chemical industry, food testing, jewelry weighing
Steps
1. Place Balance on a Stable Workbench
2. Connect Power Adapter to 110V-240V Power Supply
3. Turn on and warm up to a stable state
4. External calibrating as required
5. Place the item to be tested in the center of the pan
6. Read the weight value on the display
7. Data can be transferred to the computer via RS232 or USB interface
Notice
• Balance in a stable, vibration-free environment
Avoid operating in a strong electromagnetic interference environment
• Adequate preheating before use to ensure accuracy
Periodic external calibration to ensure measurement accuracy
• Please use a soft dry cloth when cleaning to avoid liquids entering the inside of the instrument
• Disconnect the power supply when not in use for a long time
