Overview

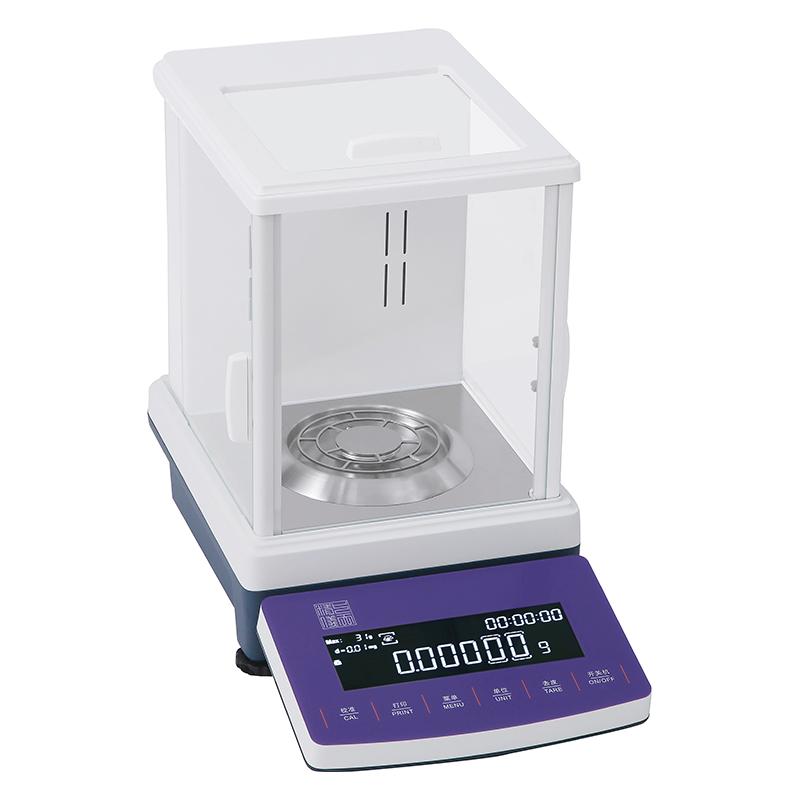

AB1285 1/100,000 Balance is a High Accuracy Electronic Balance that uses a new generation of electromagnetic force Sensor technology to provide stable and reliable weighing results. The model has a Capacity of 120g/81g and a readability accuracy of 0.1mg/0.01mg, which is suitable for laboratories and other occasions that require accurate weighing.
Features
1. New Generation High Accuracy, High Resolution Electromagnetic Force Sensor, Providing Stable and Reliable Weighing Results
2. Ultra-clear OLED backlight stretchable LCD screen, supports operation and use with laboratory gloves
3. External calibrating function
4. A variety of weighing units: mg/g/ct/oz, etc., can be customized
5. Draft Shield eliminates static electricity design to ensure the accuracy of weighing
6. Lower hook design to meet users' special application needs
7. Standard RS232 and USB interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel
8. Built-in date and time display function to meet traceability and compliance requirements
9. Built-in dual systems to ensure normal use in emergencies
10. Power supply: 110V-240V, 50Hz/60Hz
Principle
The Balance uses a new generation of Electromagnetic Force Sensor technology to achieve accurate weighing through the principle of electromagnetic force equilibrating. When the item is placed on the pan, the Sensor generates the corresponding electromagnetic force to equilibrate the item weight and displays the weight value on the OLED display through a high-resolution processing system.
Steps
1. Place Balance on a Smooth Work Surface
2. Connect Power Adapter to 110V-240V Power Supply
3. Turn it on and warm up and wait for the system to stabilize.
4. External calibrating as required
5. Place the item to be weighed in the center of the pan
6. Read the weight value on the display
7. Data can be transferred to the computer via RS232 or USB interface
Notice
• Please place the Balance on a stable, vibration-free work surface
• Avoid operating in strong airflow or static environment
• Preheating before use to ensure measurement accuracy
Periodically calibrated to ensure accuracy
• Use a soft dry cloth when cleaning and avoid using chemical solvents
• Please disconnect the power connection when not in use for a long time
