Overview

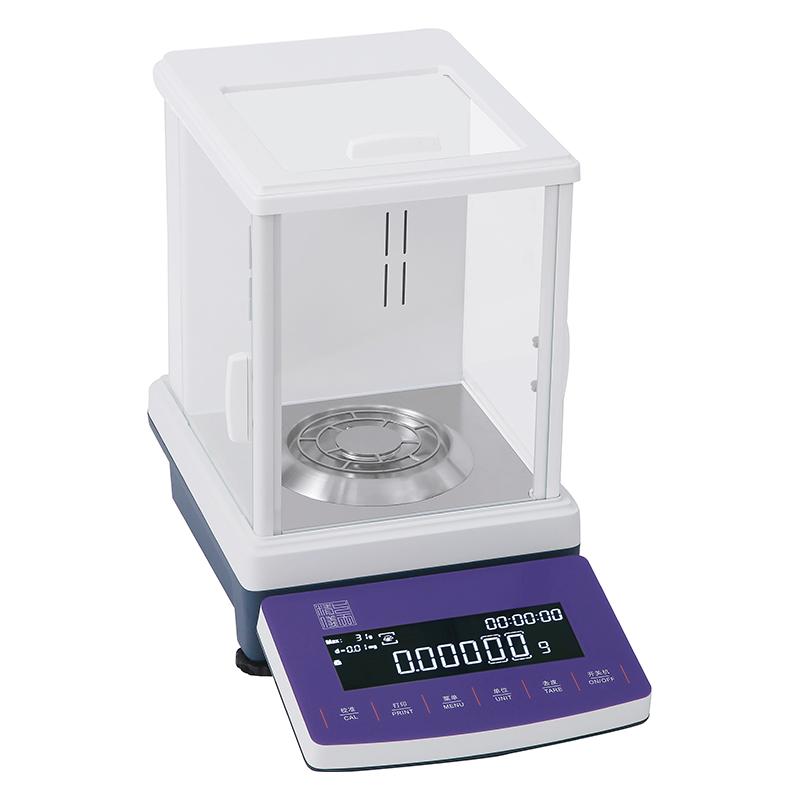

AB2255 1/100,000 Balance is a High Accuracy Electronic Balance that uses a new generation of electromagnetic force Sensor technology to provide stable and reliable weighing results. The model has a Capacity of 220g/51g and a readability accuracy of 0.1mg/0.01mg. It is suitable for environments such as laboratories that require accurate weighing.
Features
1. New Generation High Accuracy, High Resolution Electromagnetic Force Sensor, Providing Stable and Reliable Weighing Results
2. Ultra-clear OLED backlight stretchable LCD screen, supports operation and use with laboratory gloves
3. External calibrating function
4. A variety of weighing units: mg/g/ct/oz, etc., can be customized
5. Draft Shield eliminates static electricity design to ensure the accuracy of weighing
6. Lower hook design to meet users' special application needs
7. Standard RS232 and USB interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel
8. Built-in date and time display function to meet traceability and compliance requirements
9. Built-in dual systems to ensure normal use in emergencies
10. Power supply: 110V-240V, 50Hz/60Hz
Principle
AB2255 1/100,000 Balance uses electromagnetic force Sensor technology to achieve accurate weighing through the principle of electromagnetic force equilibrating. When the item is placed on the pan, the Sensor generates the corresponding electromagnetic force to equilibrate the item weight and converts it into a digital signal display through a high-resolution measurement system.
Applications
Laboratories, scientific research institutions, pharmaceutical, chemical, food testing, mass inspection
Steps
1. Place Balance on a Stable Workbench
2. Connect Power Adapter (110V-240V, 50Hz/60Hz)
3. Boot warm-up
4. External calibrating as required
5. Place items to be weighed on the pan
6. Read the weighing results on the display
7. Data can be transferred to the computer via RS232 or USB interface
Notice
• Balance in a stable, vibration-free environment
Avoid operating in a strong electromagnetic interference environment
• Preheat and calibrate before use
• Turn off Draft Shield when weighing to ensure accuracy
Regular cleaning of pan and Draft Shield
• Do not exceed Capacity Range 220g/51g
• Power frequency must be in the range of 110V-240V
